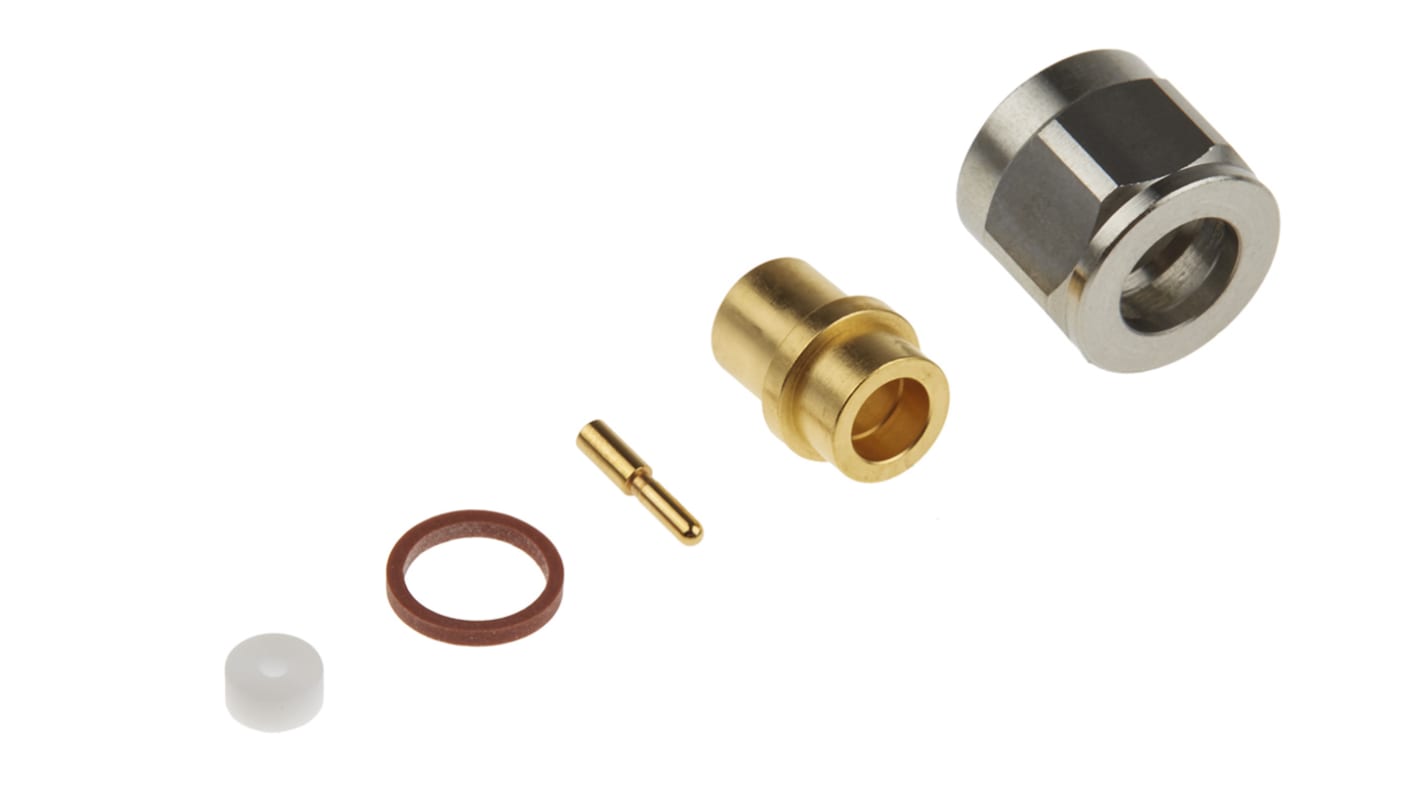

Cinch SMK Series, Plug Cable Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 174-9967
- Mfr. Part No.:
- 145-0694-002
- Brand:
- Cinch
- RS Stock No.:
- 174-9967
- Mfr. Part No.:
- 145-0694-002
- Brand:
- Cinch
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cinch | |
| Gender | Male | |
| Coaxial Connector Type | SMA Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Cable Type | RG402 | |
| Bulkhead | No | |
| Operating Frequency | 0 to 40GHz | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +165°C | |
| Series | SMK | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Series Number | 145 | |
| Mating Type | Quick Connect | |
| Select all | ||
|---|---|---|
Brand Cinch | ||
Gender Male | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type RG402 | ||
Bulkhead No | ||
Operating Frequency 0 to 40GHz | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +165°C | ||
Series SMK | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Series Number 145 | ||
Mating Type Quick Connect | ||
- COO (Country of Origin):
- US
Cinch SMA Connector
The Cinch SMK145 series male cable mount connector with quick connect connection. This straight connector provides an excellent solution for demanding applications that require high-frequency transmission. It has gold-plated beryllium copper contacts. It has a voltage rating of 335VAC.
Features and Benefits
• Impedance is 50ohm
• Mating interface control provides consistent electrical performance
• Operating frequency ranges between 0 and 40GHz
• Operating temperature ranges between -65°C and 165°C
• Support RG402 cable type
• Unique three-slot construction for female contact
• Mating interface control provides consistent electrical performance
• Operating frequency ranges between 0 and 40GHz
• Operating temperature ranges between -65°C and 165°C
• Support RG402 cable type
• Unique three-slot construction for female contact
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
