RS PRO, Plug Cable Mount 7/16 Connector, 50Ω, Solder Termination, Straight Body

View all Coaxial Connectors
Unavailable
RS will no longer stock this product.
Coaxial-Cable
Coaxial Cable
Don't forget your Coaxial Cable!
Shop Coaxial Cable now
RS Stock No.:
170-6993
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Gender

Male

Coaxial Connector Type

7/16 Connector

Mounting Type

Cable Mount

Impedance

50Ω

Termination Method

Solder

Body Orientation

Straight

Size

Standard

Operating Frequency

7.5GHz

Minimum Operating Temperature

-40°C

Body Plating

Bronze

Maximum Operating Temperature

+85°C

Contact Material

Beryllium Copper

Contact Plating

Silver

Mating Type

Threaded

COO (Country of Origin):
TW

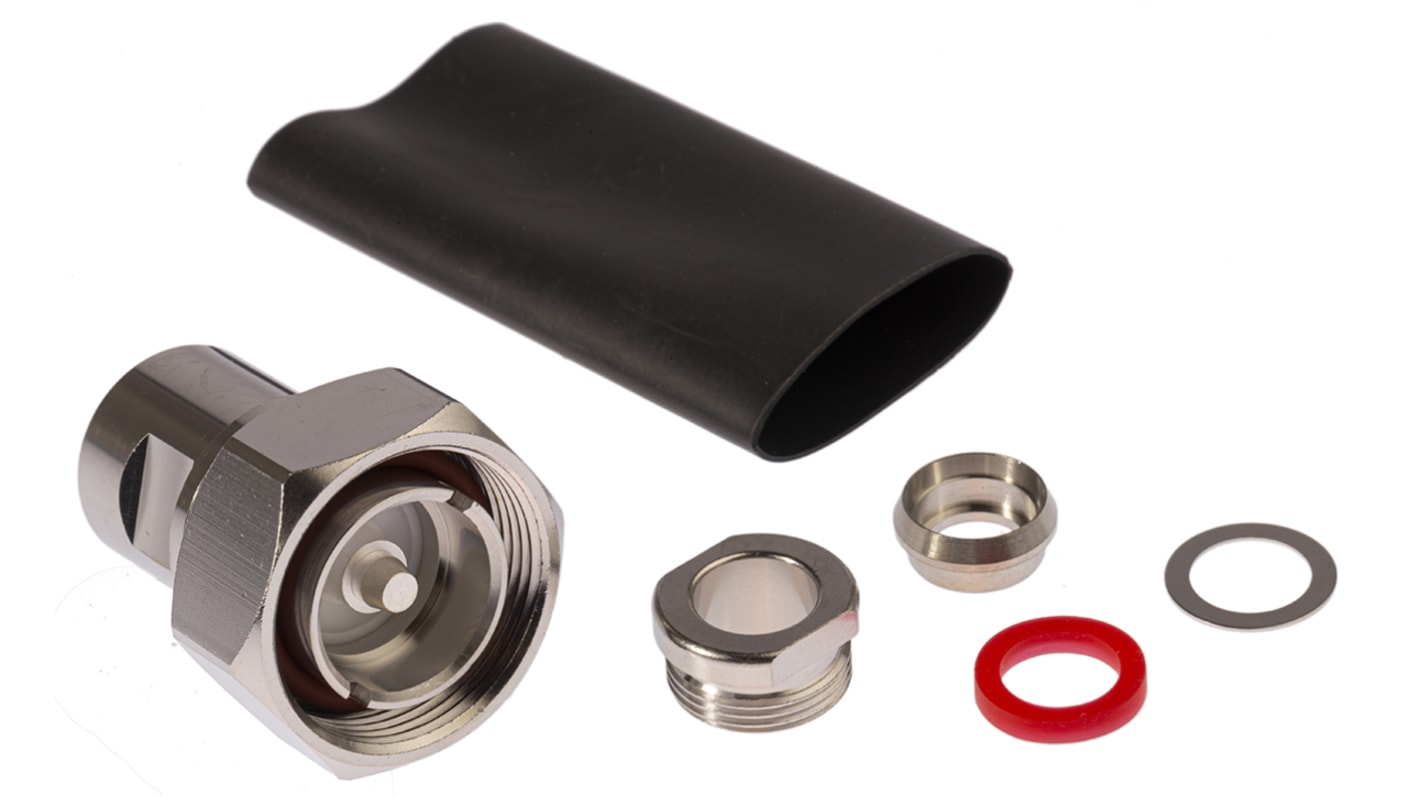

RS PRO Cable Mount 7/16 Connector


The RS PRO 7/16 connector is a low PIM straight plug, cable mount connector used for cable application. This low PIM connector is ideal where PIM (Passive Inter-modulation Distortion) is a concern to the design work. The suitable cables are LMR400 and BELDEN 9913 for this connector. This connector is designed with low loss construction and has waterproof protection. The housing is made of bronze plating and the contact material is beryllium copper with silver plating.

Features and Benefits


• Impedance is 50ohm
• Operating frequency is DC-7.5GHz
• Operating temperature ranges between -40°C and 85°C
• Solder termination
• V. S. W. R: 1.1 MAX@3 GHz
• Wireless/ Wi-Fi/ GSM base station
