RS PRO Female, Male Flange Mount N Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 170-6989
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 170-6989
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female, Male | |
| Coaxial Connector Type | N Connector | |
| Mounting Type | Flange Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Size | Standard | |
| Operating Frequency | 11GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Bronze | |
| Maximum Operating Temperature | +165°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Mating Type | Threaded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female, Male | ||
Coaxial Connector Type N Connector | ||
Mounting Type Flange Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Standard | ||
Operating Frequency 11GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Bronze | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- TW

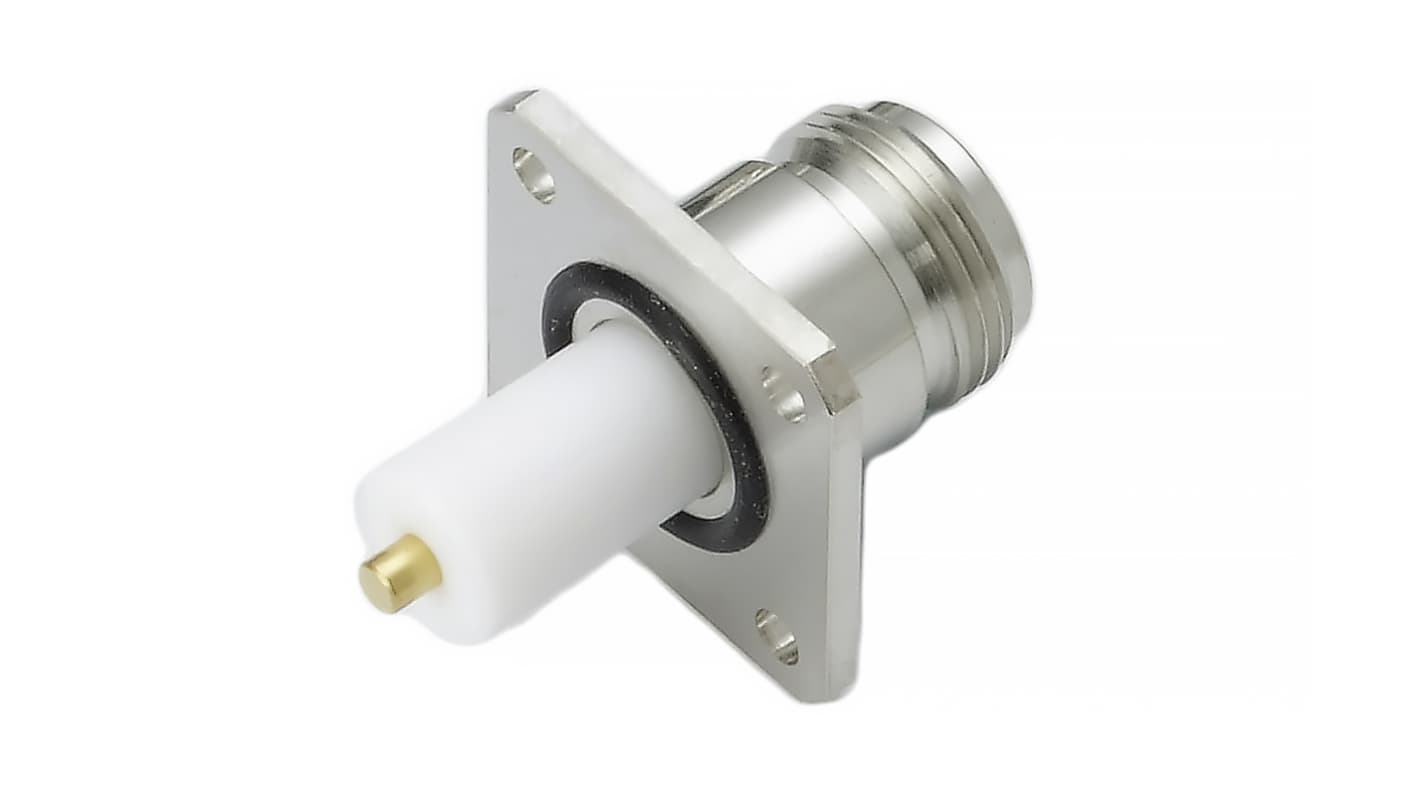

RS Pro Flange Mount N Type Connector
The RS Pro straight flange mount N-type, female connector is a low PIM straight N jack receptacle connector. It will be horizontal to the PC board after soldering on it because of its panel mount type. There are 4 holes on 1.000in square flange for fixing on the housing. The low PIM connector series is ideal where PIM (Passive Inter-modulation Distortion) is a concern for the design work. It is used in connecting communication cables.
Features and Benefits
• Beryllium copper contact
• Bronze body plating
• Gold contact plating
• Impedance is 50ohm
• Low loss construction
• Operating frequency is 11GHz
• Operating temperature ranges between -65°C and 165°C
• Solder termination method
• Threaded mating
• Waterproof
• Bronze body plating
• Gold contact plating
• Impedance is 50ohm
• Low loss construction
• Operating frequency is 11GHz
• Operating temperature ranges between -65°C and 165°C
• Solder termination method
• Threaded mating
• Waterproof
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
