RS PRO, Plug Cable Mount N Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 170-6986
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 170-6986
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | N Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Size | Standard | |
| Operating Frequency | 11GHz | |
| Body Plating | Bronze | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Mating Type | Threaded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type N Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Standard | ||
Operating Frequency 11GHz | ||
Body Plating Bronze | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- TW

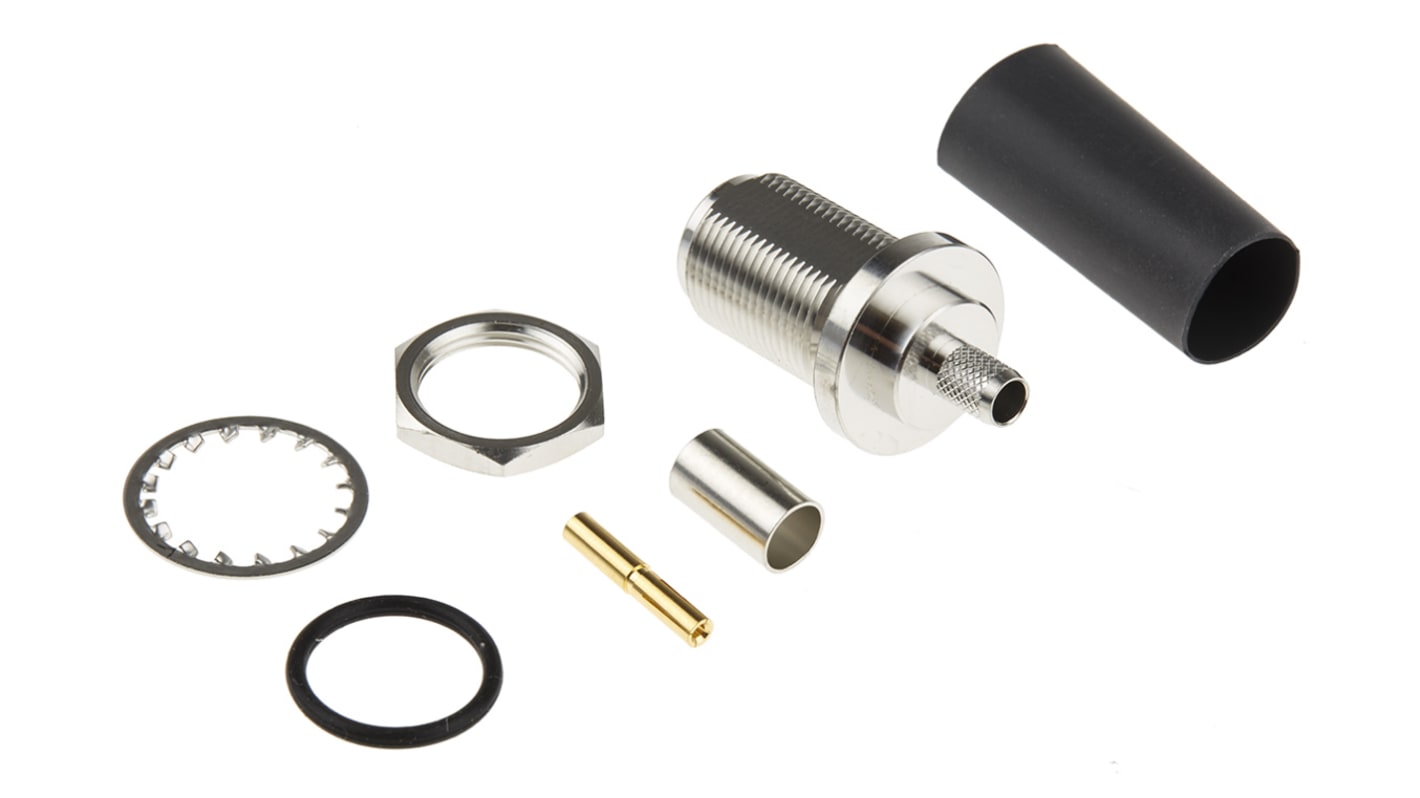

RS Pro Cable Mount N Type Connector
The RS Pro straight cable mount N-type, male connector has N-Jack for flexible cable operation. The centre contact can be assembled with the cable inner conductor by soldering and the ferrule can be crimped on the cable for transmission and fixing. The low PIM connector series is ideal where PIM (Passive Inter-modulation Distortion) is a concern for the design work. This connector also has the bulkhead function, the applied panel thickness is 0.327in. It is used with RG 8X and LMR240 cables.
Features and Benefits
• Beryllium copper contact
• Bronze body plating
• Gold contact plating
• Impedance is 50ohm
• Low loss construction
• Operating frequency is 11GHz
• Operating temperature ranges between -40°C and 85°C
• Solder termination method
• Threaded mating
• Waterproof
• Bronze body plating
• Gold contact plating
• Impedance is 50ohm
• Low loss construction
• Operating frequency is 11GHz
• Operating temperature ranges between -40°C and 85°C
• Solder termination method
• Threaded mating
• Waterproof
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
