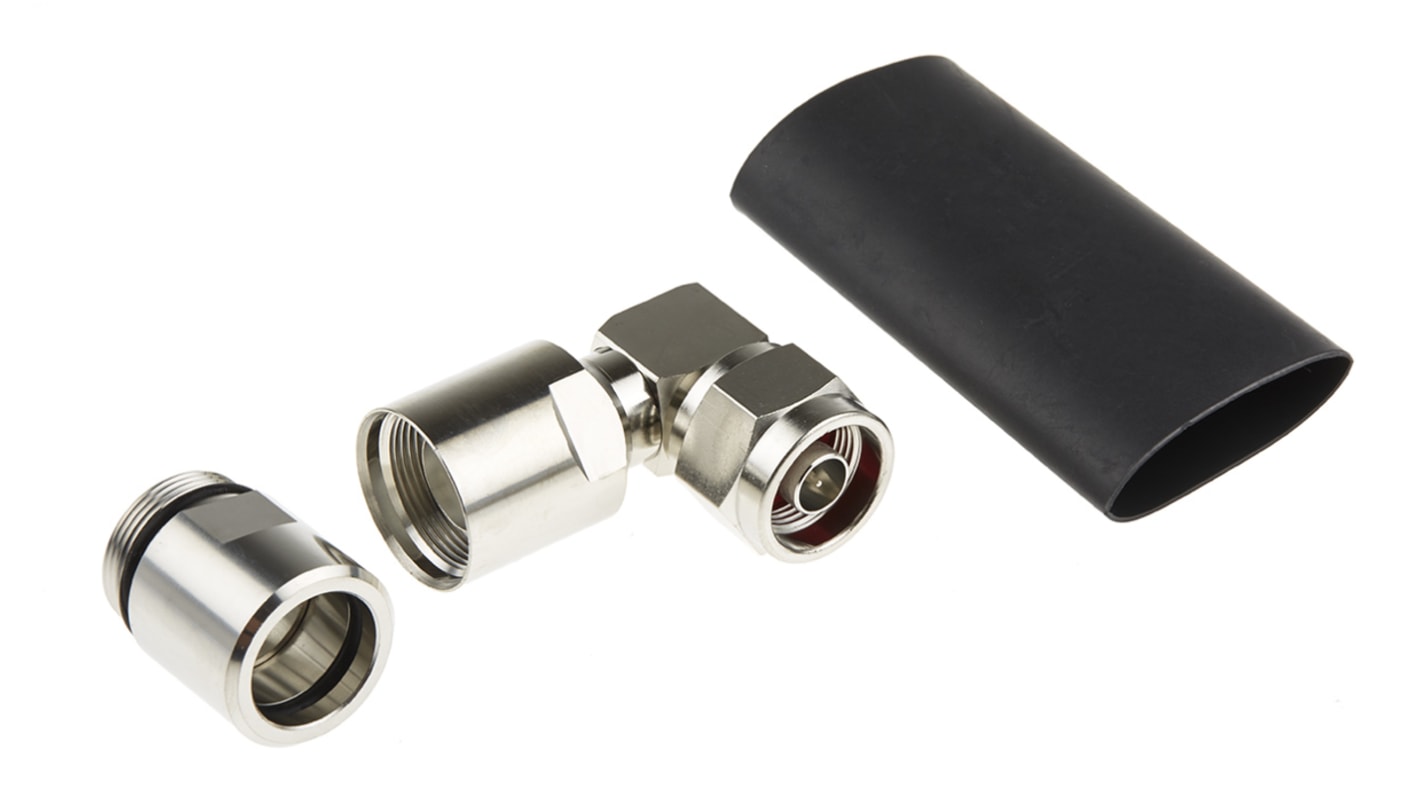

RS PRO, Plug Cable Mount N Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 170-6981
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 170-6981
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | N Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Right Angle | |
| Size | Standard | |
| Operating Frequency | 3GHz | |
| Minimum Operating Temperature | -40°C | |
| Body Plating | Bronze | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Beryllium Copper, Brass | |
| Contact Plating | Silver | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type N Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Size Standard | ||
Operating Frequency 3GHz | ||
Minimum Operating Temperature -40°C | ||
Body Plating Bronze | ||
Maximum Operating Temperature +85°C | ||
Contact Material Beryllium Copper, Brass | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- TW
RS Pro Cable Mount N Type Connector
The RS Pro right-angled, cable mount N-type, male connector is used for annular cable. The Low PIM connector series is ideal where PIM (Passive Inter-modulation Distortion) is a concern for the design work. The centre contact has to be assembled with the cable inner conductor by soldering and the nut can be clamped on the cable for transmission and fixing.
Features and Benefits
• Beryllium copper contact
• Bronze body
• Impedance is 50ohm
• Low loss connection
• Operating frequency is 3GHz
• Operating temperature ranges between -40°C and 85°C
• Silver contact plating
• Solder termination method
• Threaded mating
• Waterproof
• Bronze body
• Impedance is 50ohm
• Low loss connection
• Operating frequency is 3GHz
• Operating temperature ranges between -40°C and 85°C
• Silver contact plating
• Solder termination method
• Threaded mating
• Waterproof
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
