RS PRO, Plug Cable Mount SMP Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 170-6933
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 170-6933
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | SMP Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Size | Standard | |
| Operating Frequency | 40GHz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +90°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Mating Type | Snap On | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type SMP Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Standard | ||
Operating Frequency 40GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +90°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Snap On | ||
- COO (Country of Origin):
- TW

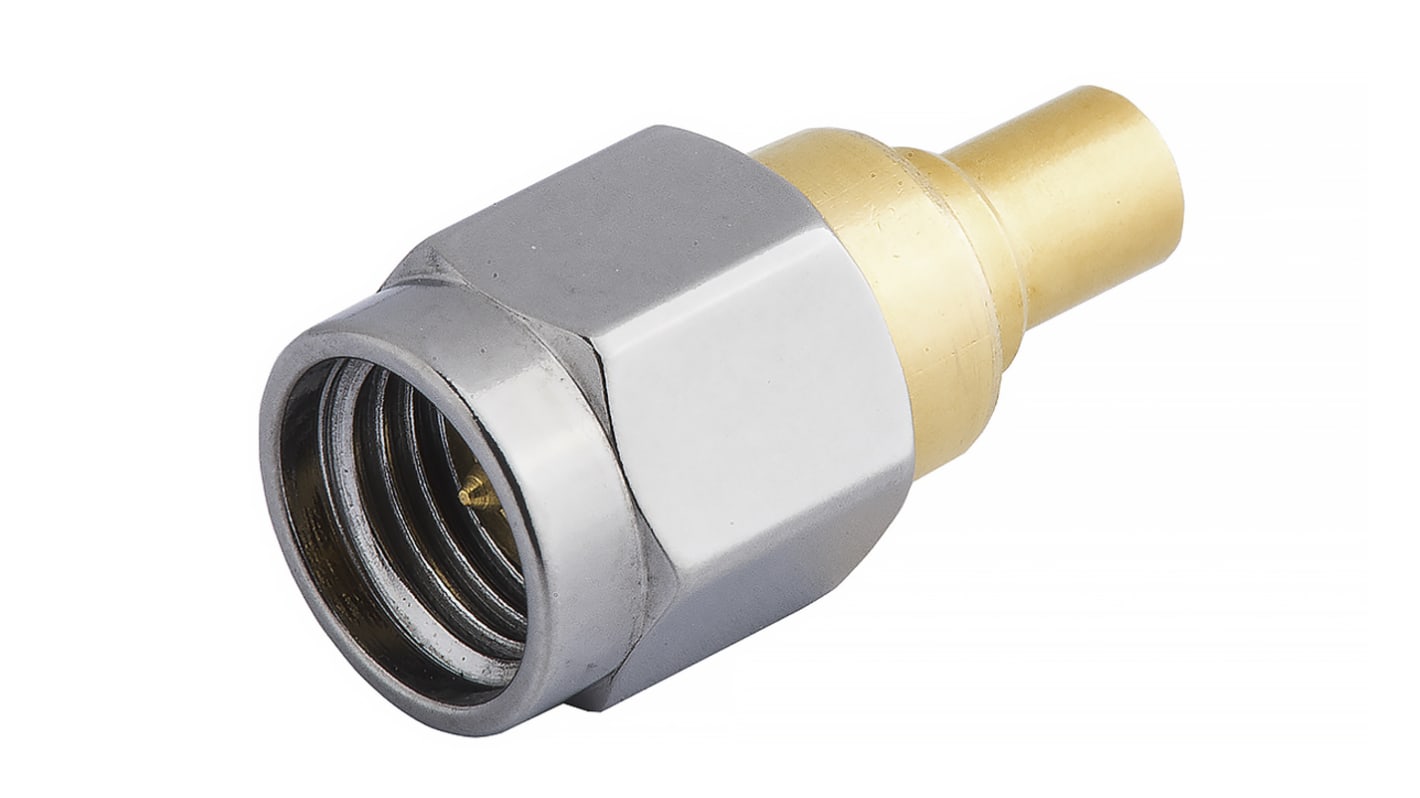

This is a straight SMPM plug to 2.92mm plug adapter. It has excellent performance form DC to 40GHz and the 2.92mm end can compatible with SMA and 3.5mm connector. It is a perfect adapter for test.The SMPM connector is a push-on connection, the size is about 70% smaller than standard SMP connectors. SMPM connectors are mainly used in high-packaging-density and tight-spaced applications.
Impedance: 50 OHM
Frequency Range:DC-40 GHz
V.S.W.R: 1.25 MAXFinish: gold plated center contact & body
Frequency Range:DC-40 GHz
V.S.W.R: 1.25 MAXFinish: gold plated center contact & body
