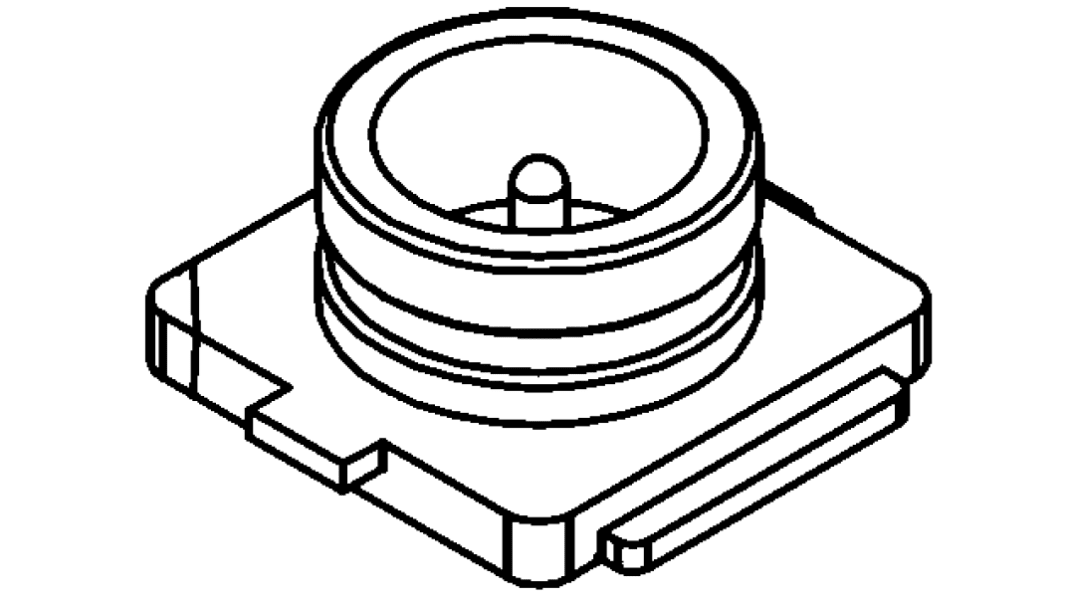

Molex, Jack Surface Mount BNC Connector, Solder Termination, Straight Body

RS Stock No.:: 167-6492
Mfr. Part No.:: 73412-0114
Brand:: Molex

Molex, Jack Surface Mount BNC Connector, Solder Termination, Straight Body

Bulk discount available

Subtotal (1 reel of 1000 units)*

£394.00

(exc. VAT)

£473.00

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1,000 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
1000 - 1000	£0.394	£394.00
2000 +	£0.366	£366.00

*price indicative

RS Stock No.:: 167-6492
Mfr. Part No.:: 73412-0114
Brand:: Molex

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	Coaxial Connector Type	BNC Connector
	Mounting Type	Surface Mount
	Termination Method	Solder
	Body Orientation	Straight
	Body Plating	Gold
	Contact Material	Phosphor Bronze
	Contact Plating	Gold
	Series Number	73412

	Select all
	Brand Molex
	Gender Female
	Coaxial Connector Type BNC Connector
	Mounting Type Surface Mount
	Termination Method Solder
	Body Orientation Straight
	Body Plating Gold
	Contact Material Phosphor Bronze
	Contact Plating Gold
	Series Number 73412

Molex Microcoaxial, Ultra-Microminiature Connectors

Ultra-microminiature microcoaxial SMT jack connectors with a low profile design that can work up to a frequency of 6 GHz. With a mated height of less than 2.5 mm, these Ultra-Microminiature jacks are ideal for use in slim equipment. A tactile lock confirms a secure mating connection with the plug connector. These MCRF (Microcoaxial RF) connectors are "drop-in" compatible with U.FL connectors

Features and Benefits

• Very low profile design
• Mated height of less than 2.5 mm
• Work up to 6 GHz
• Tactile lock confirms full mating

Product Application Information

These MCRF SMT jacks are ideal for use in small hand held wireless devices such as wireless LAN applications, mobile phones, radio-communication equipment, measurement equipment, GPS systems and bluetooth applications.

Molex 73269 Series Coaxial Connector, 6GHz Operating Frequency, 50Ω Impedance - 73412-0114

This coaxial connector is a microcoaxial RF jack designed for PCB surface mounting. With an ultra-microminiature profile and dimensions allowing a mounted height of just 1.25mm, it provides a compact solution ideal for high-frequency applications. Operating at an impedance of 50Ω and a maximum frequency of 6GHz, this connector is suitable for various electronic and electrical setups requiring reliable performance.

Features & Benefits

• Designed for surface mounting, ensuring ease of installation
• Gold plating enhances conductivity and reduces signal loss
• Solder termination provides robust and durable connectivity
• Straight body orientation simplifies integration into tight spaces
• Threads ensure secure and stable connection during operation
• Composed of phosphor bronze for improved mechanical strength

Applications

• Used in automation instruments requiring high-frequency connections
• Employed in electronic circuits where space is limited
• Suitable for RF in telecommunications equipment
• Utilised in consumer electronics demanding compact connector solutions

How does the gold plating benefit the performance of this connector?

The gold plating improves electrical conductivity while minimising oxidation, which enhances the reliability of signal transmission and prolongs the connector’s lifespan.

What is the maximum operating temperature that this connector can withstand?

It can operate safely up to 260°C, making it suitable for environments where higher temperatures are prevalent.

Can this connector be used in lead-free soldering processes?

Yes, it is designed to be reflow capable for lead-free soldering processes, accommodating modern assembly requirements.

What impact does the ultra-microminiature design have on applications?

The ultra-microminiature design allows for high-density mounting on PCBs, making it an ideal choice in compact electronic devices without sacrificing performance.

How many connectors are supplied per reel?

This connector is available in reels of 1,000 units, facilitating bulk purchasing and efficient handling during assembly processes.

Microcoaxial, Ultra-Microminiature Connectors

These Molex Microcoaxial connectors are very small, cost effective, RF connectors that are compatible with U.FL® connectors. The cable mount right angle plug is only available terminated as a full cable assembly.
