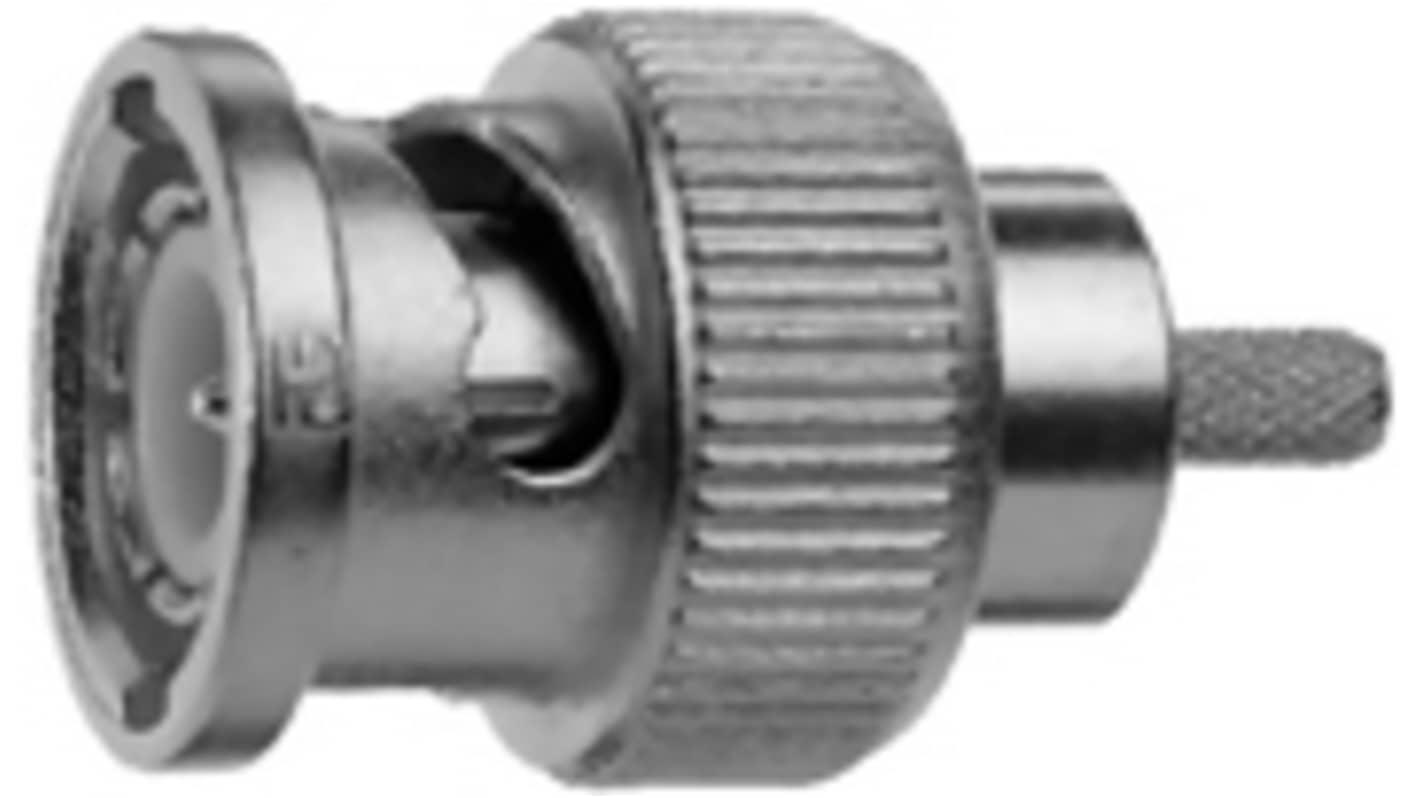

Telegartner, Plug Cable Mount BNC Connector, 75Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 468-532
- Mfr. Part No.:
- J01002A0058
- Brand:
- Telegartner
40 In stock - FREE next working day delivery available
19 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.70
(exc. VAT)
£5.64
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £4.70 |
| 10 - 24 | £4.23 |
| 25 - 49 | £3.90 |
| 50 - 99 | £3.77 |
| 100 + | £3.27 |
- RS Stock No.:
- 468-532
- Mfr. Part No.:
- J01002A0058
- Brand:
- Telegartner
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Telegärtner 75 Ohm BNC RF Coaxial HDTV Crimp Plugs
75 ohm BNC RF coaxial HDTV cable mount crimp plugs with a PTFE insulator, nickel plated body and a gold centre contact. These 75 ohm BNC RF coaxial HDTV crimp plugs are for use with the following RF coaxial cable types:
Stock number 468-510: G48 (1.6/7.3)
Stock number 468-516: G27 (1.0/4.6-6.7)
Stock number 468-526: G39 (0.8/3.7-6.15)
Stock number 468-532: RG-179 B/U
For further details please see datasheets on our website.
Stock number 468-510: G48 (1.6/7.3)
Stock number 468-516: G27 (1.0/4.6-6.7)
Stock number 468-526: G39 (0.8/3.7-6.15)
Stock number 468-532: RG-179 B/U
For further details please see datasheets on our website.
HDTV - Telegärtner
The High Definition Television (HDTV) digital technology requires RF connectors with 75Ω impedance showing excellent Return Loss values up to 3GHz. This range of 75Ω connectors which have a broad bandwith capability are ideally suited for HDTV applications.
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Coaxial Connector Type | BNC Connector |
| Mounting Type | Cable Mount |
| Impedance | 75Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | RG179 B/U |
| Bulkhead | No |
| Operating Frequency | 0 to 3GHz |
| Body Plating | Nickel |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +165°C |
