RS PRO, 100m, RG179 Coaxial, Unterminated75 Ω
- RS Stock No.:
- 906-0610
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£291.45
(exc. VAT)
£349.74
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 2 unit(s) shipping from 06 October 2025
- Plus 1 unit(s) shipping from 13 October 2025
- Plus 10 unit(s) shipping from 12 January 2026
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £291.45 | £2.915 |
*price indicative
- RS Stock No.:
- 906-0610
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Terminated/Unterminated | Unterminated | |
Coaxial Type | RG179 | |
Outer Diameter | 3mm | |
CPR Certification | Fca | |
Characteristic Impedance | 75 Ω | |
Attenuation | 78.7dB @ 1000 MHz | |
Length | 100m | |
Sheath Colour | Brown | |
Conductor Strand Type | Stranded | |
Core Strands | 7/0.1 | |
Number of Strands | 7 | |
Operating Temperature Range | -70 → +200 °C | |
Maximum Operating Temperature | +200°C | |
Size of Strands | 0.1 mm | |
Capacitance | 64pF/m | |
Conductor Material | Silver Plated Copper Clad Steel | |
Shielding | Silver Plated Copper Braid | |
Sheath Material | FEP | |
Standards Met | Euroclass Eca | |
Minimum Operating Temperature | -70°C | |
Insulation Material | PTFE | |
Velocity ratio | 69.5% | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG179 | ||
Outer Diameter 3mm | ||
CPR Certification Fca | ||
Characteristic Impedance 75 Ω | ||
Attenuation 78.7dB @ 1000 MHz | ||
Length 100m | ||
Sheath Colour Brown | ||
Conductor Strand Type Stranded | ||
Core Strands 7/0.1 | ||
Number of Strands 7 | ||
Operating Temperature Range -70 → +200 °C | ||
Maximum Operating Temperature +200°C | ||
Size of Strands 0.1 mm | ||
Capacitance 64pF/m | ||
Conductor Material Silver Plated Copper Clad Steel | ||
Shielding Silver Plated Copper Braid | ||
Sheath Material FEP | ||
Standards Met Euroclass Eca | ||
Minimum Operating Temperature -70°C | ||
Insulation Material PTFE | ||
Velocity ratio 69.5% | ||
- COO (Country of Origin):
- CN
RG179 FEP
· Double silver plated copper braid
· High rated temperature -70-200°C
Standards

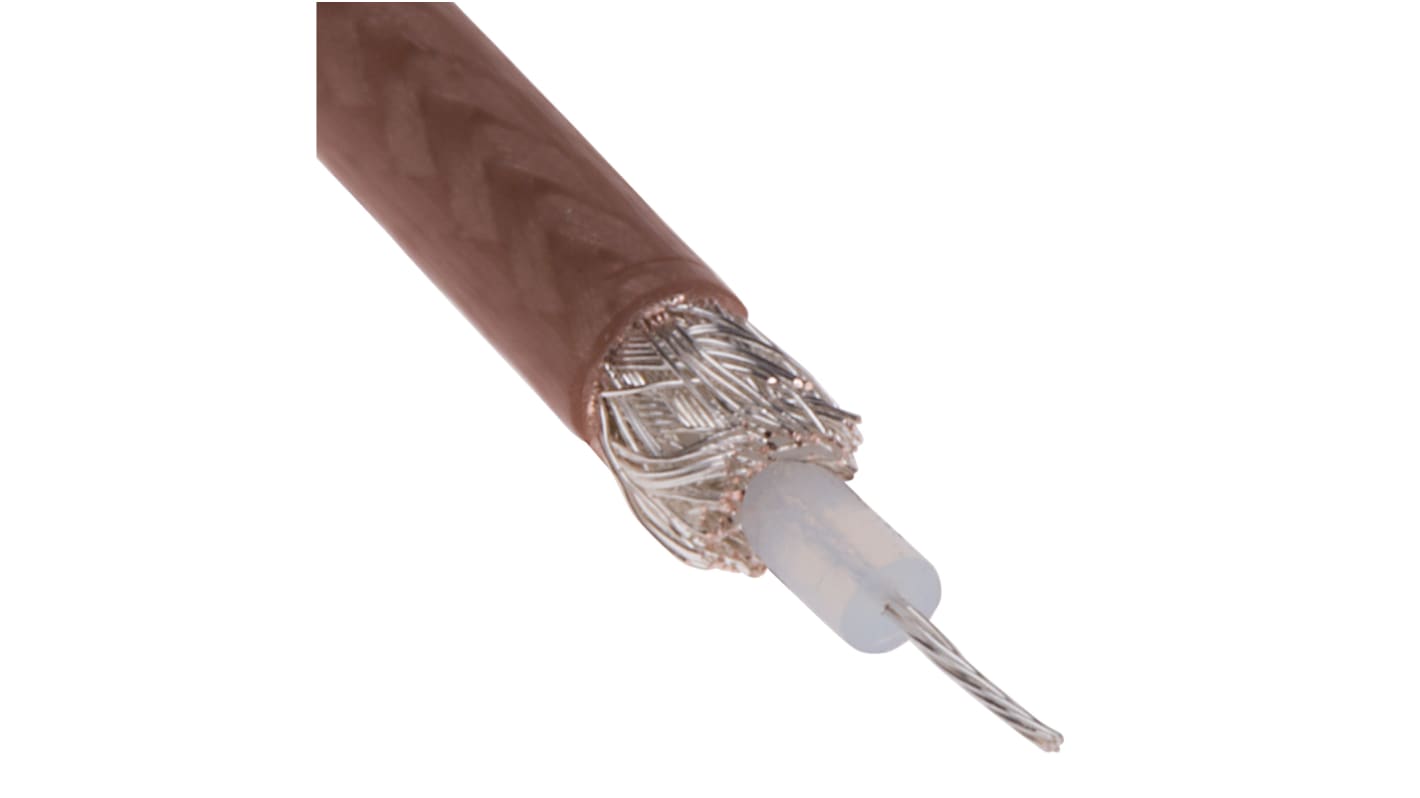

RS PRO Brown Unterminated to Unterminated RG179 Coaxial Cable, 75 Ω 3 mm OD
As an RG179 cable, this product is capable of transmitting high-quality images. The inner wires are double shielded, so users will benefit from lower levels of image and noise interference.
This cable comes with the reliability and durability you'd expect from our top-quality RS PRO range. It has a hardwearing fluorinated ethylene propylene (FEP) jacket to stop the inner cable corroding. In addition, it's able to withstand a wide range of temperatures, from -70°C to 200°C.
Features and Benefits
• RG179
• 75 Ω
• Outer diameter of 3 mm
• Brown sheath
• Stranded conductor
• Attenuation of 78.7dB @ 1000 MHz
• MIL-C-17F and MIL-C-17G certified for quality
• Minimum operating temperature -70 °C
• Maximum operating temperature +200 °C
