Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 3
£177.98
(exc. VAT)
£213.58
(inc. VAT)
- RS Stock No.:
- 749-6461
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG402 | |
| Outer Diameter | 3.55mm | |
| Characteristic Impedance | 50 Ω | |
| Attenuation | 0.41 dB/1m @ 1GHz, 1.05 dB/1m @ 5GHz, 1.58 dB/1m @ 10GHz, 2.22 dB/1m @ 18GHz | |
| Length | 50m | |
| Operating Temperature Range | -65 → +150 °C | |
| Minimum Operating Temperature | -65°C | |
| Sheath Material | Copper | |
| Insulation Material | PTFE | |
| Conductor Material | Silver Plated Copper Clad Steel | |
| Velocity ratio | 70% | |
| Shielding | Tinned Copper Braid | |
| Capacitance | 98pF/m | |
| Standards Met | RoHS Compliant | |
| Maximum Operating Temperature | +150°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG402 | ||
Outer Diameter 3.55mm | ||
Characteristic Impedance 50 Ω | ||
Attenuation 0.41 dB/1m @ 1GHz, 1.05 dB/1m @ 5GHz, 1.58 dB/1m @ 10GHz, 2.22 dB/1m @ 18GHz | ||
Length 50m | ||
Operating Temperature Range -65 → +150 °C | ||
Minimum Operating Temperature -65°C | ||
Sheath Material Copper | ||
Insulation Material PTFE | ||
Conductor Material Silver Plated Copper Clad Steel | ||
Velocity ratio 70% | ||
Shielding Tinned Copper Braid | ||
Capacitance 98pF/m | ||
Standards Met RoHS Compliant | ||
Maximum Operating Temperature +150°C | ||
- COO (Country of Origin):
- CN

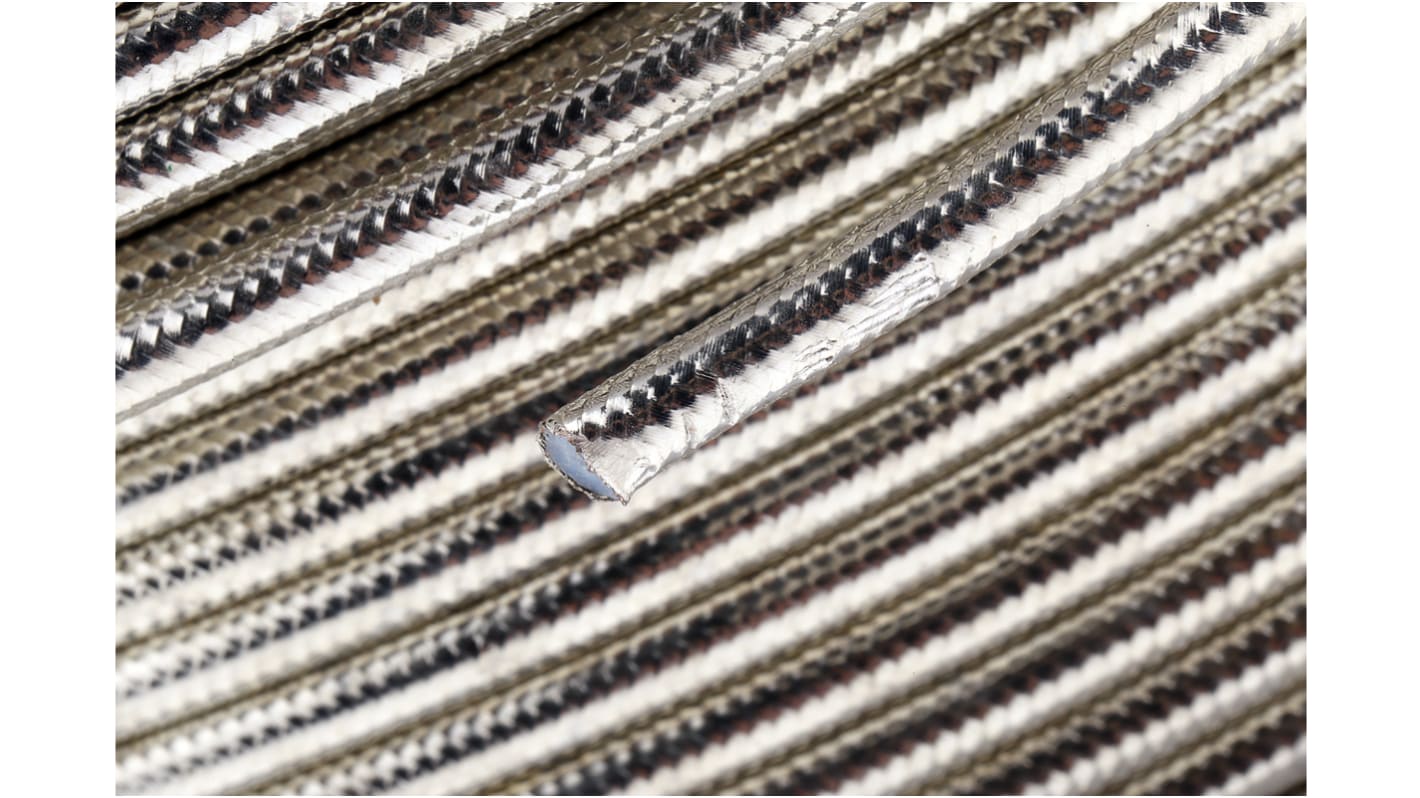

RS PRO Unterminated to Unterminated RG402 Coaxial Cable, 50 Ω 3.55 mm OD 50 m
This RG402 coaxial cable from RS PRO is designed for data communication via point-to-point systems, as it will minimise leak radiation and absorption. The 50 m reel is easy to store and use as and when you need. It's compatible with fixed microwave installations.
Silver-plated, copper-clad steel strands offer tensile strength and corrosion resistance, meaning the cable will endure over time. These are also highly conductive materials for a reliable connection. The cable is also insulated with polytetrafluoroethylene (PTFE) and shielded with tinned-copper braid to prevent electromagnetic noise from interfering with the signal.
This is a semi-rigid cable, meaning that it can be bent only once to fit your installation and will then stay in position. Cables of this kind are commonly used in radar systems, navigations systems and radio astronomy.
Silver-plated, copper-clad steel strands offer tensile strength and corrosion resistance, meaning the cable will endure over time. These are also highly conductive materials for a reliable connection. The cable is also insulated with polytetrafluoroethylene (PTFE) and shielded with tinned-copper braid to prevent electromagnetic noise from interfering with the signal.
This is a semi-rigid cable, meaning that it can be bent only once to fit your installation and will then stay in position. Cables of this kind are commonly used in radar systems, navigations systems and radio astronomy.
Features and Benefits
• Attenuation of 0.41 dB/1 m at 1 GHz, 1.05 dB/1 m at 5 GHz, 1.58 dB/1 m at 10 GHz, 2.22 dB/1 m at 18 GHz
• Coaxial cable
• Coaxial type of RG402
• Capacitance of 98 pF/m
• Characteristic impedance of 50 Ω
• Silver-plated copper-clad steel conductor
• Connectors A and B are unterminated types
• Polytetrafluoroethylene (PTFE) insulation
• Length of 50 m
• Operating temperature range of -65°C to +150°C
• Outer diameter of 3.55 mm
• Copper sheath
• Tinned-copper braid shielding
• Velocity ratio of 0.7
• Restriction of Hazardous Substances (RoHS) compliant
• Coaxial cable
• Coaxial type of RG402
• Capacitance of 98 pF/m
• Characteristic impedance of 50 Ω
• Silver-plated copper-clad steel conductor
• Connectors A and B are unterminated types
• Polytetrafluoroethylene (PTFE) insulation
• Length of 50 m
• Operating temperature range of -65°C to +150°C
• Outer diameter of 3.55 mm
• Copper sheath
• Tinned-copper braid shielding
• Velocity ratio of 0.7
• Restriction of Hazardous Substances (RoHS) compliant
