Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 30 Metre(s)
£69.56
(exc. VAT)
£83.47
(inc. VAT)
- RS Stock No.:
- 749-2529
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Terminated/Unterminated | Unterminated | |
| Outer Diameter | 6.75 mm, 5.7mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 12.5 dB/100m @ 400 MHz, 18.2 dB/100m @ 800 MHz, 6.1 dB/100m @ 100 MHz | |
| Length | 100m | |
| Sheath Colour | Black | |
| Conductor Strand Type | Solid, Stranded | |
| Standards Met | RoHS 2002/95/EC Compliant | |
| Size of Strands | 0.77 mm | |
| Number of Strands | 7 | |
| Conductor Material | Bare Copper | |
| Maximum Operating Temperature | +80°C | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Shielding | Copper Braid | |
| Velocity ratio | 80% | |
| Insulation Material | Foam PE, PVC | |
| Core Strands | 1/1, 7/0.77 | |
| Operating Temperature Range | Maximum of +80 °C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Outer Diameter 6.75 mm, 5.7mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 12.5 dB/100m @ 400 MHz, 18.2 dB/100m @ 800 MHz, 6.1 dB/100m @ 100 MHz | ||
Length 100m | ||
Sheath Colour Black | ||
Conductor Strand Type Solid, Stranded | ||
Standards Met RoHS 2002/95/EC Compliant | ||
Size of Strands 0.77 mm | ||
Number of Strands 7 | ||
Conductor Material Bare Copper | ||
Maximum Operating Temperature +80°C | ||
Sheath Material Polyvinyl Chloride PVC | ||
Shielding Copper Braid | ||
Velocity ratio 80% | ||
Insulation Material Foam PE, PVC | ||
Core Strands 1/1, 7/0.77 | ||
Operating Temperature Range Maximum of +80 °C | ||
- COO (Country of Origin):
- CN

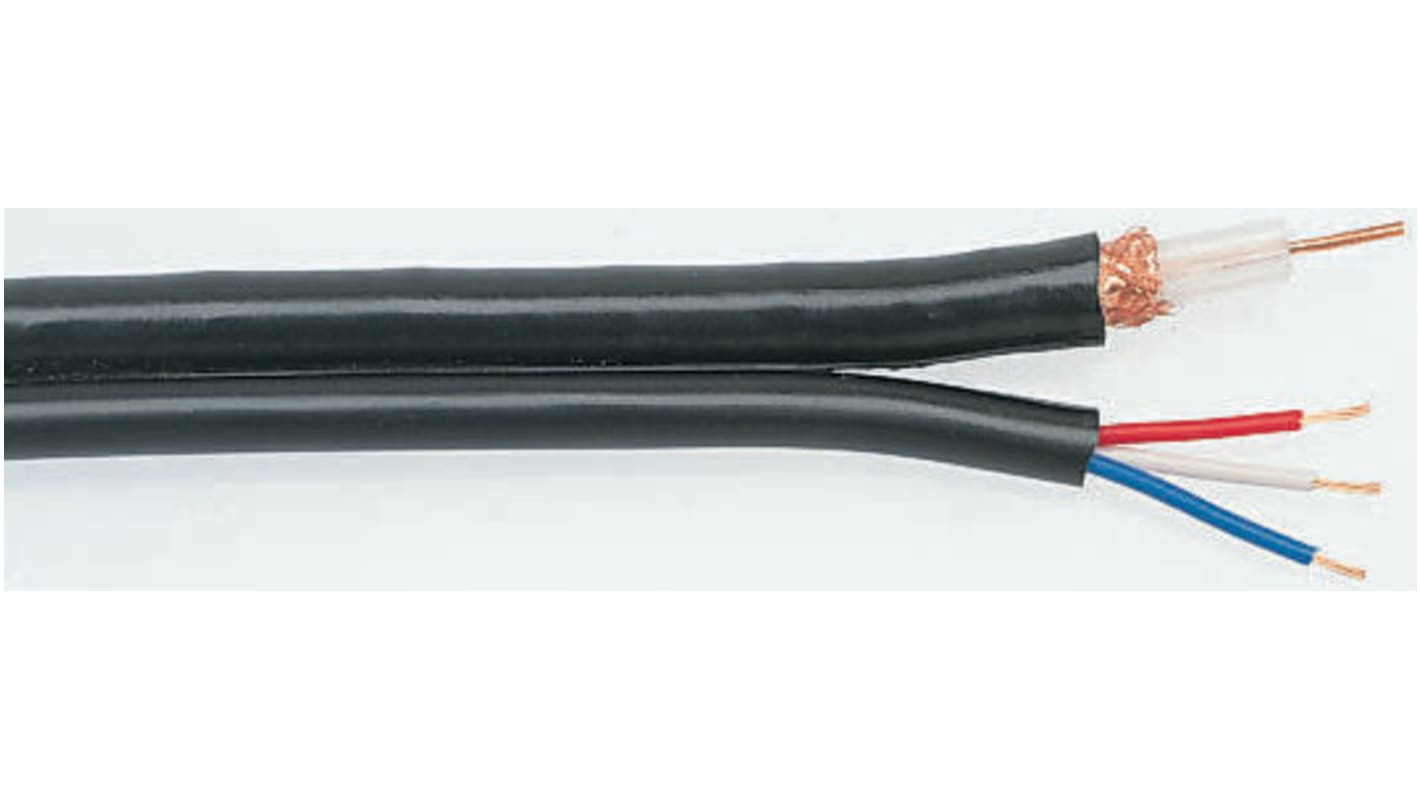

SAT1003 (Coaxial + 3 Control Cores)
The coaxial cable is constructed from 1//1.0mm plain solid copper conductorSemi-air-spaced polyethylene dielectric Plain copper tape & braided screen Coaxial O/D 6.45mmControl cores are constructed from 7//0.25mm stranded plain copper conductors insulated with colour coded PVCControl core resistance 39Ω/kmControl core O/D 5.3mmThe coaxial and control cores are contained in a figure of eight black outer PVC sheathConnector / Cable group L
