RS PRO, 25m, Multi-core coaxial Cable Coaxial, Unterminated75 Ω
- RS Stock No.:
- 749-2471
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 749-2471
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | Multi-core coaxial Cable | |
| Outer Diameter | 6.5mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 10.36 dB/100m @ 10 MHz, 14.32 dB/100m @ 20 MHz, 3.4 dB/100m @ 1 MHz, 4.77 dB/100m @ 2 MHz, 7.44 dB/100m @ 5 MHz | |
| Length | 25m | |
| Sheath Colour | Black | |
| Conductor Strand Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Size of Strands | 0.25 mm | |
| Conductor Material | Bare Copper | |
| Operating Temperature Range | -20 → +70 °C | |
| Shielding | Copper Spiral Shield | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Number of Strands | 1 | |
| Maximum Operating Temperature | +70°C | |
| Core Strands | 18/0.49, 2/0.25 | |
| Insulation Material | Foam PE, PE, PVC | |
| Standards Met | RoHS 2002/95/EC Compliant | |
| Velocity ratio | 73% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type Multi-core coaxial Cable | ||
Outer Diameter 6.5mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 10.36 dB/100m @ 10 MHz, 14.32 dB/100m @ 20 MHz, 3.4 dB/100m @ 1 MHz, 4.77 dB/100m @ 2 MHz, 7.44 dB/100m @ 5 MHz | ||
Length 25m | ||
Sheath Colour Black | ||
Conductor Strand Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Size of Strands 0.25 mm | ||
Conductor Material Bare Copper | ||
Operating Temperature Range -20 → +70 °C | ||
Shielding Copper Spiral Shield | ||
Sheath Material Polyvinyl Chloride PVC | ||
Number of Strands 1 | ||
Maximum Operating Temperature +70°C | ||
Core Strands 18/0.49, 2/0.25 | ||
Insulation Material Foam PE, PE, PVC | ||
Standards Met RoHS 2002/95/EC Compliant | ||
Velocity ratio 73% | ||
- COO (Country of Origin):
- CN

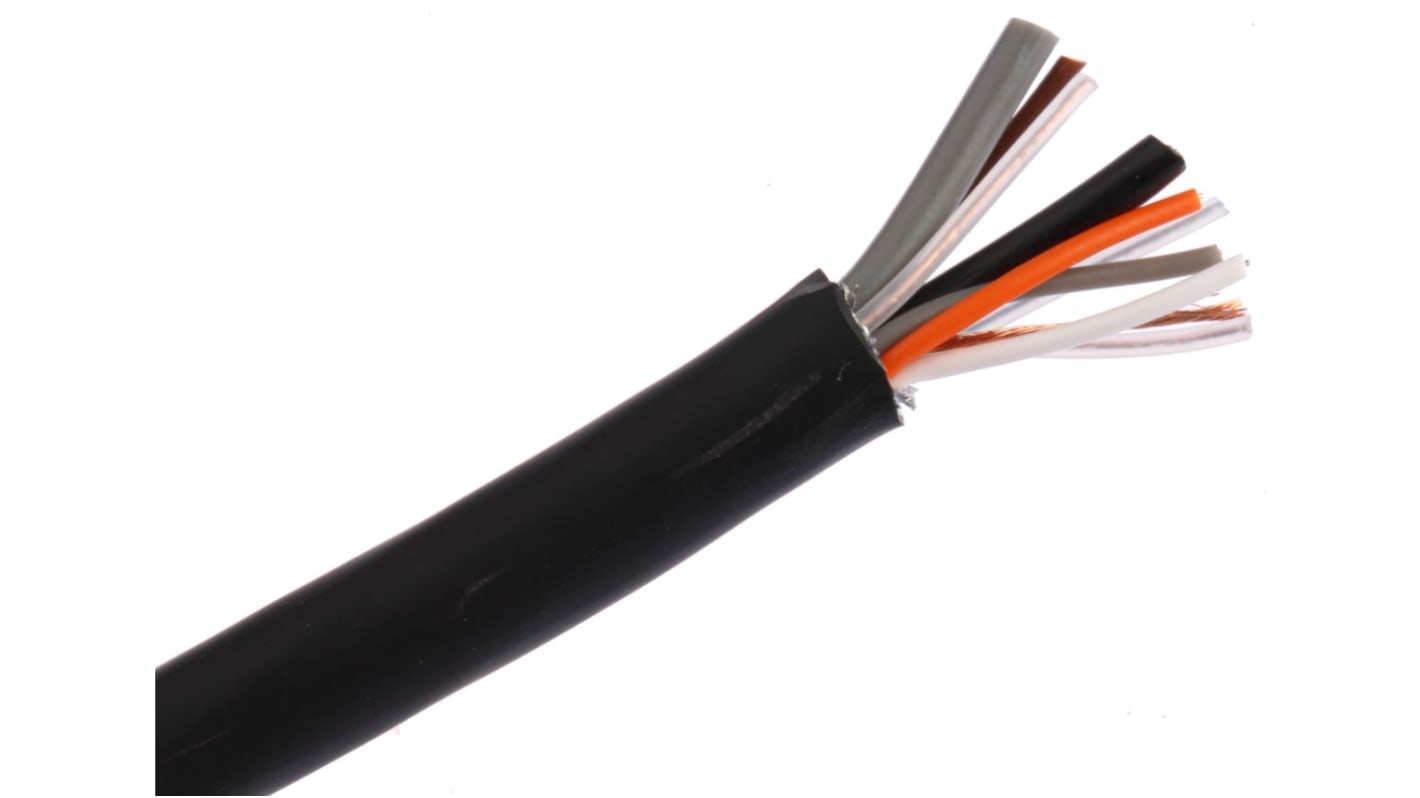

RS PRO Black Unterminated to Unterminated Coaxial Cable
From RS PRO, comes a high quality unterminated to unterminated coaxial cables. Constructed out of industry-standard components, this flexible cable has been designed so that the user can attach connection points on each end.
Coaxial type cables are designed to carry signals over long distances and are easy to install.
Coaxial type cables are designed to carry signals over long distances and are easy to install.
Features and benefits
- Reel length of 25m
- Strong black PVC jacket
- Impedance of 75 ohms
- Diameter of 6.5mm
Applications
Coaxial cables are commonly used by electricians and IT personnel and have a range of application use such as;
- Connecting radio transmitters and receivers with their antennas
- Computer network (Internet) connections
- Feeding satellite signals through to your TV.
What is Impedance?
Impedance is an electric current’s opposition being measured when the voltage has been applied.
