Wurth Elektronik Male SMA to Female SMA, 152.4mm, RG316 Coaxial, Terminated50 Ω
- RS Stock No.:
- 181-0020
- Distrelec Article No.:
- 301-54-554
- Mfr. Part No.:
- 65503503215305
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£16.17
(exc. VAT)
£19.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £16.17 |
| 10 - 49 | £14.89 |
| 50 - 99 | £13.80 |
| 100 - 499 | £12.86 |
| 500 + | £12.04 |
*price indicative
- RS Stock No.:
- 181-0020
- Distrelec Article No.:
- 301-54-554
- Mfr. Part No.:
- 65503503215305
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Connector 1 | SMA | |
| Terminated/Unterminated | Terminated | |
| Coaxial Type | RG316 | |
| Connector 2 | SMA | |
| Connector 1 Gender | Male | |
| Connector 2 Gender | Female | |
| Outer Diameter | 2.49mm | |
| Characteristic Impedance | 50 Ω | |
| Attenuation | 0.7 dB | |
| Length | 152.4mm | |
| Sheath Colour | White | |
| Voltage Rating | 250 V ac | |
| Shielding | Braid | |
| Maximum Operating Temperature | +165°C | |
| Minimum Operating Temperature | -55°C | |
| Insulation Material | PTFE | |
| Operating Temperature Range | -55 → +165 °C | |
| Conductor Material | Brass | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Connector 1 SMA | ||
Terminated/Unterminated Terminated | ||
Coaxial Type RG316 | ||
Connector 2 SMA | ||
Connector 1 Gender Male | ||
Connector 2 Gender Female | ||
Outer Diameter 2.49mm | ||
Characteristic Impedance 50 Ω | ||
Attenuation 0.7 dB | ||
Length 152.4mm | ||
Sheath Colour White | ||
Voltage Rating 250 V ac | ||
Shielding Braid | ||
Maximum Operating Temperature +165°C | ||
Minimum Operating Temperature -55°C | ||
Insulation Material PTFE | ||
Operating Temperature Range -55 → +165 °C | ||
Conductor Material Brass | ||
- COO (Country of Origin):
- TW

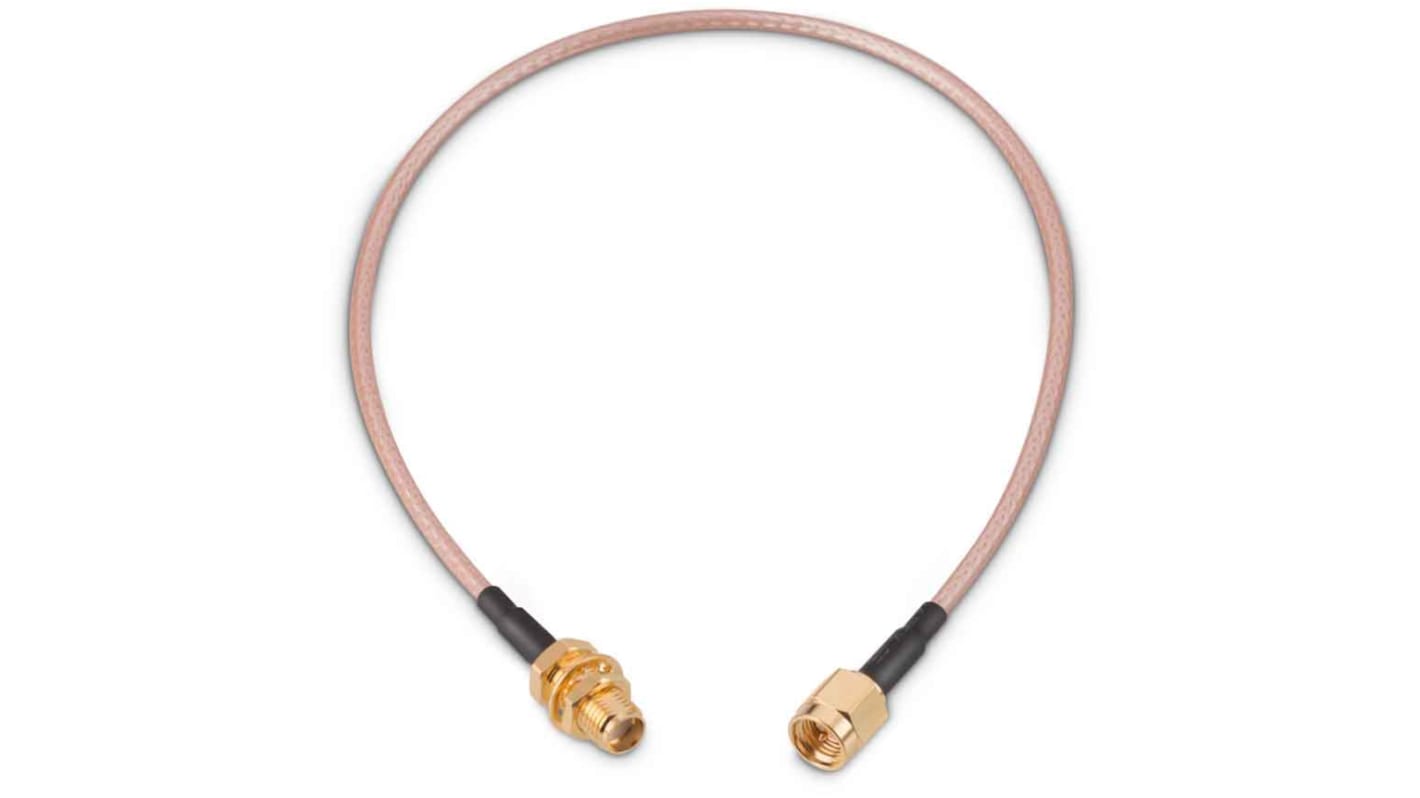

The Wurth Elektronic WR-CXASY is a straight SMA plug to straight SMA bulkhead jack, RG-316/U flexible cable having a braid cable shielding and a length of 152.4 mm. It has a brass body material.
RoHS compliant
Operating temperature ranges between -55°C upto +165°C
500 mating cycle
Minimum bend radius : 12.7 mm
Operating temperature ranges between -55°C upto +165°C
500 mating cycle
Minimum bend radius : 12.7 mm
