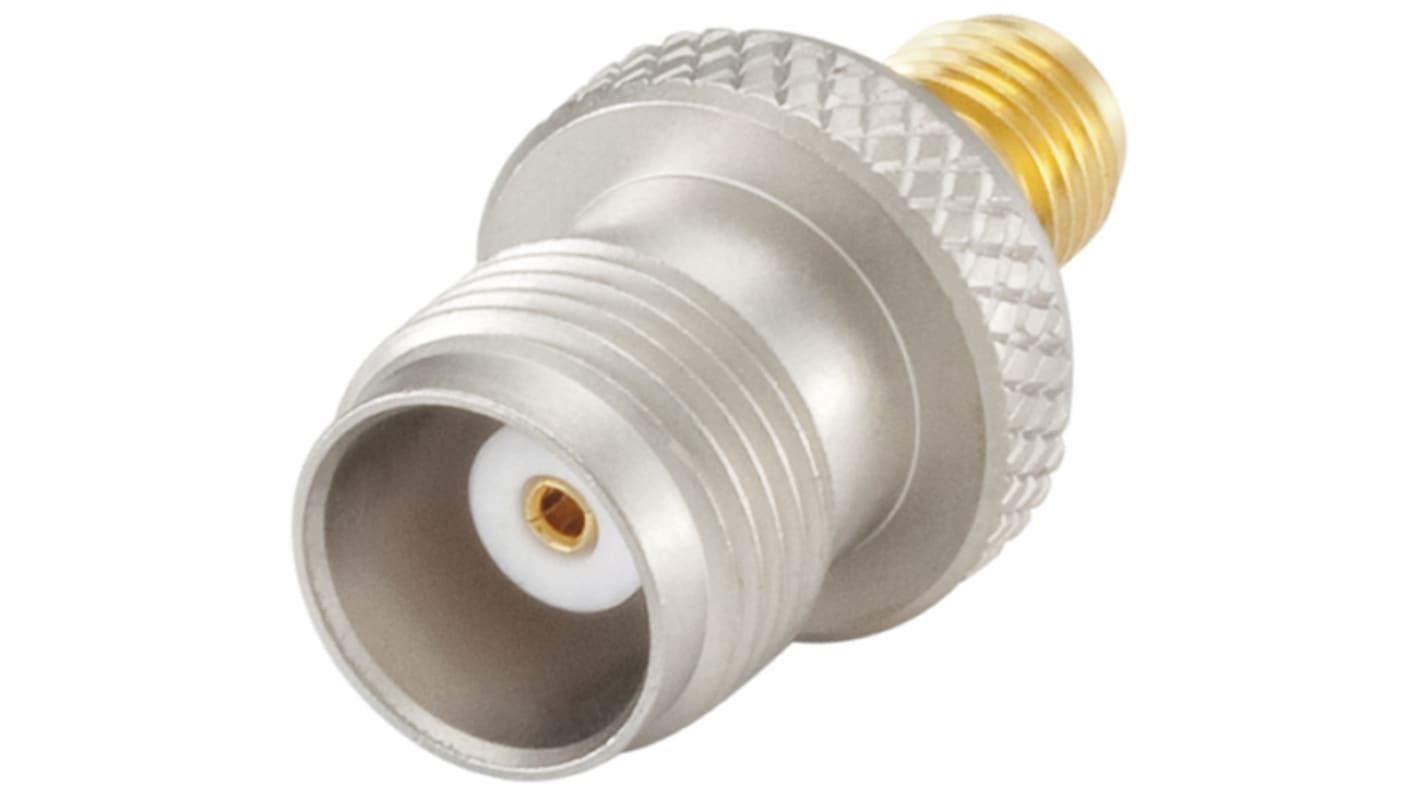

Rosenberger Straight 50 Ω RF Adapter 10GHz Female Female
- RS Stock No.:
- 819-4181
- Mfr. Part No.:
- 56K132-K00L5
- Brand:
- Rosenberger
Get a bulk buy discount
Add 10 more to save 5%
View bulk pricing optionsSubtotal (1 unit)*
£46.15
(exc. VAT)
£55.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 24 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 9 | £46.15 | - |
| 10 - 24 | £43.70 | 5% |
| 25 - 49 | £41.45 | 10% |
| 50 - 99 | £39.18 | 15% |
| 100 + | £38.08 | 17% |
*price indicative
- RS Stock No.:
- 819-4181
- Mfr. Part No.:
- 56K132-K00L5
- Brand:
- Rosenberger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rosenberger | |
| Product Type | RF Adapter | |
| Adapter Type | TNC Socket to SMA Socket | |
| Converts From Type | TNC | |
| Converts to Type | SMA | |
| Impedance | 50Ω | |
| Mount Type | Cable | |
| Orientation | Straight | |
| Operating Frequency | 10GHz | |
| Polarity | Normal | |
| Contact Plating | Nickel, Gold | |
| Body Plating | Nickel, Gold | |
| Converts From Gender - Contact | Female | |
| Coupling Style | Threaded | |
| Converts to Gender - Connector | Female | |
| Converts From Gender - Connector | Female | |
| Converts to Gender - Contact | Female | |
| Standards/Approvals | No | |
| Series | TNC | |
| Length | 24.06mm | |
| Contact Material | Brass, Beryllium Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Rosenberger | ||
Product Type RF Adapter | ||
Adapter Type TNC Socket to SMA Socket | ||
Converts From Type TNC | ||
Converts to Type SMA | ||
Impedance 50Ω | ||
Mount Type Cable | ||
Orientation Straight | ||
Operating Frequency 10GHz | ||
Polarity Normal | ||
Contact Plating Nickel, Gold | ||
Body Plating Nickel, Gold | ||
Converts From Gender - Contact Female | ||
Coupling Style Threaded | ||
Converts to Gender - Connector Female | ||
Converts From Gender - Connector Female | ||
Converts to Gender - Contact Female | ||
Standards/Approvals No | ||
Series TNC | ||
Length 24.06mm | ||
Contact Material Brass, Beryllium Copper Alloy | ||
- COO (Country of Origin):
- HU
Rosenberger SMA to TNC Interseries RF Coaxial Adapters
A range of 50 OHM SMA to TNC RF coaxial connector adapters available with various configurations including SMA jack to TNC jack, SMA jack to TNC plug and SMA jack to TNC jack. These 50 OHM SMA to TNC RF coaxial adapters have a mating interface according to IEC 60169-15; EN 122110; MIL-STD-348A on the SMA side and IEC 60169-17, MIL-PRF-39012, DIN EN 122200 on the TNC side.
Rosenberger Between-Series RF Coaxial Adapters
