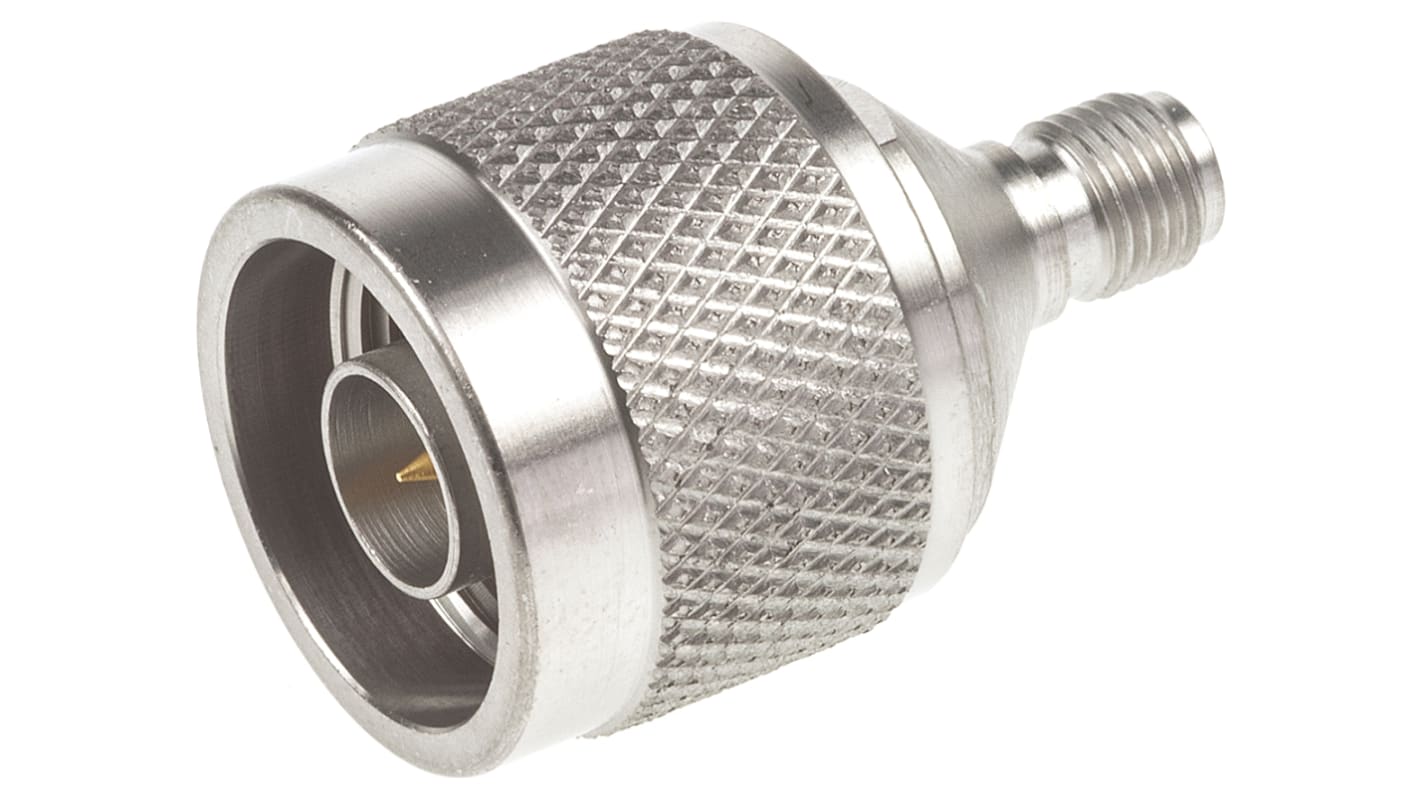

Straight 50Ω RF Adapter N Plug to SMA Socket 18GHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity 50 OHM Between Series SMA to N Type RF Coaxial Adapters

A range of 50 OHM between series SMA to N type RF coaxial adapters with a stainless steel body and gold plated centre contact. These SMA to N type RF coax adapter connectors are available in a variety of configurations including SMA jack connector to N type jack connector, SMA jack connector to N series plug connector, SMA plug connector to N series plug connector and SMA plug connector to N series jack connector.
Stock number 713-0701 is a flange mount SMA to N type adapter
Stock numbers 713-0710, 718-2588 , 821-9013 and 821- 2444 are cable mount SMA to N type adapters
Stock numbers 821-8798 and 821-8791 are bulkhead feedthrough SMA to N type adapters

TE Connectivity Between-Series RF Coaxial Adapters

Specifications
Attribute Value
Adapter Type N Plug to SMA Socket
Adapter Type A N
Adapter Type B SMA
Gender A Male
Gender B Female
Impedance 50Ω
Body Orientation Straight
Operating Frequency 18GHz
Contact Plating Gold
Length 31.5mm
Cable Type Coaxial
Contact Material Beryllium Copper
8 In stock - FREE next working day delivery available
Price Each
£ 68.11
(exc. VAT)
£ 81.73
(inc. VAT)
Units
Per unit
1 - 14
£68.11
15 - 49
£55.99
50 - 99
£53.19
100 - 249
£50.54
250 +
£48.02
