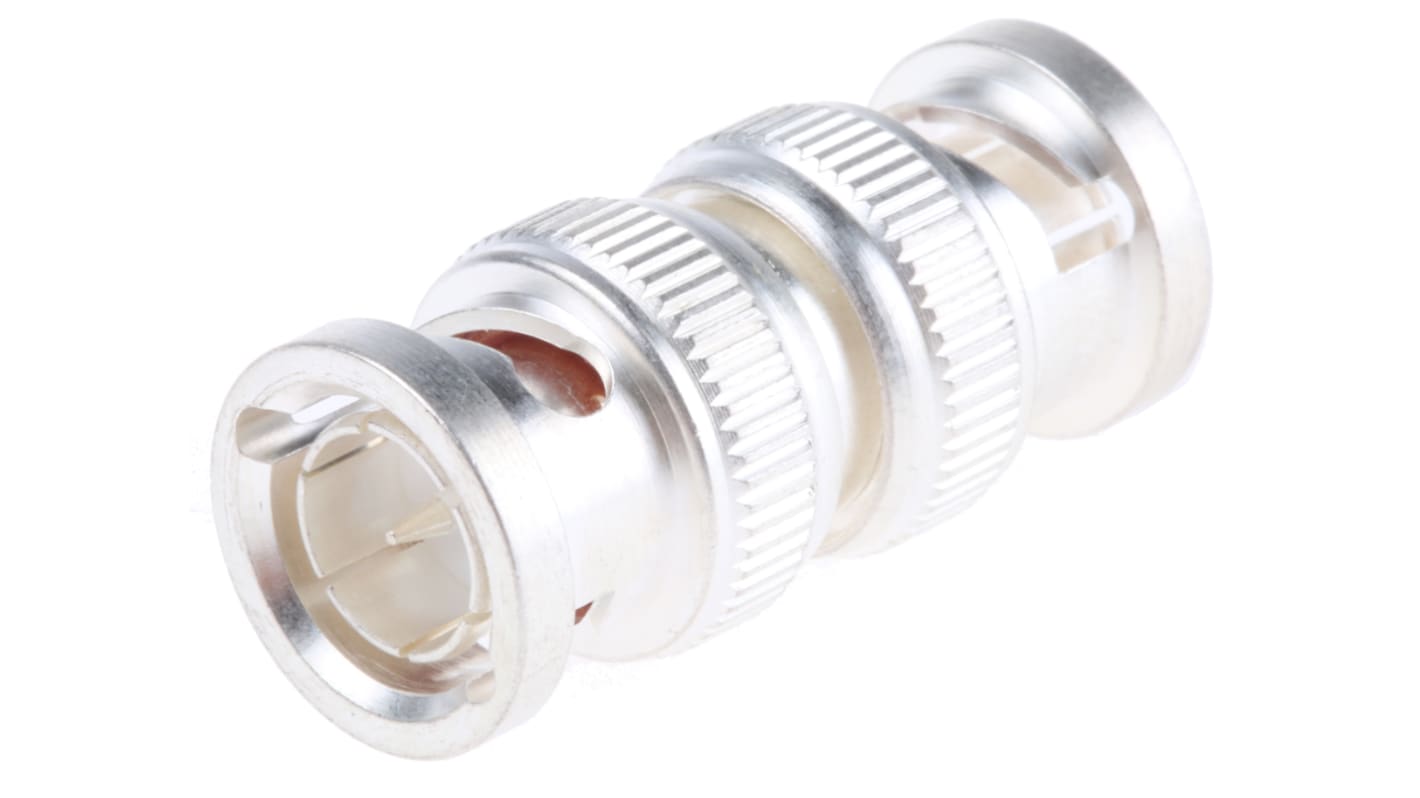

RS PRO Straight 75Ω RF Adapter BNC Plug to BNC Plug 1GHz
- RS Stock No.:
- 546-4566
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£7.74
(exc. VAT)
£9.29
(inc. VAT)
- RS Stock No.:
- 546-4566
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | BNC Plug to BNC Plug | |
| Adapter Type A | BNC | |
| Adapter Type B | BNC | |
| Gender A | Male | |
| Gender B | Male | |
| Impedance | 75Ω | |
| Body Orientation | Straight | |
| Operating Frequency | 1GHz | |
| Contact Plating | Silver | |
| Length | 31.6±0.5mm | |
| Body Plating | Silver | |
| Contact Material | Copper | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type BNC Plug to BNC Plug | ||
Adapter Type A BNC | ||
Adapter Type B BNC | ||
Gender A Male | ||
Gender B Male | ||
Impedance 75Ω | ||
Body Orientation Straight | ||
Operating Frequency 1GHz | ||
Contact Plating Silver | ||
Length 31.6±0.5mm | ||
Body Plating Silver | ||
Contact Material Copper | ||
- COO (Country of Origin):
- TW
RS PRO coaxial adapters
From RS PRO comes a range of high quality and great value coaxial adapters, these coaxial type adapters have been designed to provide a effective method of connecting coaxial cable assemblies through a panel mounting connection.
Manufactured out of industry standard components, these connectors are most commonly used for connecting radio and television broadcast equipment.
Manufactured out of industry standard components, these connectors are most commonly used for connecting radio and television broadcast equipment.
Features and benefits
- Silver plated contact plating
- Impedance of 50 ohms and 75 ohms offered in this range
- Silver plated body
- Operating frequency of 1 GHz and 4 GHz offered in this range
- Straight body
Applications
Coaxial adapters are used in a variety of RF (radio frequency) signal applications as well in medical and test equipment. Other applications include;
- Test and measurement
- Communication systems
- GPS equipment
- Antennas
- Wi-fi equipment
- aerospace
- Broadcast
- Audio and video
What is impedance?
Impedance is an electric current’s opposition being measured when the voltage has been applied.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
