RS PRO Tee 50Ω Coaxial Adapter BNC Plug Plug to BNC Socket 1GHz
- RS Stock No.:
- 217-7791
- Brand:
- RS PRO
Subtotal (1 unit)*
£8.26
(exc. VAT)
£9.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 110 unit(s) shipping from 22 October 2025
- Plus 47 unit(s) shipping from 22 October 2025
- Plus 500 unit(s) shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £8.26 |
*price indicative
- RS Stock No.:
- 217-7791
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | BNC Dual Socket to Plug | |
Adapter Type A | BNC Plug | |
Adapter Type B | BNC | |
Gender A | Male | |
Gender B | Female | |
Impedance | 50Ω | |
Body Orientation | Tee | |
Operating Frequency | 1GHz | |
Contact Plating | Gold | |
Length | 32.5mm | |
Body Plating | Nickel | |
Cable Type | Coaxial | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type BNC Dual Socket to Plug | ||
Adapter Type A BNC Plug | ||
Adapter Type B BNC | ||
Gender A Male | ||
Gender B Female | ||
Impedance 50Ω | ||
Body Orientation Tee | ||
Operating Frequency 1GHz | ||
Contact Plating Gold | ||
Length 32.5mm | ||
Body Plating Nickel | ||
Cable Type Coaxial | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN

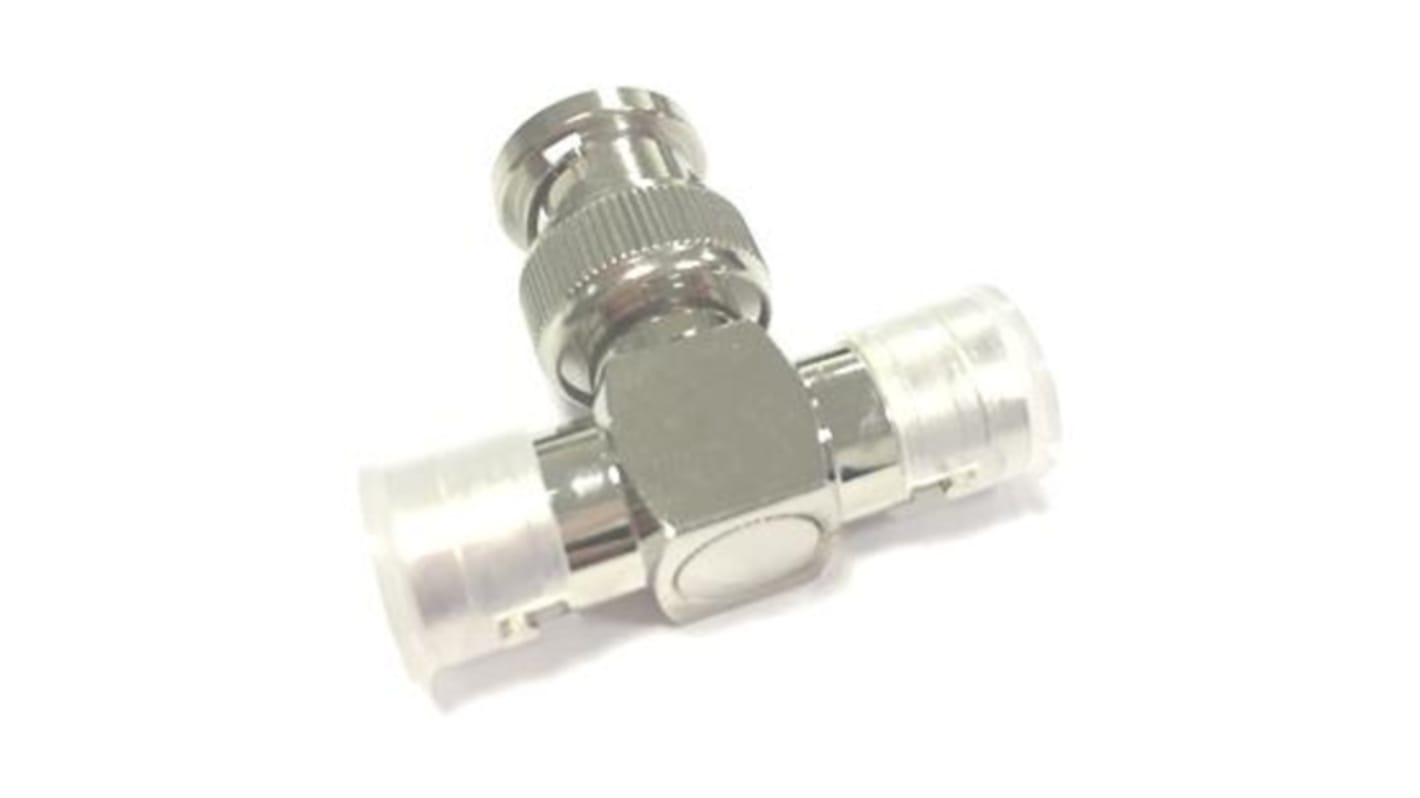

RS PRO BNC Tee Adapter
When you need to connect a female BNC coaxial cable assembly that converts to dual female BNC sockets, then RS PRO has the adapter you need. The RF connector offers a Tee configuration with dual female BNC sockets ready to accept coaxial cables. This stylish RF adapter is made from high-quality materials that deliver the best in audio and video signalling.
Why would need this RF adapter?
The RS PRO Tee adapter is a high-quality component designed for panel mount applications and mates with female and male BNC coaxial cables. The adapter features a rugged nickel-plated body, gold-plated centre pin contacts for excellent electrical conductivity and when it comes to mating, theres a convenient bayonet coupling system that ensures quick connection and disengagement without risk of damage to coaxial cable.
Features and Benefits
- Adapter Type: BNC Tee
- BNC male to dual BNC Female sockets
- Body Plating Nickel
- Contact Material: Brass
- Contact Plating: Nickel
- Insulation material: PTFE
Electrical Specification
- Temperature Range -20°C ∼+60°C
- Characteristic Impedance 50Ω
- Frequency Range 0∼1GHz
- Working Voltage 335V
- Insulation Resistance ≥1000MΩ
- Medium Pressure 1000V(rms)
- VSWR ≤1.35
- Working Life 500 Cycles
Things to consider!
RS PRO offers an extensive range of coaxial cables and accessories that compliments this adapter. Browse our offer using the improved filters to find your ideal solution.
Applications
- Audio
- Communications & Networking
- RF Communications
- Video & Vision
- Datacom
- Telecom
FAQ's
What is impedance?
Impedance is an electric currents opposition being measured when the voltage has been applied.
Impedance is an electric currents opposition being measured when the voltage has been applied.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products has been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
