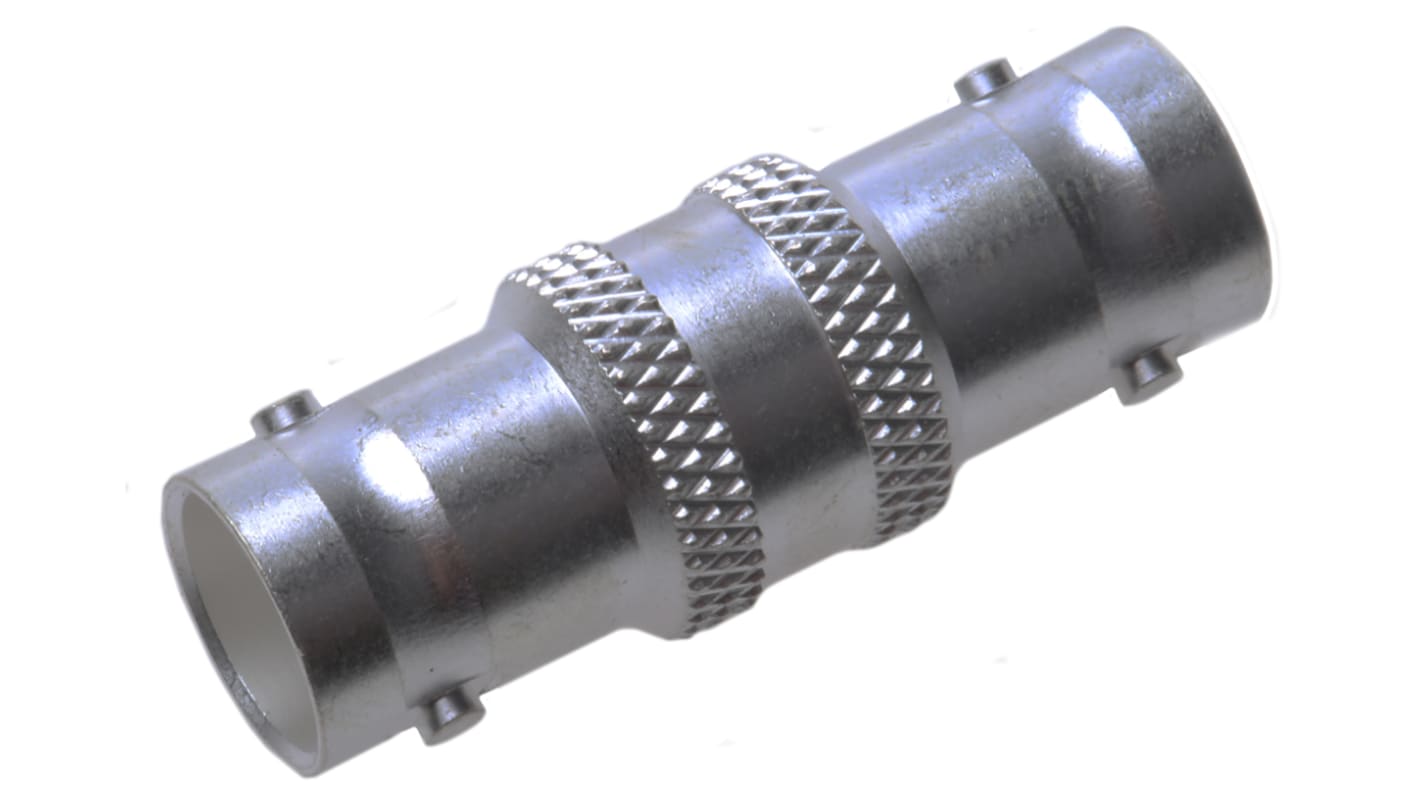

RS PRO Straight 75Ω RF Adapter BNC Socket to BNC Socket 1GHz
- RS Stock No.:
- 546-4538
- Distrelec Article No.:
- 304-05-750
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£14.55
(exc. VAT)
£17.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,080 unit(s) ready to ship
- Plus 76 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £14.55 |
10 - 49 | £13.86 |
50 - 99 | £10.22 |
100 - 249 | £8.83 |
250 + | £8.56 |
*price indicative
- RS Stock No.:
- 546-4538
- Distrelec Article No.:
- 304-05-750
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | BNC Socket to BNC Socket | |
Adapter Type A | BNC | |
Adapter Type B | BNC | |
Gender A | Female | |
Gender B | Female | |
Impedance | 75Ω | |
Body Orientation | Straight | |
Operating Frequency | 1GHz | |
Contact Plating | Silver | |
Length | 32.5mm | |
Body Plating | Silver | |
Contact Material | Copper | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type BNC Socket to BNC Socket | ||
Adapter Type A BNC | ||
Adapter Type B BNC | ||
Gender A Female | ||
Gender B Female | ||
Impedance 75Ω | ||
Body Orientation Straight | ||
Operating Frequency 1GHz | ||
Contact Plating Silver | ||
Length 32.5mm | ||
Body Plating Silver | ||
Contact Material Copper | ||
- COO (Country of Origin):
- TW
RS PRO coaxial adapters
From RS PRO comes a range of high quality and great value coaxial adapters, these coaxial type adapters have been designed to provide a effective method of connecting coaxial cable assemblies through a panel mounting connection.
Manufactured out of industry standard components, these connectors are most commonly used for connecting radio and television broadcast equipment.
Manufactured out of industry standard components, these connectors are most commonly used for connecting radio and television broadcast equipment.
Features and benefits
- Silver plated contact plating
- Impedance of 50 ohms and 75 ohms offered in this range
- Silver plated body
- Operating frequency of 1 GHz and 4 GHz offered in this range
- Straight body
Applications
Coaxial adapters are used in a variety of RF (radio frequency) signal applications as well in medical and test equipment. Other applications include;
- Test and measurement
- Communication systems
- GPS equipment
- Antennas
- Wi-fi equipment
- aerospace
- Broadcast
- Audio and video
What is impedance?
Impedance is an electric currents opposition being measured when the voltage has been applied.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
