Bulk discount available
Subtotal (1 unit)*
£40.08
(exc. VAT)
£48.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 163 unit(s) ready to ship
- Plus 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £40.08 |
| 15 - 49 | £36.19 |
| 50 - 99 | £32.54 |
| 100 - 249 | £31.42 |
| 250 + | £29.74 |
*price indicative
- RS Stock No.:
- 295-5772
- Mfr. Part No.:
- R114780000W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Adapter Type | SMB Male to Male | |
| Product Type | RF Adapter | |
| Converts From Type | SMB | |
| Converts to Type | SMB | |
| Impedance | 50Ω | |
| Mount Type | Cable | |
| Orientation | T | |
| Polarity | Normal | |
| Operating Frequency | 4GHz | |
| Contact Plating | Gold over Nickel | |
| Converts to Gender - Contact | Male | |
| Converts From Gender - Connector | Male | |
| Body Plating | Gold over Nickel | |
| Coupling Style | Threaded | |
| Converts From Gender - Contact | Female | |
| Converts to Gender - Connector | Male | |
| Cable Type | Coaxial | |
| Series | SMB | |
| Contact Material | Beryllium Copper Alloy | |
| Standards/Approvals | No | |
| Length | 19mm | |
| Select all | ||
|---|---|---|
Brand Radiall | ||
Adapter Type SMB Male to Male | ||
Product Type RF Adapter | ||
Converts From Type SMB | ||
Converts to Type SMB | ||
Impedance 50Ω | ||
Mount Type Cable | ||
Orientation T | ||
Polarity Normal | ||
Operating Frequency 4GHz | ||
Contact Plating Gold over Nickel | ||
Converts to Gender - Contact Male | ||
Converts From Gender - Connector Male | ||
Body Plating Gold over Nickel | ||
Coupling Style Threaded | ||
Converts From Gender - Contact Female | ||
Converts to Gender - Connector Male | ||
Cable Type Coaxial | ||
Series SMB | ||
Contact Material Beryllium Copper Alloy | ||
Standards/Approvals No | ||
Length 19mm | ||

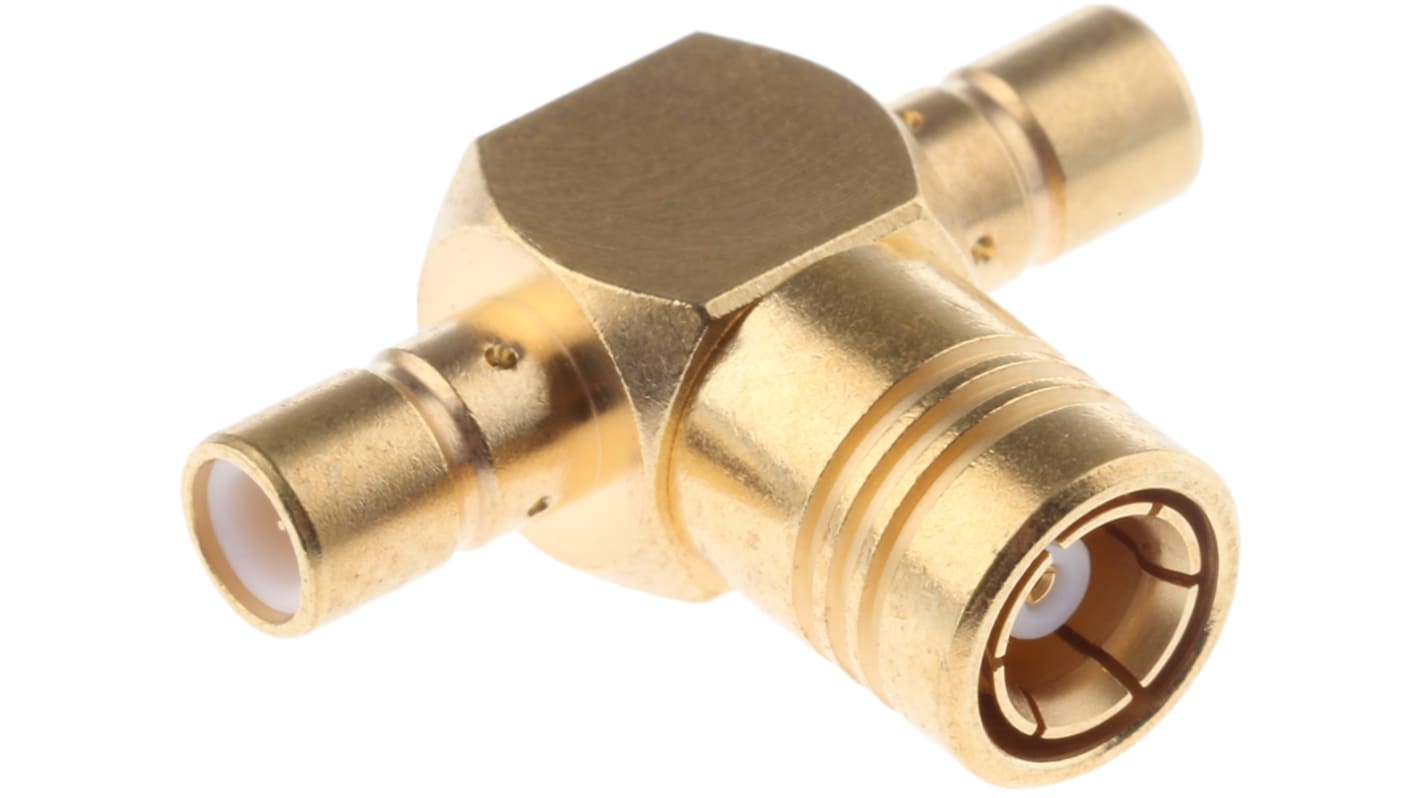

SMB Gender Adaptors
Series of connectors designed for all types of SMB-SMB adaptations.
Push-pull coupling system.
Identical technical specifications to the female cable gland plugs in the same series.
Radiall - SMB Gold Plated
Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.
Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778
