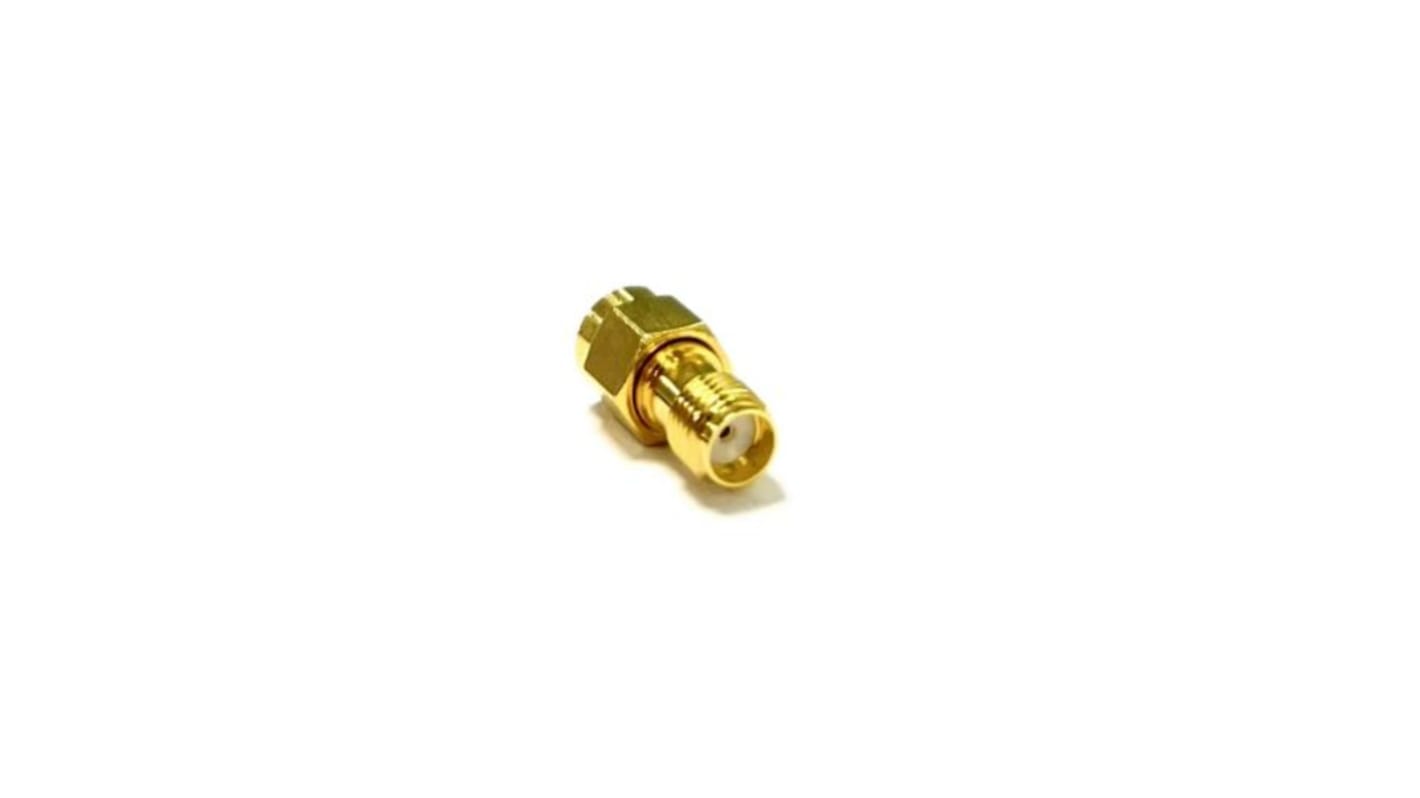

RS PRO Straight 50Ω Coaxial Adapter SMA Plug to SMA Socket 6GHz
- RS Stock No.:
- 246-9404
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.17
(exc. VAT)
£7.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 498 unit(s) shipping from 22 October 2025
- Plus 2 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.17 |
5 - 9 | £5.98 |
10 - 24 | £5.74 |
25 + | £5.45 |
*price indicative
- RS Stock No.:
- 246-9404
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | SMA | |
Adapter Type A | SMA | |
Adapter Type B | SMA | |
Gender A | Male | |
Gender B | Female | |
Impedance | 50Ω | |
Body Orientation | Straight | |
Operating Frequency | 6GHz | |
Contact Plating | Gold | |
Length | 17.2mm | |
Body Plating | Gold | |
Cable Type | Coaxial | |
Contact Material | Copper | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type SMA | ||
Adapter Type A SMA | ||
Adapter Type B SMA | ||
Gender A Male | ||
Gender B Female | ||
Impedance 50Ω | ||
Body Orientation Straight | ||
Operating Frequency 6GHz | ||
Contact Plating Gold | ||
Length 17.2mm | ||
Body Plating Gold | ||
Cable Type Coaxial | ||
Contact Material Copper | ||
- COO (Country of Origin):
- CN
RS PRO Straight SMA Coaxial Adapter, SMA Plug to SMA Socket, 6 GHz
The RS PRO straight SMA (sub miniature A) Female to SMA male coaxial adapter is designed for the efficient and secure connection of coaxial cable assemblies.
The RS PRO coaxial adapter is ideal for applications that require connections to be made and broken repeatedly protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.
The RS PRO coax adapter features PTFE insulation with gold-plated Copper contacts for excellent wear resistance and at only 17.2mm long this SMA adapter is ideal for hard to access or space restricted areas.
Coaxial adapters are suited to a wide range of industries and applications and are most commonly used in the radio and television industry, WiFi applications and equipment, GPS and antennas.
The RS PRO coaxial adapter is ideal for applications that require connections to be made and broken repeatedly protecting the connectors by shifting the force to the adaptor. Other applications can include repairs to devices, panel passthroughs and connection extensions.
The RS PRO coax adapter features PTFE insulation with gold-plated Copper contacts for excellent wear resistance and at only 17.2mm long this SMA adapter is ideal for hard to access or space restricted areas.
Coaxial adapters are suited to a wide range of industries and applications and are most commonly used in the radio and television industry, WiFi applications and equipment, GPS and antennas.
Features and benefits
- SMA Plug to SMA Socket
- Straight orientation
- 17.2mm
- Impedance of 50Ω
- Working Voltage of 335V
- Insulation resistance of up to 1000MΩ
- Operating temperature range of -45°C to +125°C
Features and benefits
Approvals and Standards: CE, ROHS
