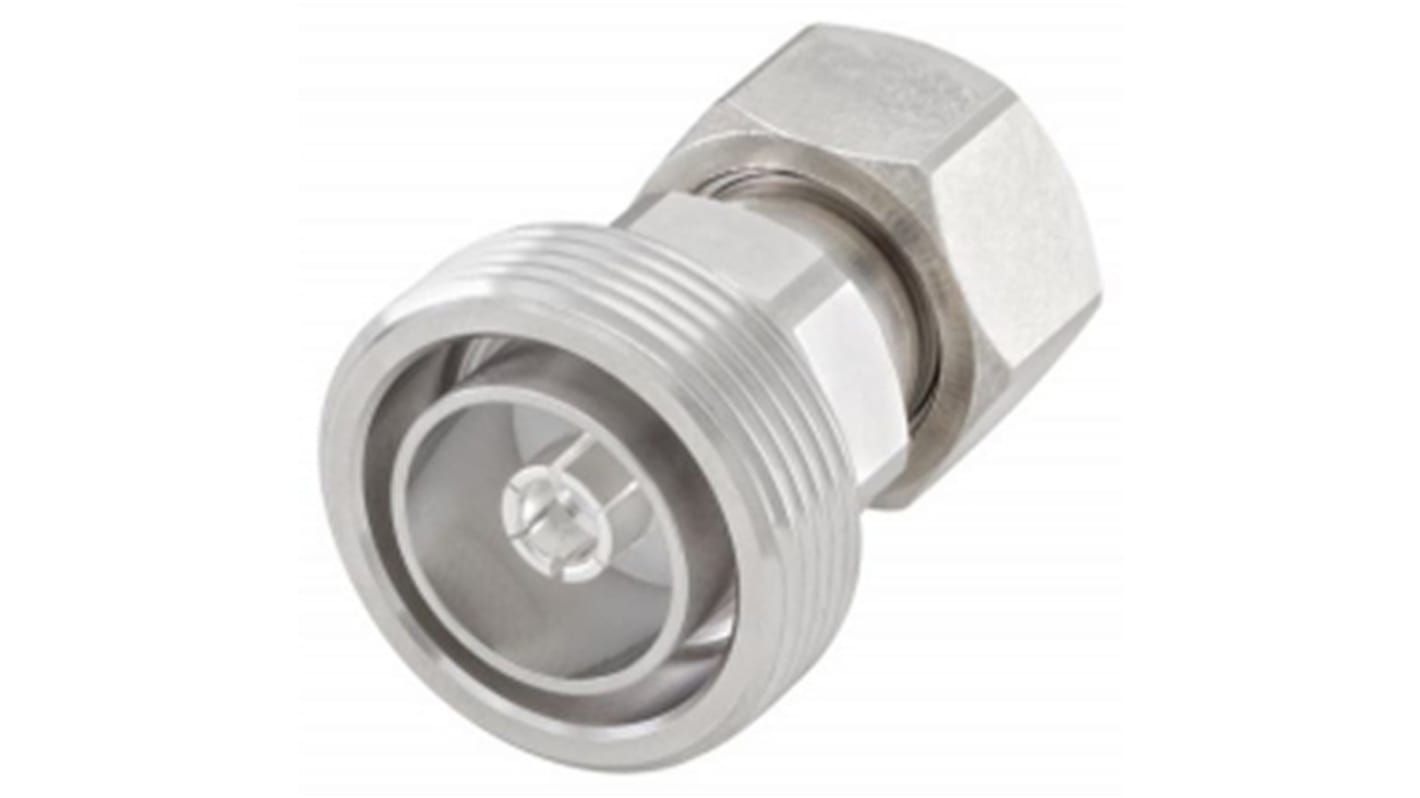

Rosenberger Straight 50Ω Coax Adapter 7/16 Socket to 4.3-10 Plug 8.3GHz

View all Coaxial Adapters
Bulk discount available

Subtotal (1 unit)*

£46.22

(exc. VAT)

£55.46

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
1 - 4£46.22
5 - 9£41.60
10 - 19£37.81
20 - 49£34.67
50 +£31.98

*price indicative

RS Stock No.:
136-7732
Mfr. Part No.:
60K164-S00N1
Brand:
Rosenberger
Find similar products by selecting one or more attributes.
Select all

Brand

Rosenberger

Adapter Type

4.3-10 Plug to 7/16 Jack

Adapter Type A

7/16

Adapter Type B

4.3-10

Gender A

Female

Gender B

Male

Impedance

50Ω

Body Orientation

Straight

Operating Frequency

8.3GHz

Contact Plating

Silver/White Bronze

Length

39.7mm

Body Plating

White Bronze

Cable Type

Coaxial

Contact Material

Beryllium Copper, Brass

COO (Country of Origin):
HU

Rosenberger 4.3-10 RF Coaxial Cable Adapters


4.3- 10 RF coaxial cable adapters with a compact, lightweight design and interface according to IEC 61169-54. The footprint of these 4.3- 10 adapters is 40% smaller than 7-16 connectors making them ideal for use in applications where space is limited. These 4.3-10 coaxial cable adapters have a high electrical performance and a low PIM (Passive Intermodulation) independent of torque. The electrical and mechanical planes of these RF coaxial cable adapters have been separated resulting in a low coupling torque for easy connection. The body of these coaxial cable adapters has a white bronze plating that provides protection against oxidization.

These RF coaxial cable adapters are available with In-Series or Inter-Series configurations and enable the connection of different RF interfaces.

Features and Benefits


• Interface according to IEC 61169-54
• Low PIM and high electrical performance
• Compact and lightweight design
• Small foot print
• Low coupling torque
• Easy installation
• Outstanding insertion/return loss
• White bronze plated body for protection against oxidization

Product Application Information


These 4.3-10 RF coaxial cable connectors are designed to meet the increasing performance needs of mobile communications applications. Their compact design means that they are able to support the ongoing space reduction requirements of infrastructure equipment
