Renesas Electronics RC32504A-EVKGNA#0, FemtoClock 2 Evaluation Kit Clock Generator Evaluation Board for RC32504A for

View this category
Bulk discount available

Subtotal (1 unit)*

£623.78

(exc. VAT)

£748.54

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 2 unit(s), ready to ship
Units
Per unit
1 - 1£623.78
2 +£592.59

*price indicative

RS Stock No.:
230-6595
Mfr. Part No.:
RC32504A-EVKGNA#0
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Clock/Timer Function

Clock Generator

Kit Classification

Evaluation Board

For Use With

RC32504A

Featured Device

RC32504A

Kit Name

FemtoClock 2 Evaluation Kit

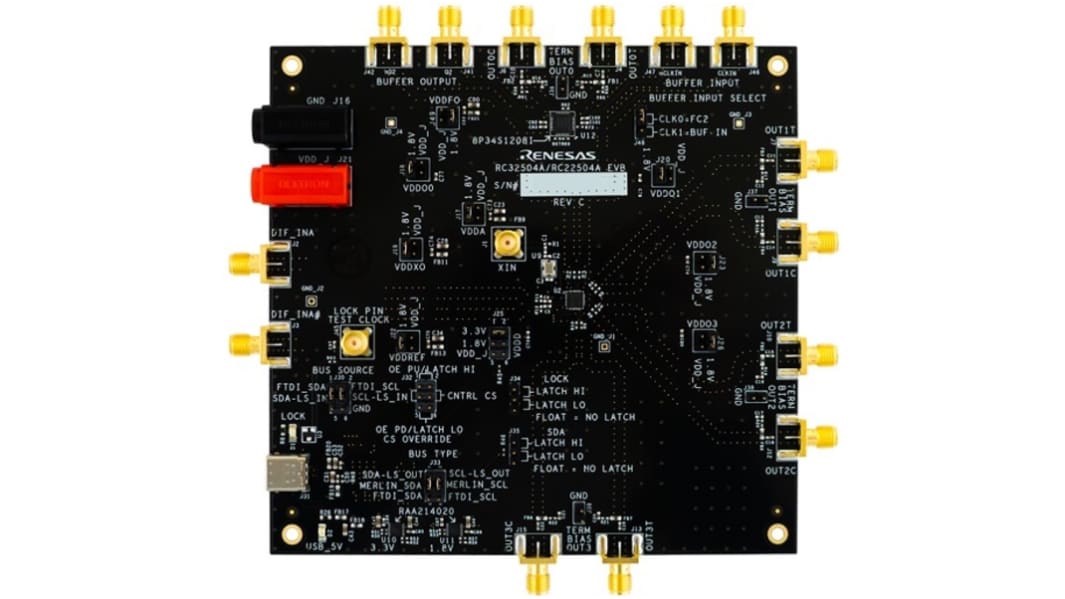

The Renesas Electronics RC32504A evaluation board (EVB) is designed to help users evaluate the RC32504A and RC22504A Clock Generators, also known as FemtoClock 2. It supports Jitter Attenuator and Synthesizer functionality, and the RC22504A supports only Synthesizer functionality. When the evaluation board (EVB) is connected via USB to the user’s computer running the Renesas’ RICBox™ Software, FemtoClock 2 can be configured and programmed to generate frequencies with best-in-class performance. FemtoClock 2 has four output pairs that can be programmed to CMOS style, LVDS style, or HCSL style outputs.

Develop configurations with Renesas RICBox software and upload to the EVB through USB
Can be powered from the USB connection
EVB is a combination evaluation with Renesas Low Noise power supply regulators and Renesas Low Noise fan-out buffer
Clock output pairs are AC coupled and can be connected directly to test equipment through coaxial cables
