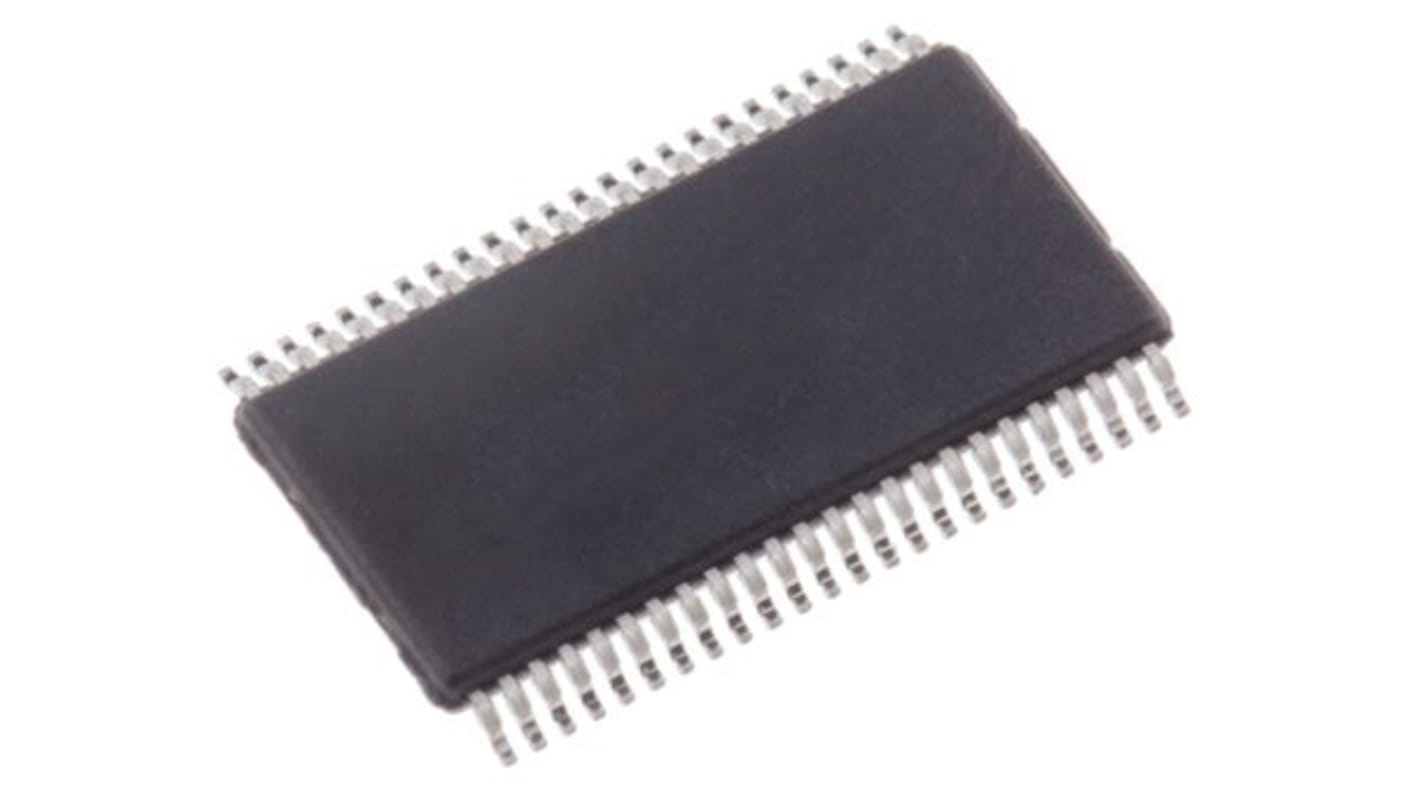

Renesas Electronics 9FG108EGILF Frequency Synthesiser 48-Pin 4.6 V TSSOP
- RS Stock No.:
- 250-3497P
- Mfr. Part No.:
- 9FG108EGILF
- Brand:
- Renesas Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 250-3497P
- Mfr. Part No.:
- 9FG108EGILF
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Frequency Synthesiser | |
| Maximum Output Frequency | 25MHz | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 48 | |
| Maximum Input Frequency | 22.5MHz | |
| Maximum Supply Voltage | 4.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Height | 1.2mm | |
| Width | 6.2 mm | |
| Length | 12.6mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Frequency Synthesiser | ||
Maximum Output Frequency 25MHz | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 48 | ||
Maximum Input Frequency 22.5MHz | ||
Maximum Supply Voltage 4.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Height 1.2mm | ||
Width 6.2 mm | ||
Length 12.6mm | ||
Automotive Standard No | ||
The Renesas Electronics frequency generator provides 8 differential HCSL output pairs. It can be used to drive PCeGen1/2, SATA and USB3.0 devices. The part can use either a 14.31818 MHz or 25 MHz crystal. It can also be driven by a reference input clock instead of a crystal. It provides outputs with cycle-to-cycle jitter of less than 50 ps and output-to-output skew of less than 65 ps.
It generates common frequencies from 14.318MHz or 25MHz
It has 8 to 0.7V current-mode HCSL output pairs available
It supports Serial-ATA at 100MHz
Two spread spectrum modes are -0.5% down spread and +/-0.25% centre spread for Lower EMI
It has 31.5KHz spread modulation rate
Unused outputs may be disabled in either driven or Hi-Z state for power management
I-temp version available which supports embedded applications
