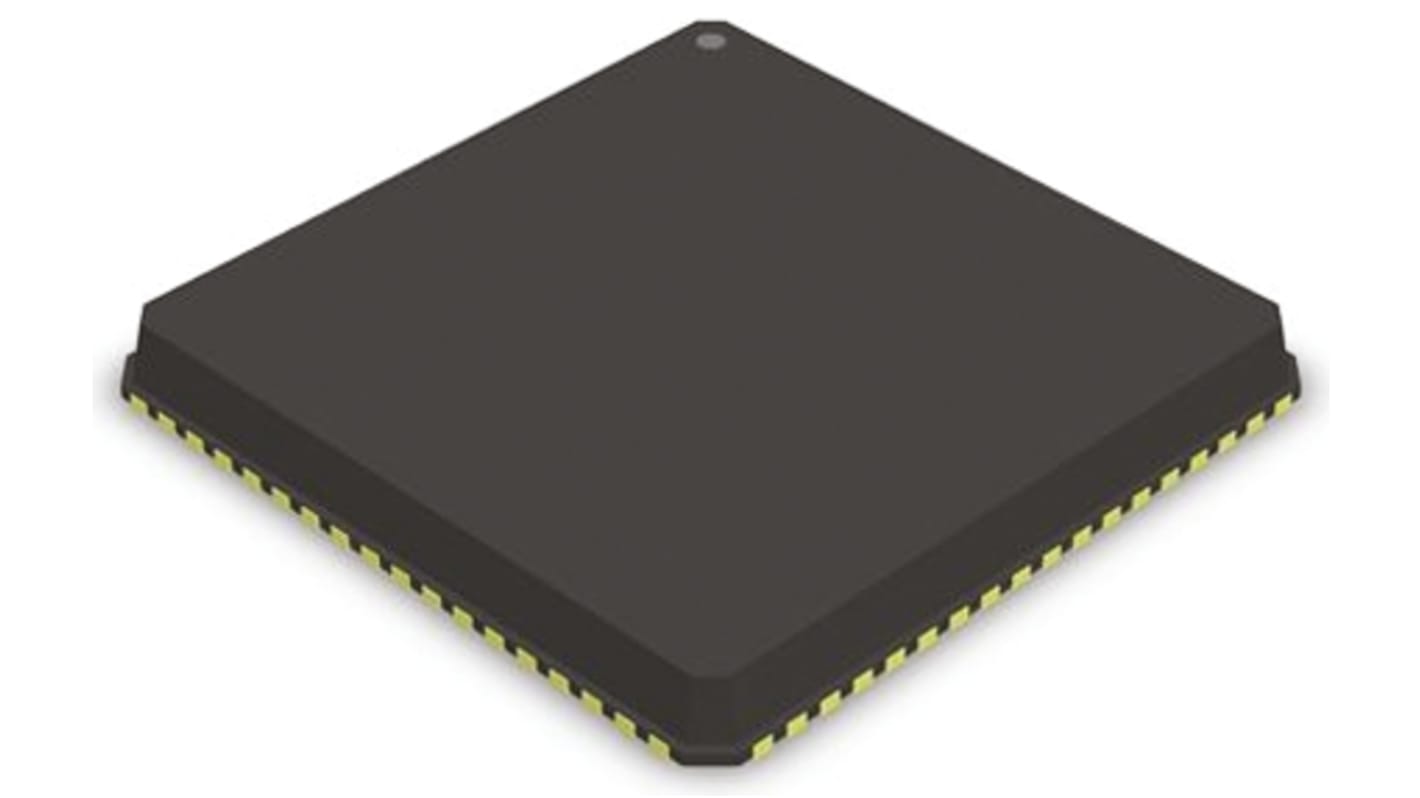

AD9554BCPZ, Clock Distribution Circuit CMOS, HCSL, LVDS, LVPECL, 2-Input, 72-Pin LFCSP VQ
- RS Stock No.:
- 831-9119
- Mfr. Part No.:
- AD9554BCPZ
- Brand:
- Analog Devices
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 831-9119
- Mfr. Part No.:
- AD9554BCPZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Logic Family | CMOS, HCSL, LVDS, LVPECL | |
| Logic Function | Clock Distribution, Translator | |
| Input Signal Type | CMOS, LVDS | |
| Output Logic Level | HCSL, LVDS, LVPECL | |
| Operation Mode | Differential, Single Ended | |
| Number of Clock Inputs | 2 | |
| Mounting Type | Surface Mount | |
| Package Type | LFCSP VQ | |
| Pin Count | 72 | |
| Dimensions | 10.1 x 10.1 x 0.95mm | |
| Length | 10.1mm | |
| Width | 10.1mm | |
| Height | 0.95mm | |
| Maximum Operating Supply Voltage | 2.625 V | |
| Minimum Operating Supply Voltage | 1.47 V | |
| Maximum Output Frequency | 941MHz | |
| Minimum Output Frequency | 430kHz | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Logic Family CMOS, HCSL, LVDS, LVPECL | ||
Logic Function Clock Distribution, Translator | ||
Input Signal Type CMOS, LVDS | ||
Output Logic Level HCSL, LVDS, LVPECL | ||
Operation Mode Differential, Single Ended | ||
Number of Clock Inputs 2 | ||
Mounting Type Surface Mount | ||
Package Type LFCSP VQ | ||
Pin Count 72 | ||
Dimensions 10.1 x 10.1 x 0.95mm | ||
Length 10.1mm | ||
Width 10.1mm | ||
Height 0.95mm | ||
Maximum Operating Supply Voltage 2.625 V | ||
Minimum Operating Supply Voltage 1.47 V | ||
Maximum Output Frequency 941MHz | ||
Minimum Output Frequency 430kHz | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Clock Buffers, Analog Devices
Clock Generators/Buffers
