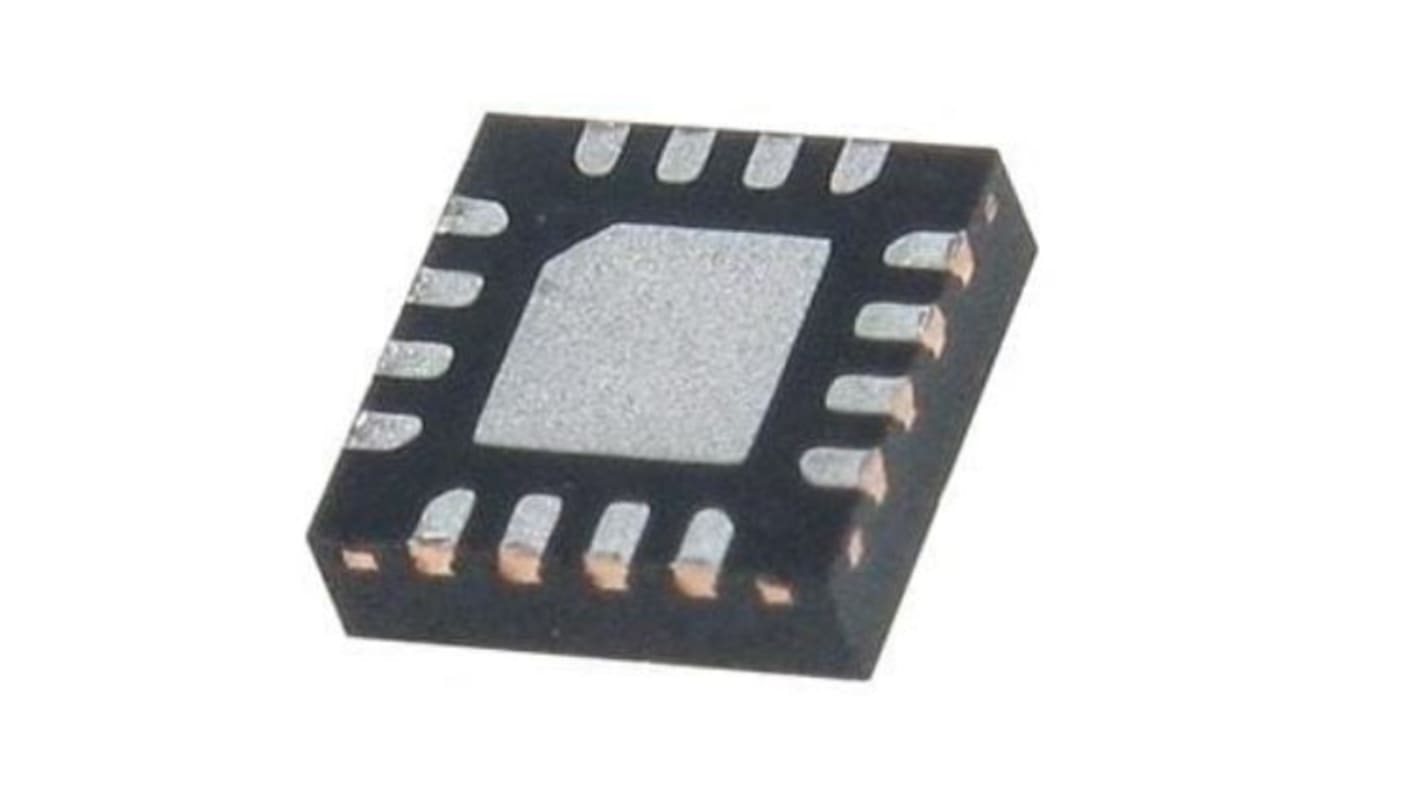

8S89833AKILF, Clock Buffer LVDS, 4-Input, 16-Pin VFQFN

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
216-6228
Mfr. Part No.:
8S89833AKILF
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

LVDS

Logic Function

Clock Buffer

Input Signal Type

LVDS

Number of Clock Inputs

4

Package Type

VFQFN

Pin Count

16

The Renesas Electronics 8S89833 is a high speed 1-to-4 Differential-to-LVDS Fanout Buffer with Internal Termination. The 8S89833 is optimized for high speed and very low output skew, making it suitable for use in demanding applications such as SONET, 1 Gigabit and 10 Gigabit Ethernet, and Fibre Channel. The internally terminated differential input and VREF_AC pin allow other differential signal families such as LVPECL, LVDS, and CML to be easily interfaced to the input with minimal use of external components.

Four differential LVDS outputs
IN, nIN input pair can accept the following differential input levels:
LVPECL, LVDS, CML
Output frequency: 2GHz
Cycle-to-cycle jitter, RMS: 3.5ps (maximum)
Additive phase jitter, RMS: 0.03ps (typical)
Output skew: 30ps (maximum)
Part-to-part skew: 200ps (maximum)
Propagation Delay: 600ps (maximum)
