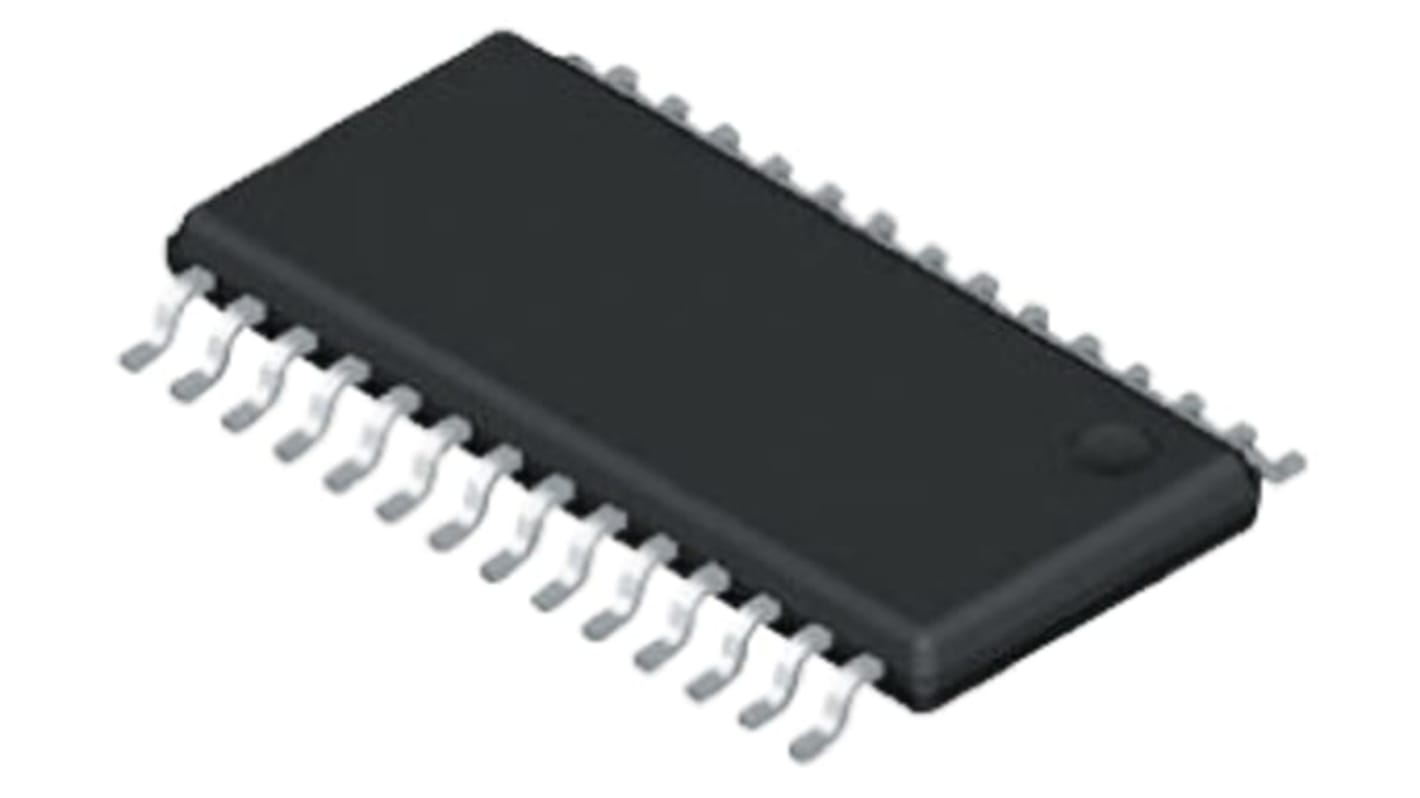

Renesas Electronics 9DB106BGLFT Buffer 28-Pin TSSOP
- RS Stock No.:
- 235-8709P
- Mfr. Part No.:
- 9DB106BGLFT
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£203.00
(exc. VAT)
£243.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
50 - 98 | £4.06 |
100 - 248 | £3.525 |
250 - 998 | £3.335 |
1000 + | £2.635 |
*price indicative
- RS Stock No.:
- 235-8709P
- Mfr. Part No.:
- 9DB106BGLFT
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Renesas Electronics | |
Maximum Supply Current | 150 mA | |
Maximum Input Frequency | 105MHz | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Pin Count | 28 | |
Dimensions | 9.70 x 4.40 x 1.00mm | |
Length | 9.7mm | |
Width | 4.4mm | |
Height | 1mm | |
Maximum Operating Supply Voltage | 3.465 V | |
Maximum Operating Temperature | 70 °C | |
Maximum Output Frequency | 105MHz | |
Minimum Operating Supply Voltage | 3.135 V | |
Minimum Operating Temperature | 0 °C | |
Select all | ||
---|---|---|
Brand Renesas Electronics | ||
Maximum Supply Current 150 mA | ||
Maximum Input Frequency 105MHz | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 28 | ||
Dimensions 9.70 x 4.40 x 1.00mm | ||
Length 9.7mm | ||
Width 4.4mm | ||
Height 1mm | ||
Maximum Operating Supply Voltage 3.465 V | ||
Maximum Operating Temperature 70 °C | ||
Maximum Output Frequency 105MHz | ||
Minimum Operating Supply Voltage 3.135 V | ||
Minimum Operating Temperature 0 °C | ||
The Renesas Electronics zero delay buffer supports PCIe Gen1 and Gen2 clocking requirements. The is driven by a differential SRC output pair from an IDT compliant main clock generator. It attenuates jitter on the input clock and has a selectable PLL bandwidth to maximize performance in systems with or without Spread spectrum clocking. An SMBus interface allows control of the PLL bandwidth and bypass options, while 2 clock request pins make the suitable for Express card applications.
Selectable pll bandwidth minimizes jitter peaking in downstream plls
Spread spectrum compatible tracks spreading input clock for low emi
Smbus interface unused outputs can be disabled
Spread spectrum compatible tracks spreading input clock for low emi
Smbus interface unused outputs can be disabled
