FLIR CM83 Multifunction Clamp Clamp Meter, Max Current 600A ac, 600A dc CAT III 1000 V, CAT IV 600 V

  • RS Stock No. 848-1343
  • Mfr. Part No. CM83
  • Brand FLIR
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): TW
Product Details

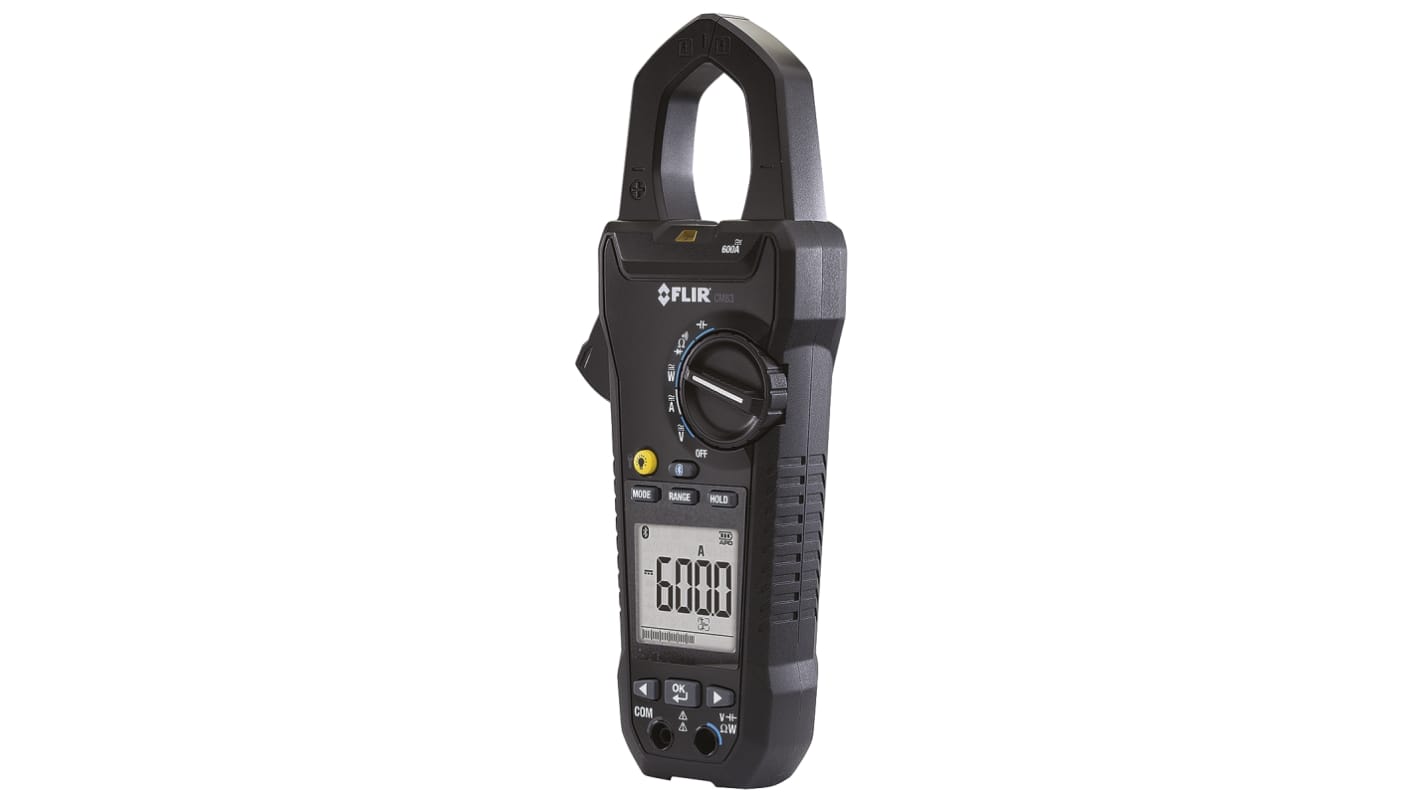

FLIR CM83 600A True RMS Power Clamp

The FLIR CM83 is a Power Clamp Meter engineered with advanced power analysis and VFD filtering functions required by electrical troubleshooters.

VFD Mode provides superior accuracy for working on
VFD-controlled equipment
Advanced power efficiency and harmonics measurements for system level performance analysis
Powerful Worklights not only assist with clamping but are bright enough to serve as a primary worklight
FLIR Tools Mobile connects the FLIR CM83 to your compatible smartphone and tablet via Bluetooth
METERLiNK® technology wirelessly integrates electrical readings on your infrared image with METERLiNK-enabled FLIR Thermal Cameras
Jaw Opening: 37 mm
AC/DC Current: 600 A
AC/DC Voltage: 1000 V
AC VFD Voltage: 1000 V
Harmonics: 1st-25th Order
Inrush Current: 1000 ACA
Active Power: 10 kW to 600 kW
Diode Test
Capacitance: 3.999 mF
Resistance: 99.99 kΩ
Continuity Threshold
Frequency: 2000 Hz to 9999 kHz

Standards

CAT IV-600V, CAT III-1000V

Supplied with

Clamp Meter, 6 x AAA batteries, user manual/CD, CAT IV Silicon test leads

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 600A ac
Absolute Maximum DC Current Measurement 600A dc
Absolute Maximum AC Voltage Measurement 1000V ac
Absolute Maximum DC Voltage Measurement 1000V dc
Absolute Maximum Resistance Measurement 99.99kΩ
Connectivity Bluetooth
Model Number CM83
Best DC Current Accuracy ±2 %
Clamp Meter Type Multifunction Clamp
Best AC Current Accuracy ±2 %
Best AC Voltage Accuracy ±0.7 %
Best DC Voltage Accuracy ±0.7 %
Safety Category CAT III 1000 V, CAT IV 600 V
Best Resistance Measurement Accuracy ±1 %
Display Type LED
Power Source Battery
Non-Contact Voltage Detector Yes
Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
True RMS Yes
Jaw Capacity Busbars 37mm
Safety Category Level CAT III, CAT IV
Safety Category Voltage 600 V, 1000 V
Battery Type 6 x AAA
4 In stock for FREE next working day delivery
Price Each
£ 328.00
(exc. VAT)
£ 393.60
(inc. VAT)
Units
Per unit
1 +
£328.00
