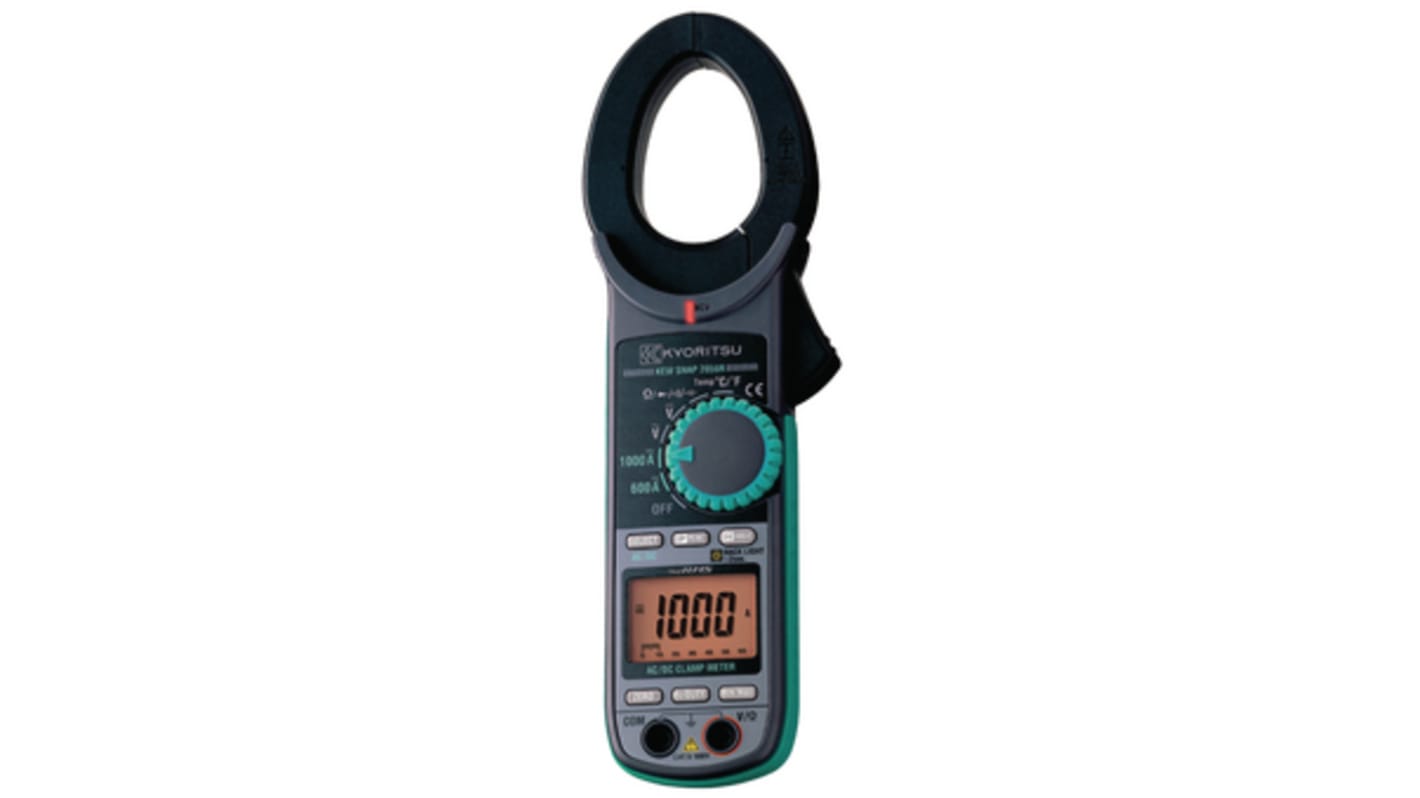

Kyoritsu KEW 2056R Clamp Meter, 1000 A 1 kA 600 V dc 600 V ac CAT IV
- RS Stock No.:
- 283-7583
- Distrelec Article No.:
- 110-71-730
- Mfr. Part No.:
- KEW 2056R
- Brand:
- Kyoritsu
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£270.20
(exc. VAT)
£324.24
(inc. VAT)
- RS Stock No.:
- 283-7583
- Distrelec Article No.:
- 110-71-730
- Mfr. Part No.:
- KEW 2056R
- Brand:
- Kyoritsu
Select all | Attribute | Value |
|---|---|---|
| Brand | Kyoritsu | |
| Product Type | Clamp Meter | |
| Resistance Resolution | 60mΩ | |
| Maximum DC Current Measurement | 1000A | |
| Maximum AC Voltage Measurement | 600V ac | |
| Maximum DC Voltage Measurement | 600V dc | |
| Model Number | KEW 2056R | |
| DC Current Resolution | 0.1A | |
| DC Voltage Accuracy | 1 % | |
| AC Current Accuracy | 2 % | |
| DC Current Accuracy | 1.5 % | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| AC Voltage Accuracy | 1.5 % | |
| Minimum Operating Temperature | 0°C | |
| AC Current Resolution | 0.1A | |
| Maximum Operating Temperature | 40°C | |
| Height | 36mm | |
| Width | 82mm | |
| Standards/Approvals | No | |
| Weight | 310g | |
| Length | 254mm | |
| True RMS | Yes | |
| Power Source | Battery | |
| Safety Category Voltage | 600V ac | |
| Battery Type | AAA | |
| Safety Category Level | CAT IV | |
| Maximum AC Current Measurement | 1kA | |
| Display Type | LCD | |
| Maximum Conductor Size | 40mm | |
| Select all | ||
|---|---|---|
Brand Kyoritsu | ||
Product Type Clamp Meter | ||
Resistance Resolution 60mΩ | ||
Maximum DC Current Measurement 1000A | ||
Maximum AC Voltage Measurement 600V ac | ||
Maximum DC Voltage Measurement 600V dc | ||
Model Number KEW 2056R | ||
DC Current Resolution 0.1A | ||
DC Voltage Accuracy 1 % | ||
AC Current Accuracy 2 % | ||
DC Current Accuracy 1.5 % | ||
Clamp Meter Type AC/DC Clamp Meter | ||
AC Voltage Accuracy 1.5 % | ||
Minimum Operating Temperature 0°C | ||
AC Current Resolution 0.1A | ||
Maximum Operating Temperature 40°C | ||
Height 36mm | ||
Width 82mm | ||
Standards/Approvals No | ||
Weight 310g | ||
Length 254mm | ||
True RMS Yes | ||
Power Source Battery | ||
Safety Category Voltage 600V ac | ||
Battery Type AAA | ||
Safety Category Level CAT IV | ||
Maximum AC Current Measurement 1kA | ||
Display Type LCD | ||
Maximum Conductor Size 40mm | ||
RoHS Status: Exempt
