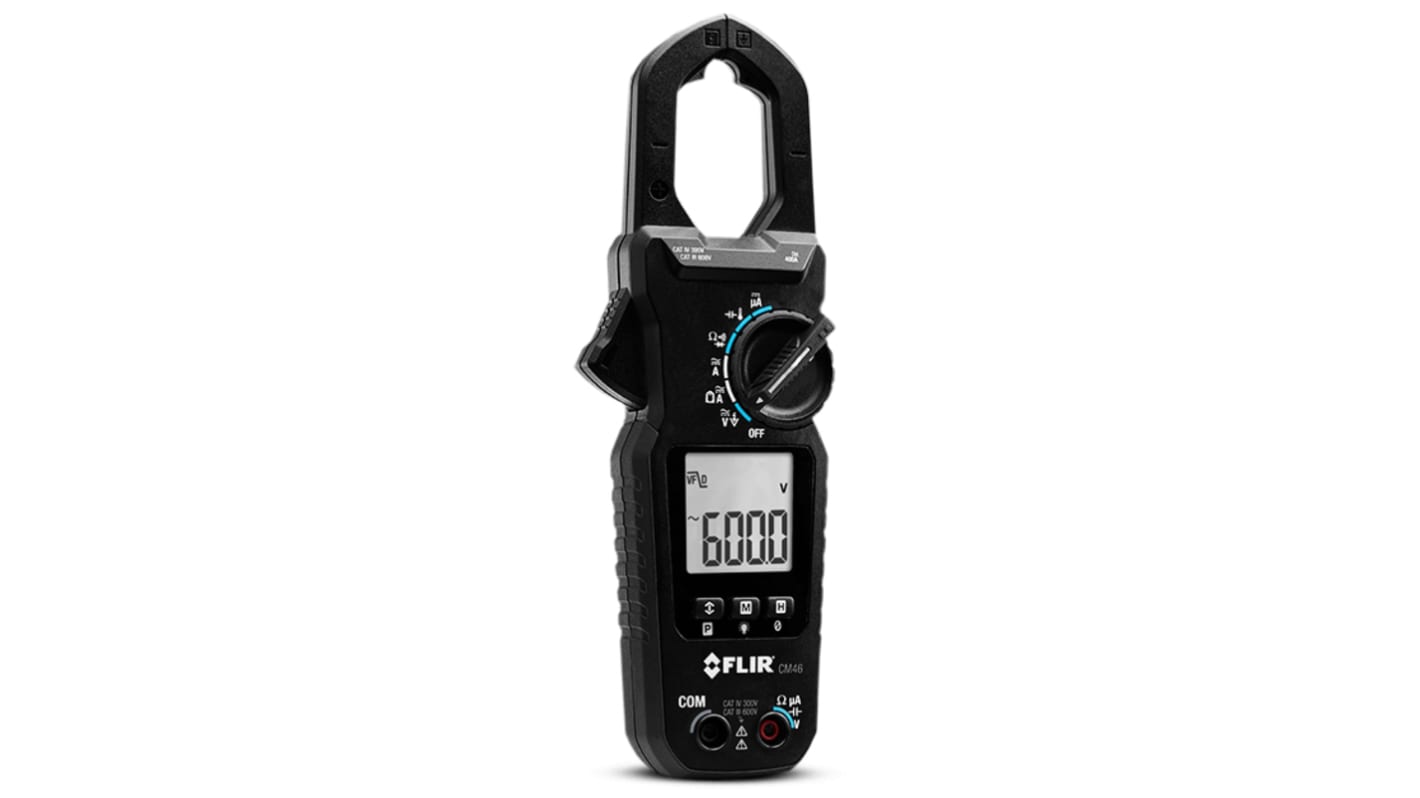

FLIR CM4X Multifunction Clamp Clamp Meter, Max Current 400A ac, 60A dc CAT III 600V, CAT IV 300V With RS Calibration

  • RS Stock No. 179-4798
  • Mfr. Part No. CM46
  • Brand FLIR
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

FLIR CM46 400A AC/DC Clamp Meter

From FLIR, the CM46 True RMS 400A clamp meter with low pass filter and Accu-Tip™ technology. The professional, high precision clamp meter is robust, reliable and ideal for both residential and commercial electricians. The multi-function clamp meter is the highest spec’d meter from the FLIR CM4X series. Not only does it measure up to 400A AC and DC it’s also a fully functioning digital Multimeter. The CM46 is capable of measuring AC/DC voltage, frequency, resistance, capacitance, diode and continuity. The K type thermocouple probe also allows temperature readings. The CM46 also performs AC+DC voltage measurements and clamp-on DC measurements.

The CM46 multi-function meter has been ergonomically designed for your comfort. With moulded handgrips and a slimline design, the CM46 clamp meter fits easily and snugly in your hand. A 30mm narrow jaw allows for easy access to smaller gauge wires and cables in cramped cabinets and spaces. It’s also been drop tested to 2 meters giving you complete peace of mind.

Easy to operate and packed with a range of features and modes, the CM46 clamp meter is THE All-in-one essential tool for every engineer.

What is ACCU-TIP?

ACCU-TIP Technology provides accurate and precise amperage measurements on smaller-gauged cables and wires, as low as (±0.1 units) The CM46 provides;

  • 60A Accu-Tip Clamp-On AC current

  • 400A Clamp-On DC Current

  • 60A Accu-Tip Clamp-On DC current

Features and Benefits

  • 600 V AC/DC voltage

  • 400 A AC and DC current

  • NCV (Non-Contact Voltage Detector)

  • True RMS detector

  • Frequency 1.00kHz, resistance 60.00kΩ, and diode

  • Capacitance 2500 μF

  • Temperature -40˚C to 400˚C (-40˚F to 752 ˚C)

  • Data hold, zero function and Low pass filter

  • MIN/MAX/AVG on frequency and diode

  • Large built-in backlit LCD screen

  • 30mm jaw clamp opening

  • Robust, rugged construction

  • CAT IV-300V & CAT III-600V safety category

Applications

Power clamp meters are essential tools for electricians, engineers, and technicians to be able to safely measure current and voltage. Clamp meters allow electrical measurements to be taken and provide valuable information. They can also help diagnose if a piece of equipment is not operating correctly. Some of the most common applications and environments are

  • Home inspections and testing

  • Electrical energy

  • Facility maintenance and management

  • Utilities and maintenance

FAQ’s

Q: Are there any additional accessories available for the CM46? A: Yes, a range of compatible optional accessories are available for the FLIR CM46 clamp meter

  • 187-4882 for the TA03-KIT NIMH Rechargeable Battery Kit

  • 187-4894 for the TA80 CAT IV Silicone Test Lead Set

  • 123-6703 for the TA15 Universal Soft Sided Case

  • 187-4892 for the TA70 CAT IV Insulated Alligator Probes

Supplied with

CM46 clamp meter, test lead set, quick start guide, soft carrying pouch and K type thermocouple

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 400A ac
Absolute Maximum DC Current Measurement 60A dc
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 60kΩ
Model Number CM4X
Calibrated RSCAL
Best DC Current Accuracy ±2 %
Clamp Meter Type Multifunction Clamp
Best AC Current Accuracy ±2 %
Best AC Voltage Accuracy ±1 %
Best DC Voltage Accuracy ±1 %
Height 37mm
Non-Contact Voltage Detector Yes
Width 76mm
Length 223mm
Maximum Conductor Size 30mm
Jaw Capacity Busbars 30mm
Minimum Operating Temperature -10°C
Power Source Battery
Battery Type AAA
Safety Category Voltage 300 V, 600 V
Maximum Operating Temperature +50°C
Display Type Backlit LCD
True RMS Yes
Best Resistance Measurement Accuracy ±1 %
Safety Category CAT III 600V, CAT IV 300V
Best Temperature Measurement Accuracy ±1 %
Absolute Maximum Temperature Measurement +400 °C, +752 °F
Safety Category Level CAT III, CAT IV
Dimensions 223 x 76 x 37mm
3 In stock for delivery within 2 working days
Price Each
£ 247.00
(exc. VAT)
£ 296.40
(inc. VAT)
Units
Per unit
1 +
£247.00
Not available for guaranteed pre 9am/10am delivery
