RS PRO ICM134 Current Tester, Temperature, Voltage Tester Clamp Meter, Max Current 600A ac CAT II 1000 V, CAT III 600 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

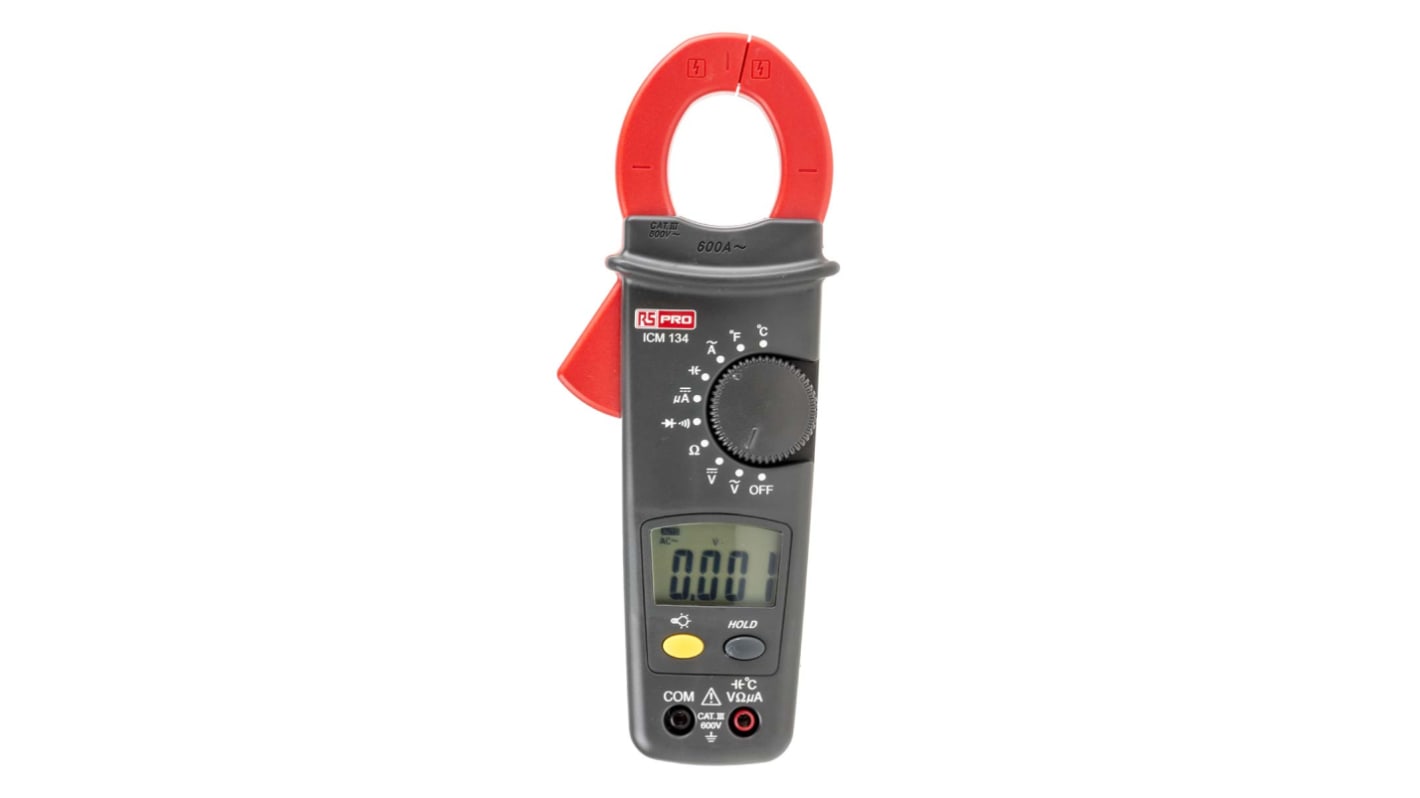

RS Pro ICM134 HVAC Current Clampmeter

From RS PRO, this current clampmeter features multimeter and thermometer functions, and is ideally suited to HVAC and electrical maintenance applications up to 600 A ac.

Battery-powered for maximum portability, and with a large backlit screen, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.

It is also supplied in a belt pouch carry case to keep the clampmeter safe and secure during transit and close at hand when working.

Features and Benefits
• 4000 Count large backlit LCD display
• 750 V ac / 1000 dc voltage measurement
• 600 A ac current measurement
• 4000 μA dc current measurement ideal for flame sensor testing
• 40 MΩ resistance measurement.
• 4 mF capacitance measurement
• -40°C → 400°C type K thermocouple temperature measurement input & sensor
• Continuity & diode test
• Display hold function
• 32 mm conductor jaw size
• Complies with IEC 61010-1 CAT III 600 V, CAT II 1000 V

Applications

Current clamp meters are designed for current measurement in electrical testing, and combine a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC current and voltage. This has the advantage of allowing electricians to take a reading from a conductor without touching it, which is both more convenient and safer than other methods.

This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.

As this clamp meter also features temperature measurement and probe accessories, it is ideal for HVAC installation and maintenance applications.

Why RS PRO?

RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Supplied with
9 V battery, carry case, test leads, type K thermocouple adapter and type K bead sensor, vinyl belt pouch and users

Supplied with

9 V battery, carry case, test leads, type K thermocouple adapter and type K bead sensor, vinyl belt pouch and users manual.

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 600A ac
Absolute Maximum AC Voltage Measurement 750V ac
Absolute Maximum Resistance Measurement 40MΩ
Model Number ICM134
Calibrated UKAS
Best DC Current Accuracy ±1% + 2 Digits
Clamp Meter Type Current Tester, Temperature, Voltage Tester
Best AC Current Accuracy ±1.9% +5 digits
Best AC Voltage Accuracy ±1.5% + 5 Digits
Best DC Voltage Accuracy ±0.9% + 2 Digits
Power Source Battery
Safety Category Voltage 600 V, 1000 V
Battery Type 9V Alkaline
Maximum Conductor Size 32 (Dia.)mm
Battery Life 200 h
Safety Category Level CAT II, CAT III
Best Resistance Measurement Accuracy ±0.7% + 2 Digits
Safety Category CAT II 1000 V, CAT III 600 V
Display Type LCD
Best Temperature Measurement Accuracy 1 °C, 1 °F
Maximum Operating Temperature +50°C
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Resistance, Temperature
Absolute Maximum Temperature Measurement +400 °C, +1000 °F
Minimum Operating Temperature 0°C
