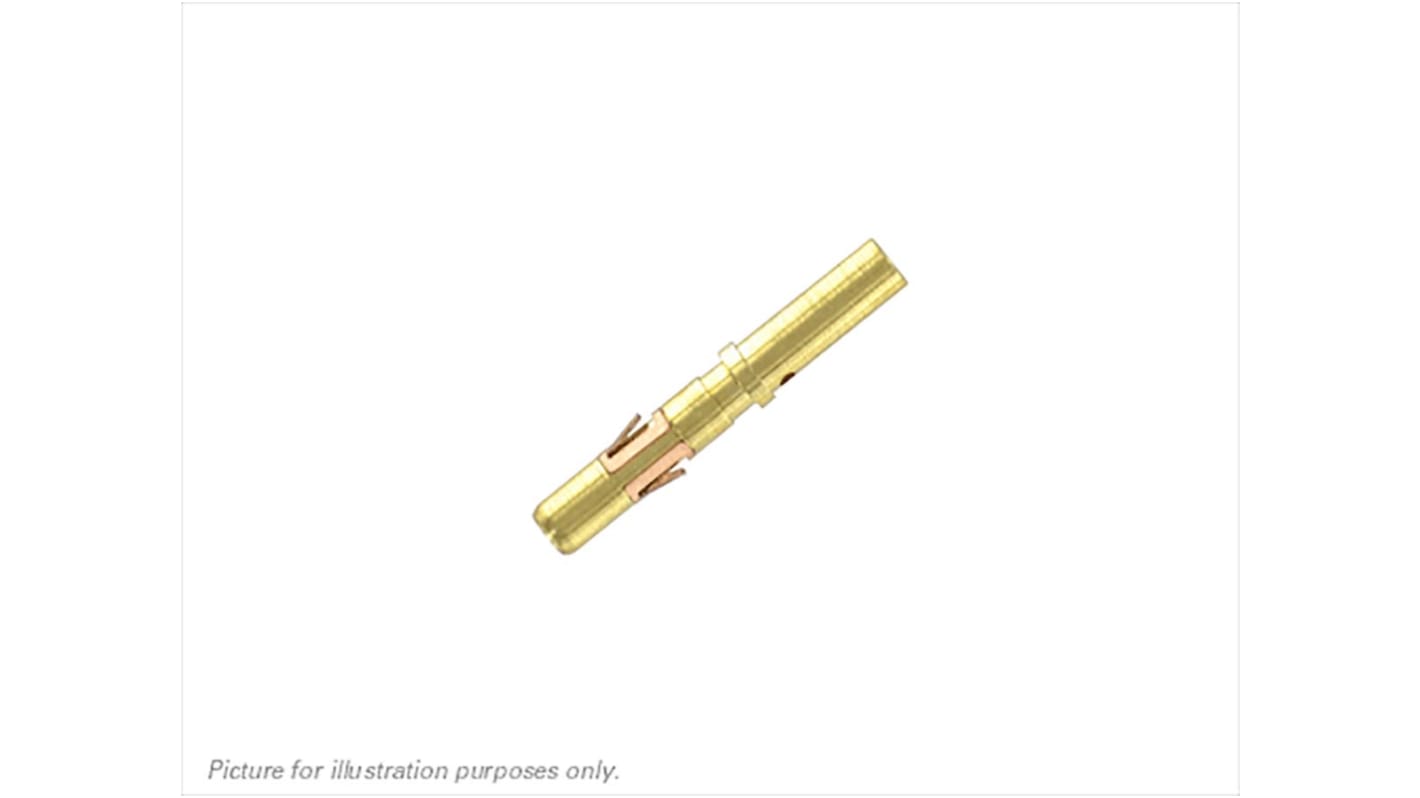

Souriau Sunbank by Eaton Female Crimp Circular Connector Contact, Contact Size 16, Wire Size 20 → 16 AWG
- RS Stock No.:
- 912-0598
- Mfr. Part No.:
- RC16M23GE7K
- Brand:
- Souriau Sunbank by Eaton
Bulk discount available
Subtotal (1 pack of 50 units)*
£85.90
(exc. VAT)
£103.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 550 unit(s) ready to ship
- Plus 750 unit(s) shipping from 09 October 2025
- Plus 500 unit(s) shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | £1.718 | £85.90 |
| 100 - 200 | £1.577 | £78.85 |
| 250 + | £1.506 | £75.30 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.68
(exc. VAT)
£2.02
(inc. VAT)
- RS Stock No.:
- 912-0598
- Mfr. Part No.:
- RC16M23GE7K
- Brand:
- Souriau Sunbank by Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Souriau Sunbank by Eaton | |
| Gender | Female | |
| Contact Size | 16 | |
| Wire Size | 20 → 16 AWG | |
| Termination Method | Crimp | |
| Series | RC | |
| For Use With | MBG Series Connector, Msx Series Connector, SMS Series Connector, SMSIP Series Connector, UTG Series Connector, UTL Series Connector, UTO Series Connector, UTP Series Connector, UTS Series Connector, UTV Series Connector | |
| Current Rating | 13A | |
| Length | 17.61mm | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Brass | |
| Maximum Contact Resistance | ≤3mΩ | |
| Mounting Type | Cable Mount | |
Select all | ||
|---|---|---|
Brand Souriau Sunbank by Eaton | ||
Gender Female | ||
Contact Size 16 | ||
Wire Size 20 → 16 AWG | ||
Termination Method Crimp | ||
Series RC | ||
For Use With MBG Series Connector, Msx Series Connector, SMS Series Connector, SMSIP Series Connector, UTG Series Connector, UTL Series Connector, UTO Series Connector, UTP Series Connector, UTS Series Connector, UTV Series Connector | ||
Current Rating 13A | ||
Length 17.61mm | ||
Contact Plating Gold over Nickel | ||
Contact Material Brass | ||
Maximum Contact Resistance ≤3mΩ | ||
Mounting Type Cable Mount | ||
- COO (Country of Origin):
- FR
Souriau Railway RC/RM Machined Contacts
From Souriau, this machined contact is designed with railway connector applications in mind. With a highly conductive copper alloy body, the contact also features a low contact resistance and excellent contact retention.
Features and Benefits:
• Gold Plated Contact
• Locking Spring
• Individual withdrawal force of 0.55N
• Contact Resistance of ≤ 3 MΩ
• Locking Spring
• Individual withdrawal force of 0.55N
• Contact Resistance of ≤ 3 MΩ
Souriau Railway RC/RM Machined Contacts
