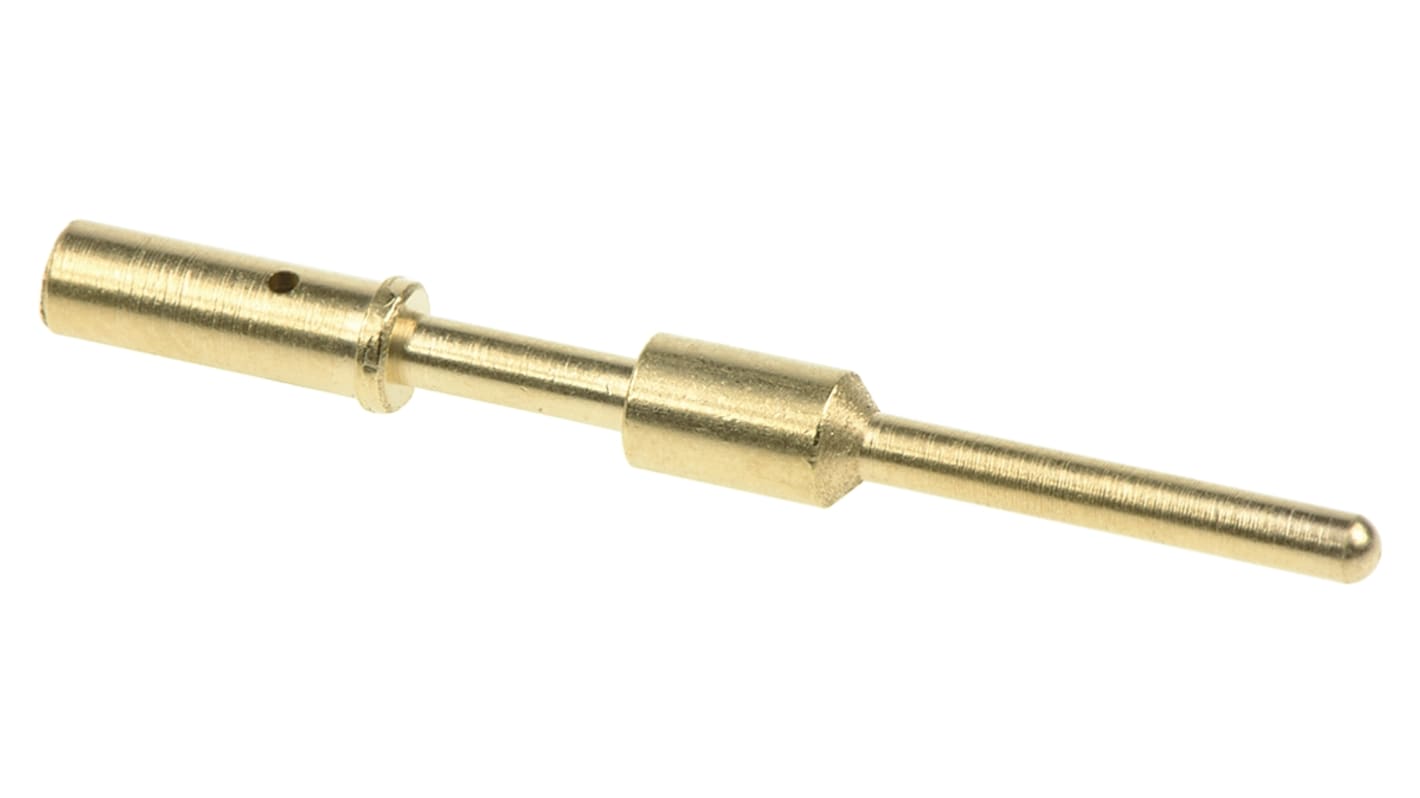

AB Connectors size 16 13A Male Crimp Circular Connector Contact, Wire size 18 16 AWG

Technical Reference
Legislation and Compliance
Non Compliant
Product Details

Contacts

Gold plated crimp contacts sizes 16 and 12, silver plated contacts for size 08
Available in 3 contact sizes, but with the added flexibility of accepting up to 3 different wire sizes for crimping
See plan form for contact key for shells

Note

For crimp tool see 314-7584 and range.

//media.rs-online.com/t_line/L341891-01.gif

Low Halogen (Black) Mil-C-5015 Bayonet Lock

Specifications
Attribute Value
Gender Male
Contact Size 16
Wire Size 18 16 AWG
Termination Method Crimp
Current Rating 13A
Length 31.75mm
Contact Plating Gold
Contact Material Copper Alloy
Minimum Operating Temperature -55°C
Maximum Operating Temperature +200°C
Mounting Type Cable Mount
4840 In stock for FREE next working day delivery
Price Each (In a Pack of 10)
£ 0.47
(exc. VAT)
£ 0.56
(inc. VAT)
Units
Per unit
Per Pack*
10 - 40
£0.47
£4.70
50 - 240
£0.424
£4.24
250 - 490
£0.381
£3.81
500 - 990
£0.343
£3.43
1000 +
£0.333
£3.33
*price indicative
