    Souriau Sunbank by Eaton Female Crimp Circular Connector Contact, Contact Size 16, Wire Size 18 → 16 AWG

    View this category
    Bulk discount available

    Price Each (In a Pack of 100)

    £0.536

    (exc. VAT)

    £0.643

    (inc. VAT)

    Select or type quantity
    300 In stock - FREE next working day delivery available*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Pack**
    100 - 100£0.536£53.60
    200 - 300£0.509£50.90
    400 +£0.488£48.80

    **price indicative

    RS Stock No.:
    190-3048
    Mfr. Part No.:
    SC16ML-11D70
    Brand:
    Souriau

    Crimp Two Piece Formed Contacts


    Suitable for UTO Series, see e.g. 557-925

    Note

    For a suitable crimp tool see stock no. 468-686

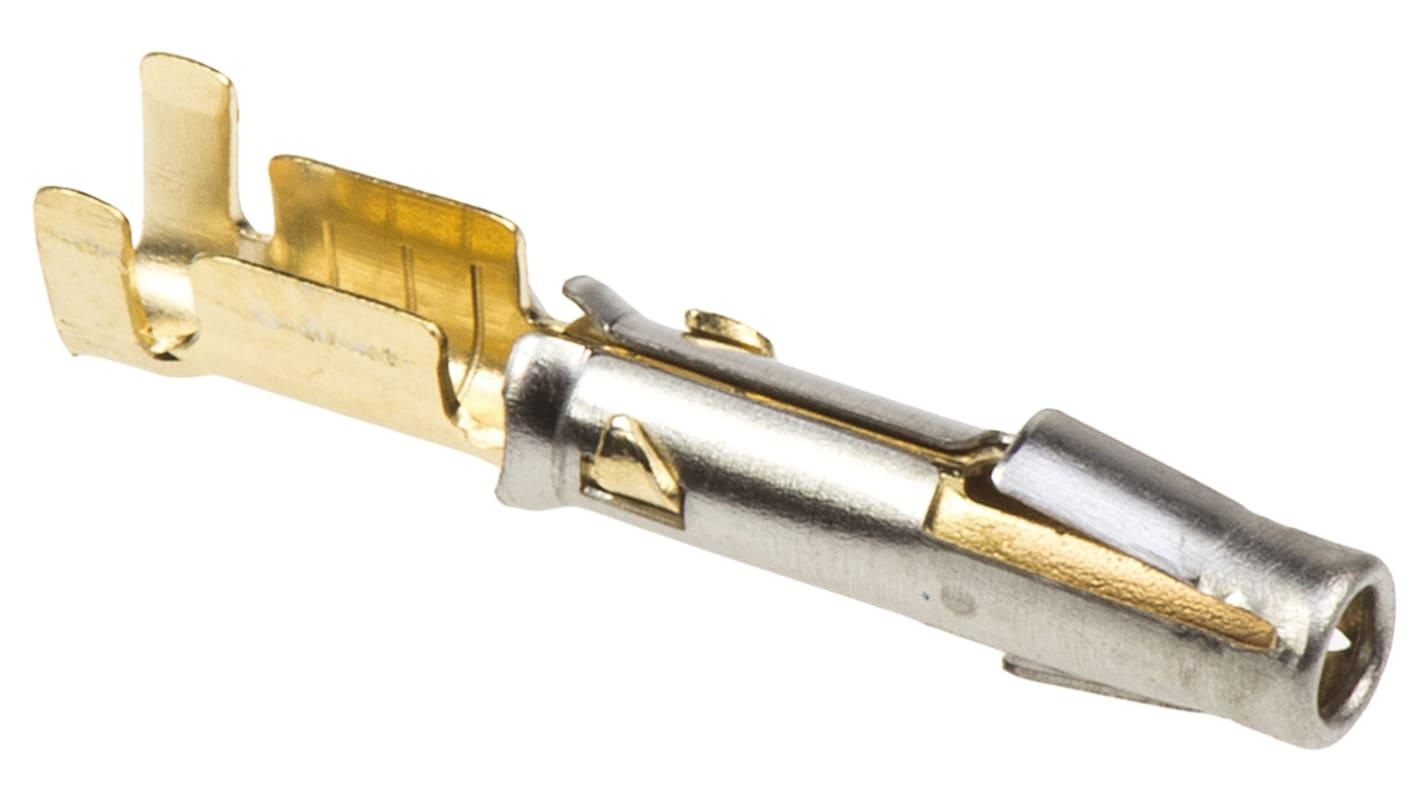

    Souriau Socket Contact


    The Souriau SC series female socket contact has a contact size of 16 and wire size ranging between 16AWG and 18AWG. This contact is made of copper alloy and has gold over nickel plating. It can be used with the Trim Trio series connectors.
    Note:
    For a suitable crimp tool see stock no. 468-686
    Souriau Trim Trio Metalok & Shielded Bantams
    Note:
    Panel mount plug shells with pin inserts will only mate with cable mount shells with socket inserts and panel mount shells with socket inserts will only mate with cable mount plug shells with pin inserts. Contacts must be ordered separately.

    Features and Benefits


    Current rating is 13A
    Cable mount
    Contact resistance is 6mohm
    Crimp termination


    Souriau Trim Trio Metalok & Shielded Bantams


    Flammability rating UL94V0
    2 VDE 0110 Group C versions 3 and 7 ways
    Moulded keyways ensure error free mating
    Standard shell sizes and contact arrangements
    High conductive copper alloy
    Gold flash or tin plate options
    Incorporating stainless steel spring for contact retention
    Gold flash or tin plate options


    Trim Trio Metalok Bantam Plastic circular connectors, derived from MIL-C-26482, with a secure metal coupling system to provide the complete solution for lightweight, robust industrial interconnections. Shell material is glass filled thermoplastic, with a rated operating temperature of -55°C to +125°C. Contacts to be ordered separately see typically stock no. 437-3712
    Plastic connectors, nickel plated to outer body and bayonet ring to satisfy EMC requirements. Cable mounting shells are supplied with metal PG tube, containing twin ferrule system for 360° cable shield continuity. The 2 shells are polarised and locked together by a bayonet action metal ring.
    The COM8-1 tool 266-6860, provides an 8 point impression crimp assuring maximum tensile strength on wire sizes up to 2.5mm². The cycle controlled, precision ratchet assures consistent and accurate crimping over many operations.

    Note

    Panel mounting plug shells with pin inserts will only mate with cable-mounting shells with socket inserts and panel mounting shells with socket inserts will only mate with cable-mounting plug shells with pin inserts. Contacts must be ordered separately.
