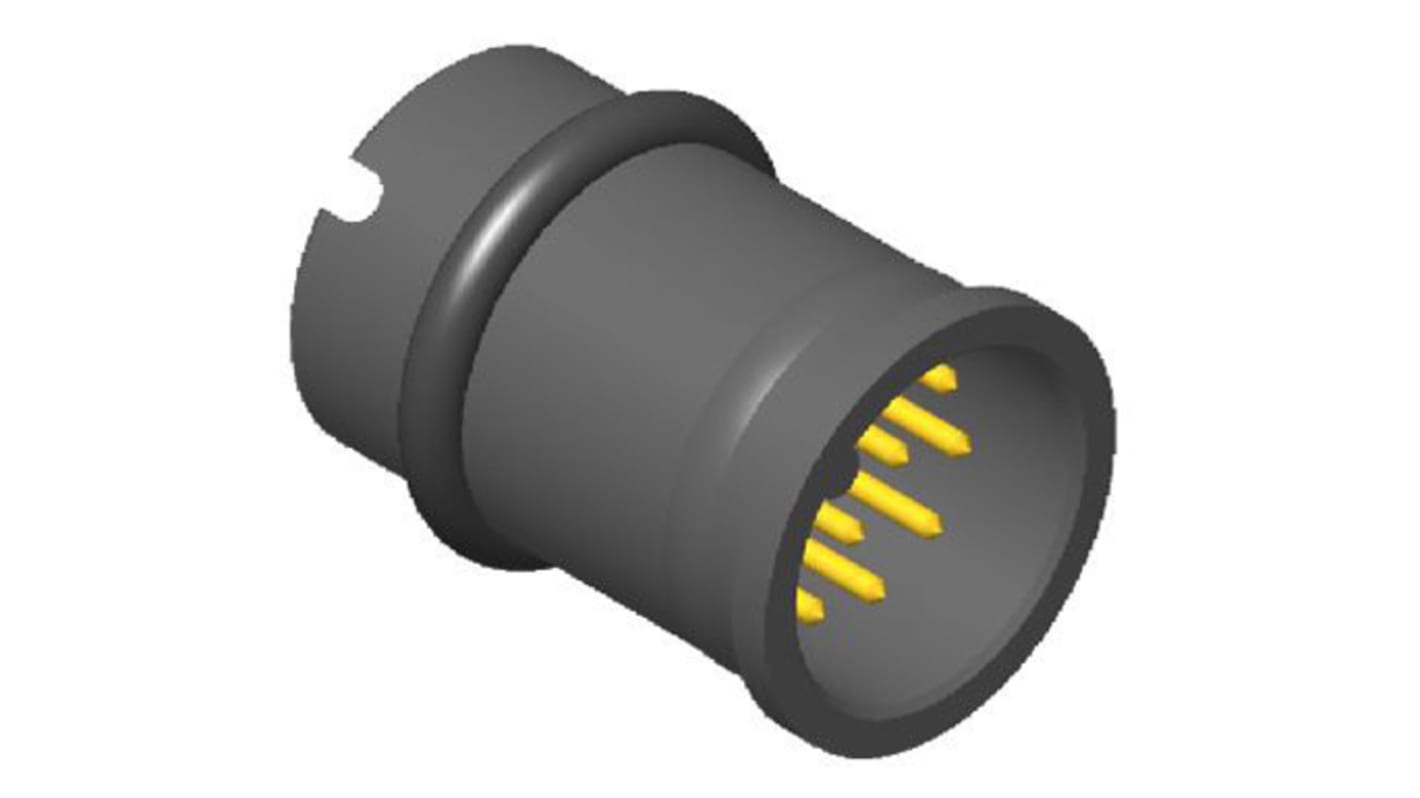

RS PRO size M12 1.5A Male Circular Connector Contact for use with Circular Connector

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

RS Pro M8 and M12 Connector Contacts

Brought to you by RS Pro, these connector contacts provide an excellent choice in both durability and quality. With both M8 and M12 available, and a choice between plug body colours of either transparent or black, there is a suitable contact for your application. All models are highly reliable and excellent quality.

Features & Benefits

Gold plated contacts M8 or M12
3 or 4 Pin (M8)
4 to 12 Pin (M12)

Specifications
Attribute Value
Gender Male
Contact Size M12
Series CNM
For Use With Circular Connector
Contact Type Pin
Current Rating 1.5A
Length 15mm
Contact Plating Gold
Voltage Rating 30 V
Contact Material CuZn
Maximum Contact Resistance <5mΩ
Minimum Operating Temperature -25°C
Maximum Operating Temperature +75°C
Mounting Type Cable Mount
50 In stock for FREE next working day delivery
Price Each
Was £6.45
£ 5.16
(exc. VAT)
£ 6.19
(inc. VAT)
Units
Per unit
1 +
£5.16
