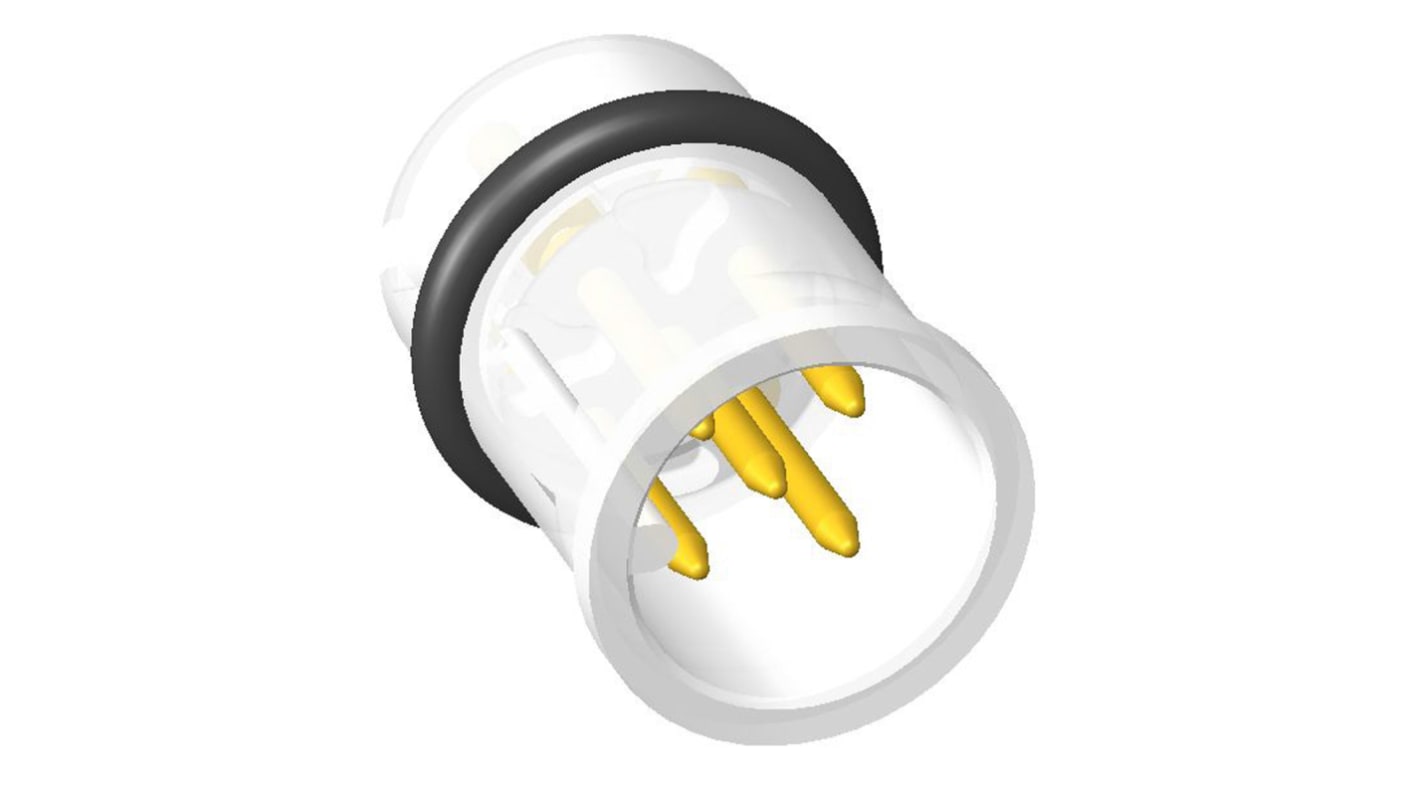

RS PRO size M12 4A Male Circular Connector Contact for use with Circular Connector

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

RS Pro M8 and M12 Connector Contacts

Brought to you by RS Pro, these connector contacts provide an excellent choice in both durability and quality. With both M8 and M12 available, and a choice between plug body colours of either transparent or black, there is a suitable contact for your application. All models are highly reliable and excellent quality.

Features & Benefits

Gold plated contacts M8 or M12
3 or 4 Pin (M8)
4 to 12 Pin (M12)

Specifications
Attribute Value
Gender Male
Contact Size M12
Series CNM
For Use With Circular Connector
Current Rating 4A
Contact Type Pin
Length 15mm
Contact Plating Gold
Voltage Rating 60 V
Contact Material CuZn
Maximum Contact Resistance <5mΩ
Minimum Operating Temperature -25°C
Maximum Operating Temperature +75°C
Mounting Type Cable Mount
Priced to Clear Yes
Available to back order for despatch 01/12/2020
Price Each
£ 2.21
(exc. VAT)
£ 2.65
(inc. VAT)
Units
Per unit
1 +
£2.21
