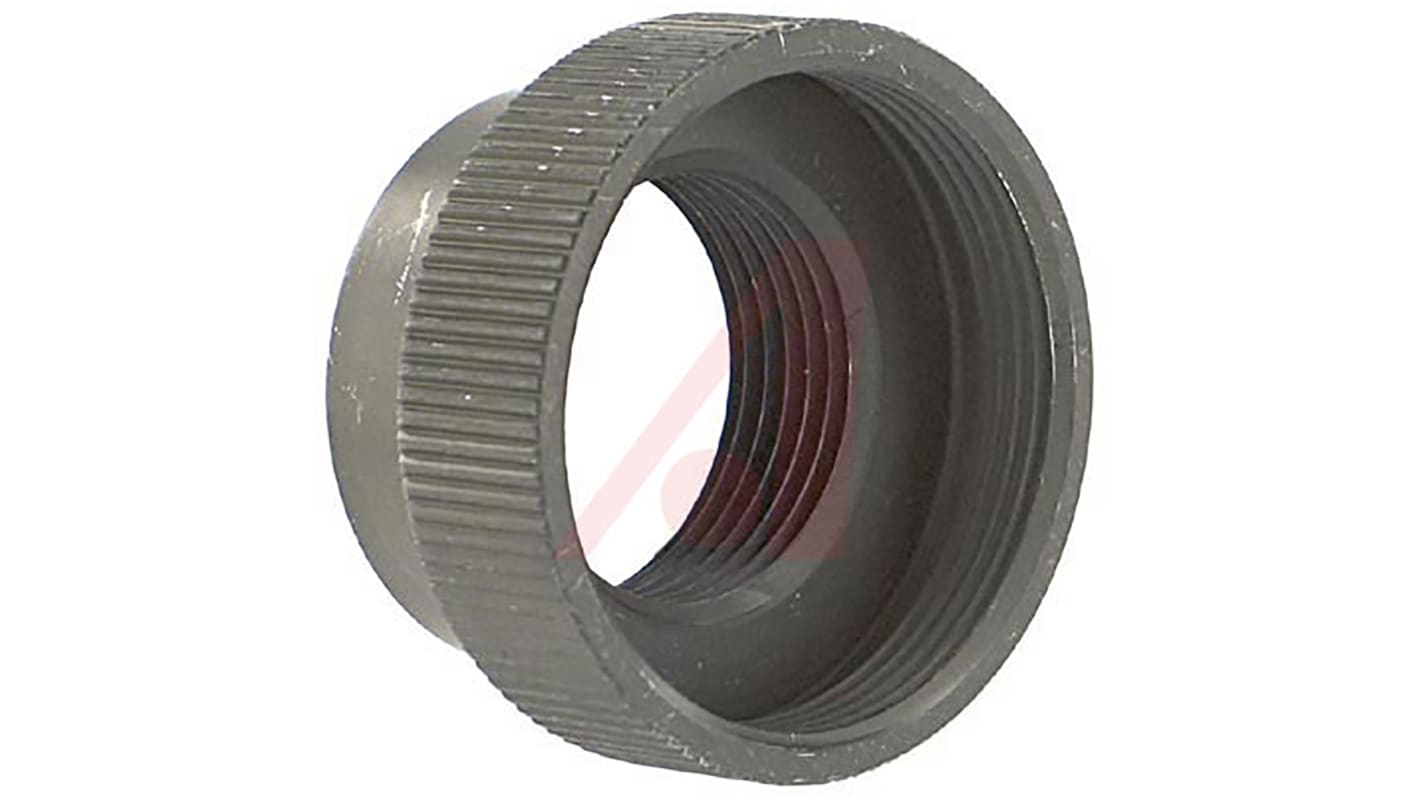

Amphenol, 97Size 24, 28 Straight Backshell, For Use With 97 Series Standard Cylindrical Connector, 1

  • RS Stock No. 873-1715
  • Mfr. Part No. 97-3055-120-28003
  • Brand Amphenol
Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): US
Product Details

Amphenol 97-3055 Series Connector Adapters

Amphenol backshell connector adapter components are fabricated from high grade aluminium alloy to provide strength and environmental protection.

Amphenol - 97 Series

Amphenol's 97 Connector series provide the interconnection solution for low cost, general duty applications. The connectors are widely used in a range of applications such as factory automation, robotics, machine tooling, welding equipment and medical equipment. Shell components are fabricated from high grade aluminium alloy to provide strength andl protection. The series offers a wide range of shell styles. contact patterns and accessory options.

Low cost, general duty applications
Solder or crimp termination
Available in a range of shell styles and insert patterns
Shell components are fabricated from high grade aluminium alloy
Wide selection of connector finishes - cadmium or non-cadmium (environmentally friendly zinc alloy)
Available accessories for both individual wire seal and jacketed cable
Thread coupling
Hard dielectric inserts

Approvals

UL recognized and CSA recognized

Specifications
Attribute Value
For Use With 97 Series Standard Cylindrical Connector
Shell Size 24, 28
Body Orientation Straight
Gender Male
Thread Size NPT 3/4 in (M Thread), 1-7/16 in - 18 (C Thread)
Length 28.3mm
Number of Contacts 1
Series 97
Available to back order for despatch 19/11/2020
Price Each
£ 39.80
(exc. VAT)
£ 47.76
(inc. VAT)
Units
Per unit
1 +
£39.80
