Phoenix Contact T Circular Connector Adapter
- RS Stock No.:
- 853-0326
- Mfr. Part No.:
- 1411415
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£75.71
(exc. VAT)
£90.85
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £75.71 |
*price indicative
- RS Stock No.:
- 853-0326
- Mfr. Part No.:
- 1411415
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Circular Connector Adapter | |
| Current | 40A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| IP Rating | IP69K, IP68, IP66 | |
| Series | QPD | |
| Standards/Approvals | REACH, RoHS, IEC 61076-2-101 | |
| Voltage | 1.0kV | |
| Orientation | T | |
| Contact Plating | Silver | |
| Contact Material | Copper | |
| Length | 207.8mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Circular Connector Adapter | ||
Current 40A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
IP Rating IP69K, IP68, IP66 | ||
Series QPD | ||
Standards/Approvals REACH, RoHS, IEC 61076-2-101 | ||
Voltage 1.0kV | ||
Orientation T | ||
Contact Plating Silver | ||
Contact Material Copper | ||
Length 207.8mm | ||
- COO (Country of Origin):
- PL

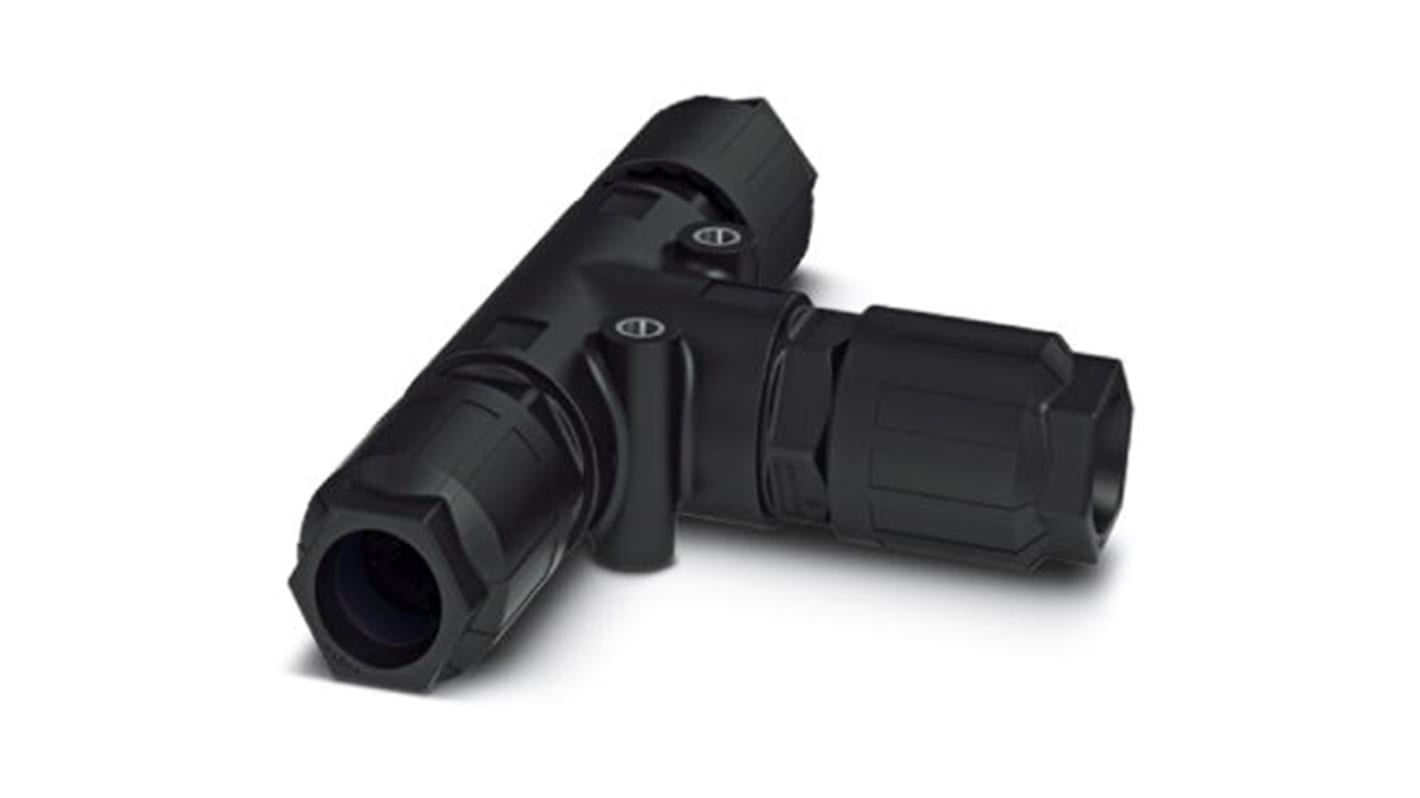

QUICKON T-distributor, black, 4+PE-pos., 2.5 mm² ... 6.0 mm²/690 V/40 A, for cable diameter of 12 mm ... 20 mm, with three QUICKON nuts
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection;Convenient: quick and easy assembly without special tools;Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications;Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105;Flexible and compact - by connecting connections internally, H and T-distributors can be used to branch master cables or they can be used as star distributors
