Alpha Wire 5 Pole M12 Plug to 10 Pole M12 Socket Adapter
- RS Stock No.:
- 174-7597
- Mfr. Part No.:
- SPL001W BK032
- Brand:
- Alpha Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 174-7597
- Mfr. Part No.:
- SPL001W BK032
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| End 1 Number of Contacts | 5 | |
| End 1 Number of Ports | 1 | |
| End 1 Gender | Male | |
| End 2 | 5 Pin Female M12 (2) | |
| End 1 Size | M12 | |
| End 2 Number of Contacts | 10 | |
| End 2 Number of Ports | 2 | |
| End 2 Gender | Female | |
| End 2 Size | M12 | |
| Current Rating | 4A | |
| IP Rating | IP67 | |
| Voltage Rating | 63 V | |
| Body Orientation | Straight | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Copper Alloy | |
| Length | 40mm | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | +90°C | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
End 1 Number of Contacts 5 | ||
End 1 Number of Ports 1 | ||
End 1 Gender Male | ||
End 2 5 Pin Female M12 (2) | ||
End 1 Size M12 | ||
End 2 Number of Contacts 10 | ||
End 2 Number of Ports 2 | ||
End 2 Gender Female | ||
End 2 Size M12 | ||
Current Rating 4A | ||
IP Rating IP67 | ||
Voltage Rating 63 V | ||
Body Orientation Straight | ||
Minimum Operating Temperature -25°C | ||
Contact Material Copper Alloy | ||
Length 40mm | ||
Contact Plating Gold | ||
Maximum Operating Temperature +90°C | ||

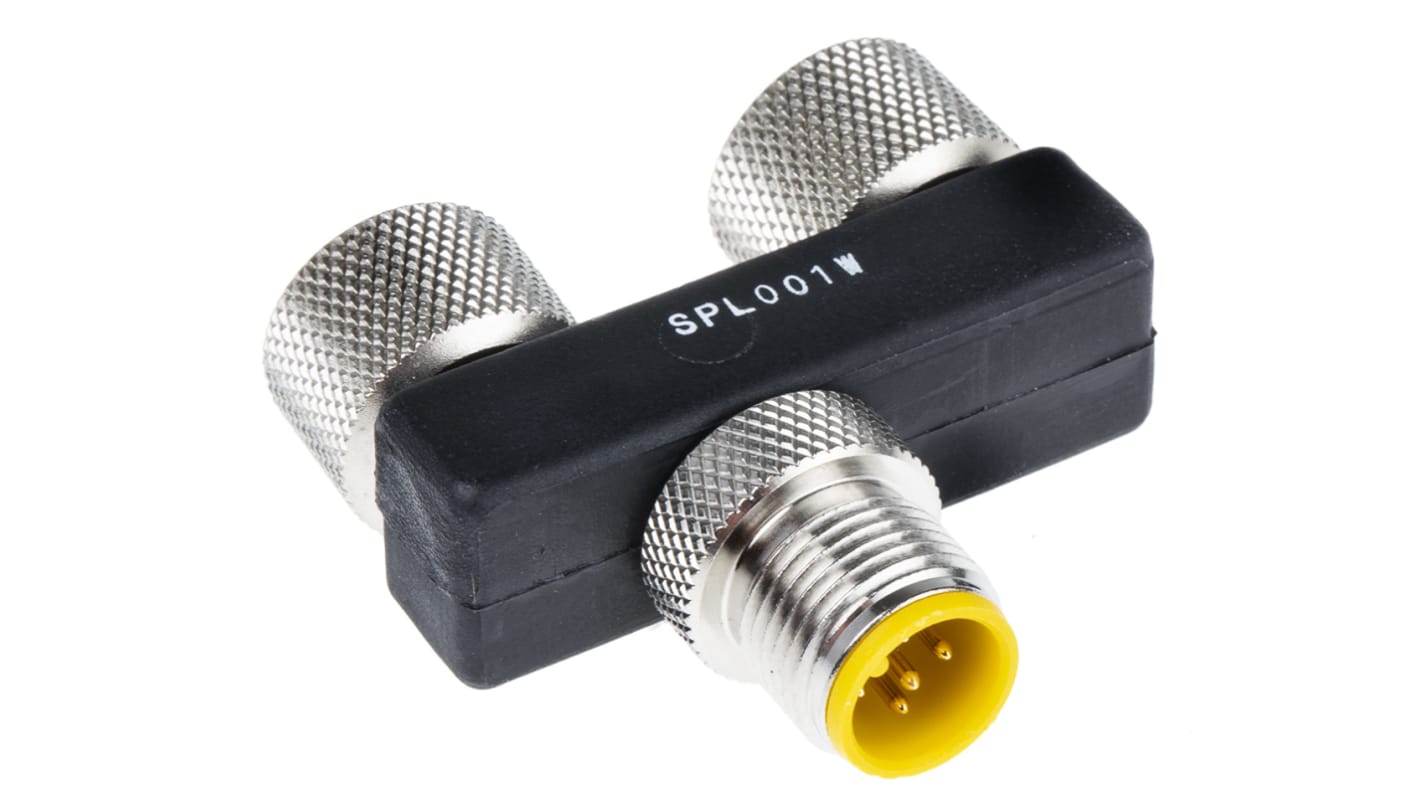

Alpha Wire 1:2 Splitter – SPL001W BK032
The Alpha Connect splitter is a device that consolidates port signals depending on the application needs. Splitters allow two cables to be connected to a single cable when paired with a two signal per port M12 passive distribution box. Splitters also provide a space-saving option in an industrial environment.
Features and Benefits
Thermoplastic polyurethane housing
Thermoplastic polyurethane insert
Flame retardant
Copper alloy contacts
Temperature Range: -25°C to +90°C
Single Port: M12 Male
Double Ports: M12 Female
Body Style: Wide
Colour: Black
Approvals
IP67 • NEMA 6P
