Deutsch for use with HD30 Series, HDP20 Series Connector
- RS Stock No.:
- 425-654
- Mfr. Part No.:
- 2414-001-2486
- Brand:
- Deutsch
430 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 5)
£1.43
(exc. VAT)
£1.72
(inc. VAT)
| Units | Per unit | Per Bag* |
| 5 - 45 | £1.43 | £7.15 |
| 50 - 95 | £1.358 | £6.79 |
| 100 + | £1.286 | £6.43 |
| *price indicative | ||
- RS Stock No.:
- 425-654
- Mfr. Part No.:
- 2414-001-2486
- Brand:
- Deutsch
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

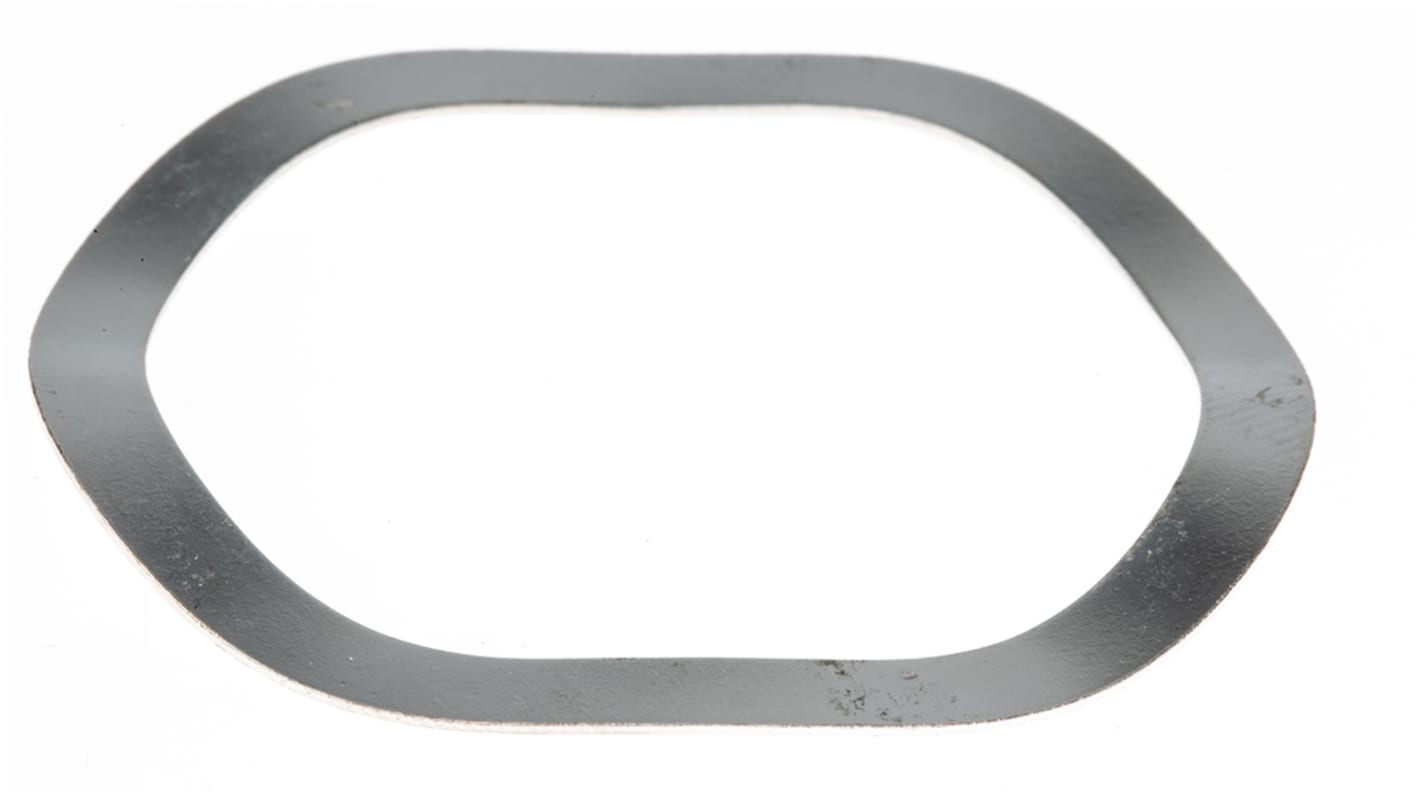

HDP Panel Washer
HDP20 Range
A range of Heavy Duty thermoplastic, multipole, circular, sealed connectors.,Available in 2 sizes ranging from 8 to 47 ways, in standard or `reverse sex` options.,Straight or right angled clam shell backshells accepting a variety of conduit sizes are also available. Uses Deutsch solid contacts size 12, 16 and 20 depending on the planform selected. For suitable contacts see for example, size 12 (stock no. 425-828), size 16 (stock no. 425-761), size 20 (stock no. 425-834). For a suitable crimp tool see stock no. 425-973.
Sealed to IP67
Durable – 100 mating cycles minimum
Vibration proof – 20g's at 10 - 2000Hz
Corrosion Resistant – 48hours Salt Spray to MIL STD 1344
Durable – 100 mating cycles minimum
Vibration proof – 20g's at 10 - 2000Hz
Corrosion Resistant – 48hours Salt Spray to MIL STD 1344
Specifications
Attribute | Value |
|---|---|
| For Use With | HD30 Series, HDP20 Series Connector |
