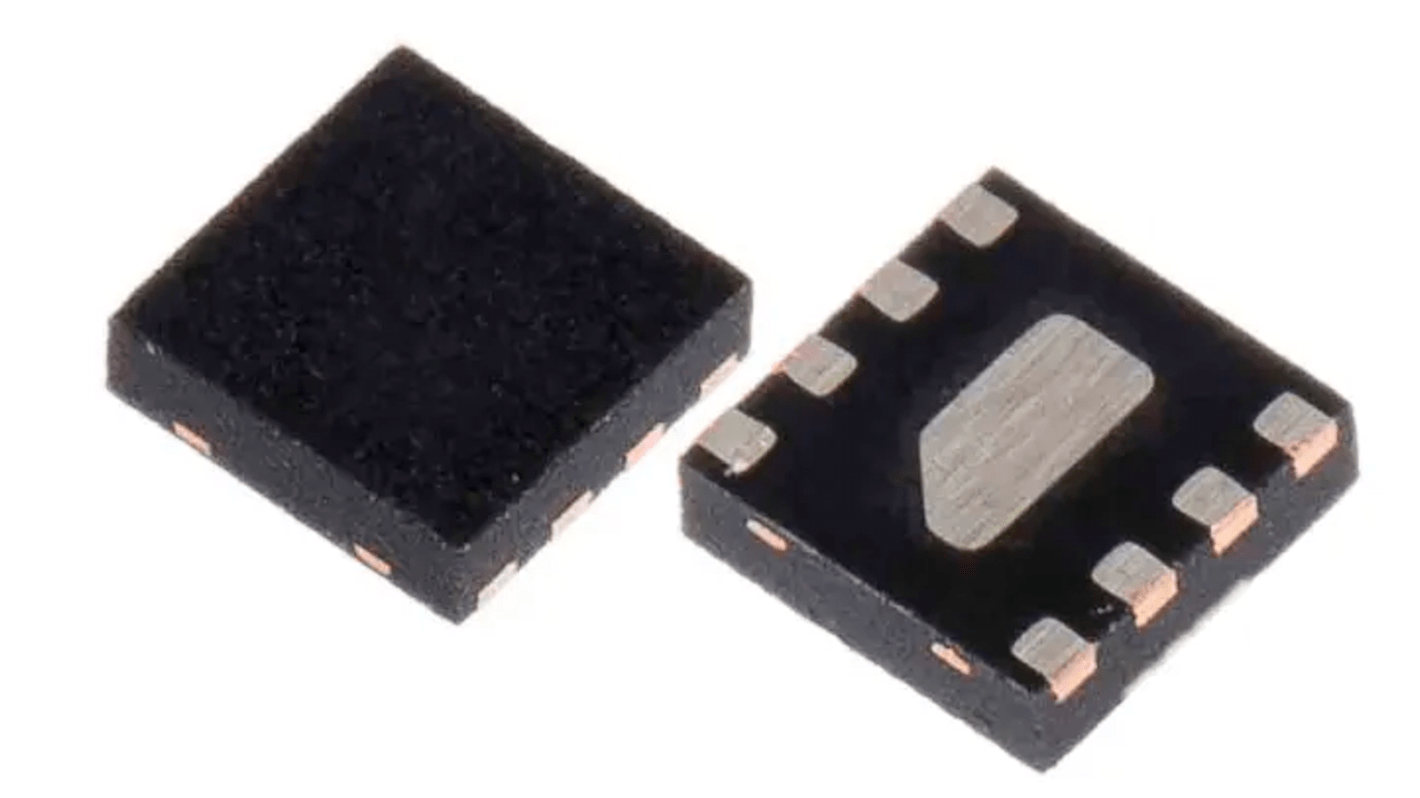

STMicroelectronics Surface Mount Chip Balun

View all Chip Baluns
Bulk discount available

Subtotal 125 units (supplied on a continuous strip)*

£28.75

(exc. VAT)

£35.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
125 - 225£0.23
250 - 600£0.218
625 - 1225£0.205
1250 +£0.195

*price indicative

Packaging Options:
RS Stock No.:
190-6833P
Mfr. Part No.:
EMIF03-SIM02M8
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Chip Balun

Mount Type

Surface Mount

Pin Count

8

Maximum Frequency

3.0GHz

Minimum Operating Temperature

-40°C

Minimum Frequency

300kHz

Maximum Operating Temperature

85°C

Package Type

Micro QFN

Series

EMIF03-SIM02M8

Height

0.6mm

Width

1.5mm

Standards/Approvals

UL94 V0, JEDEC JESD97, IEC 61000-4-2, MIL STD 883G

Length

1.7mm

COO (Country of Origin):
CN
The STMicroelectronics EMIF03-SIM02M8 is a 3 line highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference. This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 15 kV on the external pins.

High reduction of parasitic elements through integration and wafer level packaging

High reliability offered by monolithic integration

SIM card EMI low-pass filter

Very low PCB space consumption 1.7 mm x 1.5 mm
