RS PRO Brass Check Valve Filling Loop 15 mm, 10 bar

View all Check Valves

Subtotal (1 unit)*

£22.11

(exc. VAT)

£26.53

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£22.11

*price indicative

RS Stock No.:
242-2842
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Filling Loop

Sub Type

Check Valve

Inlet Port Size

15 mm

Body Material

Brass

Maximum Operating Pressure

10 bar

Outlet Thread Standard

No

Standards/Approvals

No

RoHS Status: Exempt

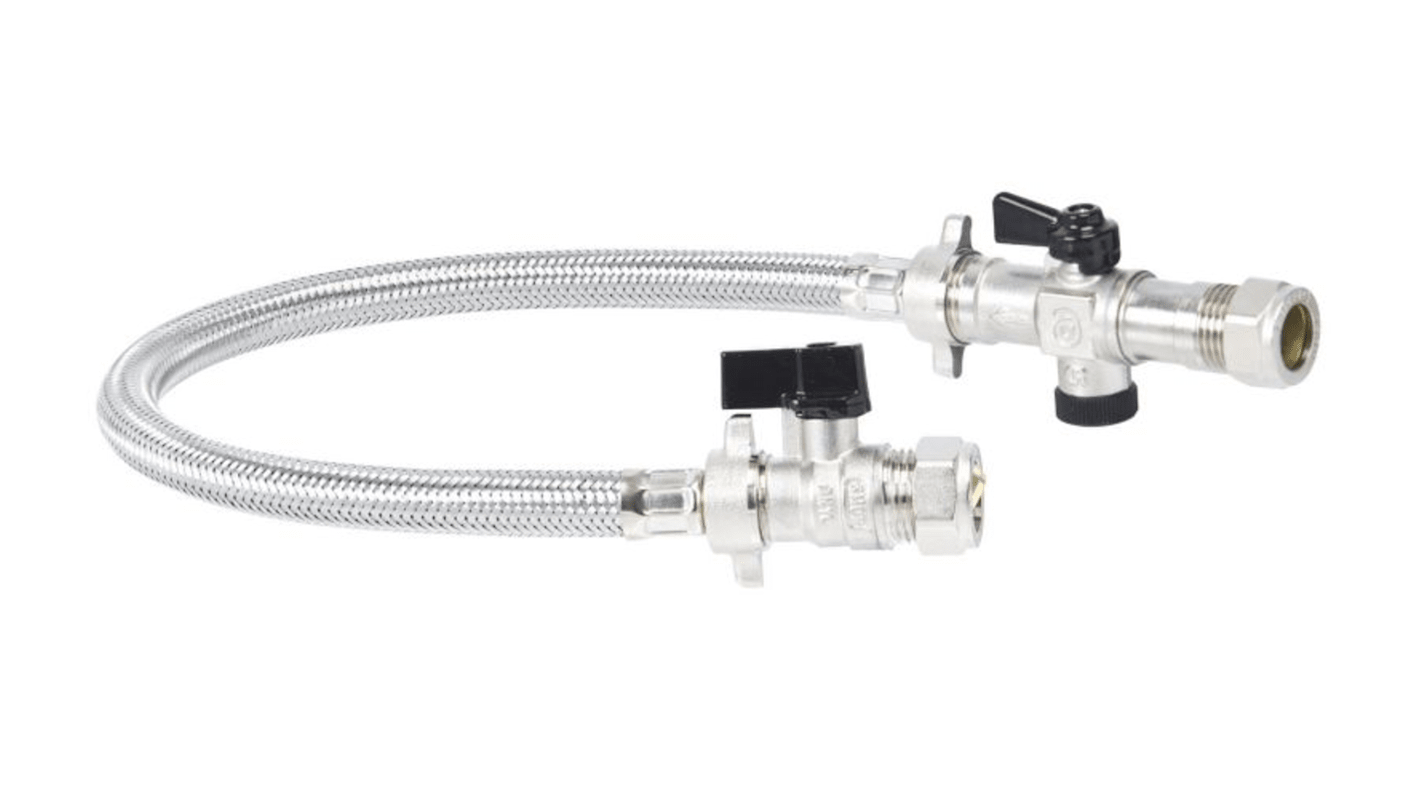

RS PRO Filling Loop


Use this RS PRO filling loop to connect to your water feed during filling and pressurising of domestic central heating system. During application, they must be installed between the mains cold water supply inlet and the central heating return pipe in the boiler, also used to fill and pressurise the secondary heating system of Heat Interface Units (HIUs).

Features and Benefits


  • Maximum inlet pressure: 10 bar

  • Maximum continuous temperature 85 °C

  • WRAS-approved backflow prevention device (a double check valve conforming to BS EN 13959 suitable for protection against a fluid category 3 risk)

  • Temporary connecting pipe (removable flexible hose)

  • Service valve (2 isolating ball valves)

    • Components Parts


  • Ball Valve

  • Flexible braided hose

  • Double check valve with integral isolation valve

    • Important


    The filling loop must be installed in accordance with the requirements of the Water Regulations-1999, Schedule 2, Section 8 Paragraphs G24.1 and G24.2.

    Applications


    Domestic central heating system
