SolaHD 9kVA Chassis Mounting Transformer, 120V ac
- RS Stock No.:
- 890-8769
- Mfr. Part No.:
- HT1F9AS
- Brand:
- SolaHD
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 890-8769
- Mfr. Part No.:
- HT1F9AS
- Brand:
- SolaHD
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SolaHD | |
| Primary Voltage Rating | 480V ac | |
| Secondary Voltage Rating | 120 V ac, 208V ac | |
| Power Rating | 9kVA | |
| Mounting Type | Panel Mount | |
| Width | 20in | |
| Depth | 11in | |
| Dimensions | 17 x 20 x 11in | |
| Weight | 250lb | |
| Maximum Operating Frequency | 60Hz | |
Select all | ||
|---|---|---|
Brand SolaHD | ||
Primary Voltage Rating 480V ac | ||
Secondary Voltage Rating 120 V ac, 208V ac | ||
Power Rating 9kVA | ||
Mounting Type Panel Mount | ||
Width 20in | ||
Depth 11in | ||
Dimensions 17 x 20 x 11in | ||
Weight 250lb | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- US

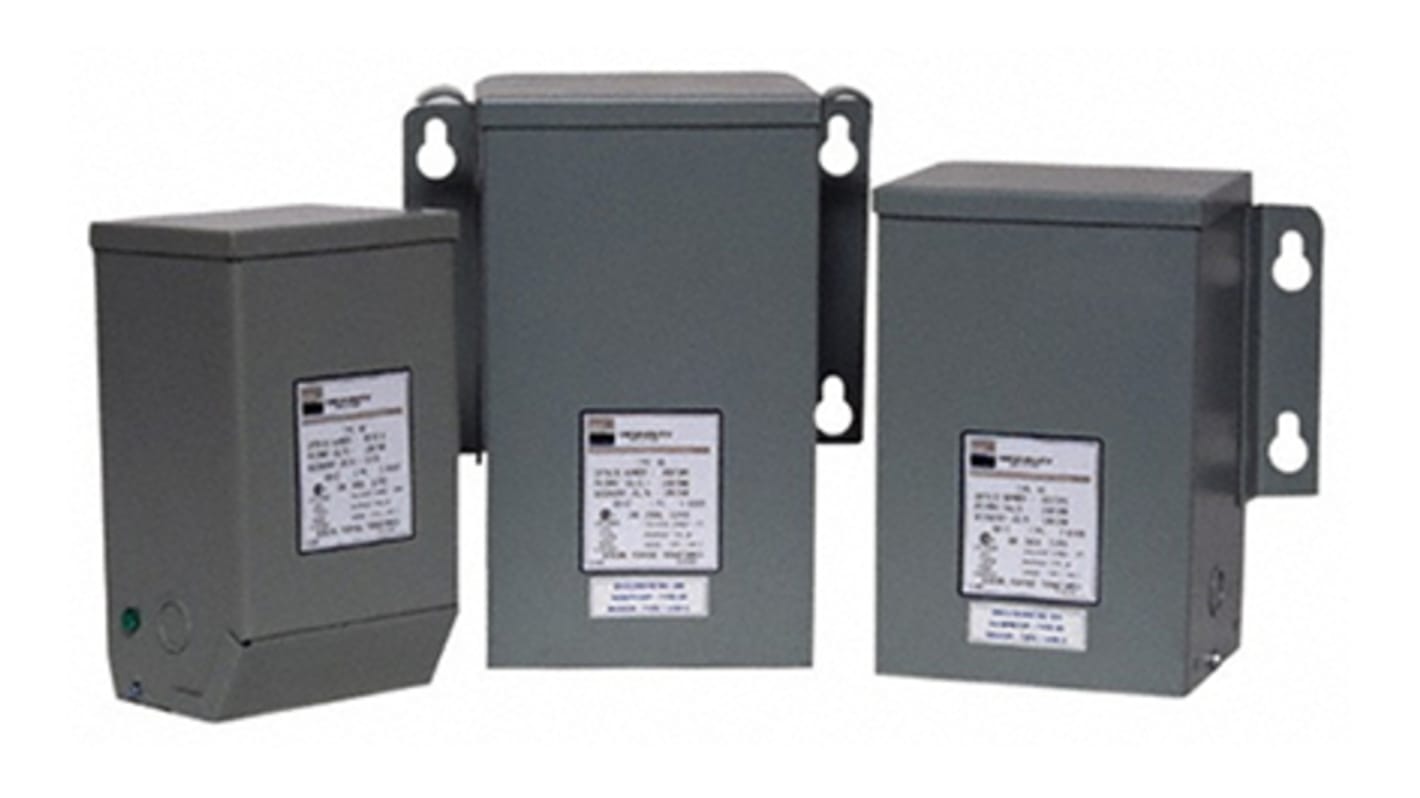

SolaHD Hazardous Location Transformers
These heavy-duty encapsulated transformers have been designed for use in hazardous locations (Class 1, Division 2, Group A-D). They are also suited to harsh industrial environments. The encapsulation and rugged NEMA 3R enclosures help to provide protection from dust, moisture and also provide extra shock and vibration resistance. Available in both single and 3 phase options.
Rated for hazardous locations and harsh industrial environments
UL listed
Available in both single and 3 phase options
Single phase: 0.05 kVA to 0.250 kVA
Single Phase: (0.50 → 25 kVA), 3 Phase (3 → 45 kVA)
Conduit knockouts for side entry into roomy wiring compartment
Copper lead wire terminations
0.500 kVA → 10 kVA units are encapsulated with electrical grade silica sand and epoxy for industrial applications
UL listed
Available in both single and 3 phase options
Single phase: 0.05 kVA to 0.250 kVA
Single Phase: (0.50 → 25 kVA), 3 Phase (3 → 45 kVA)
Conduit knockouts for side entry into roomy wiring compartment
Copper lead wire terminations
0.500 kVA → 10 kVA units are encapsulated with electrical grade silica sand and epoxy for industrial applications
