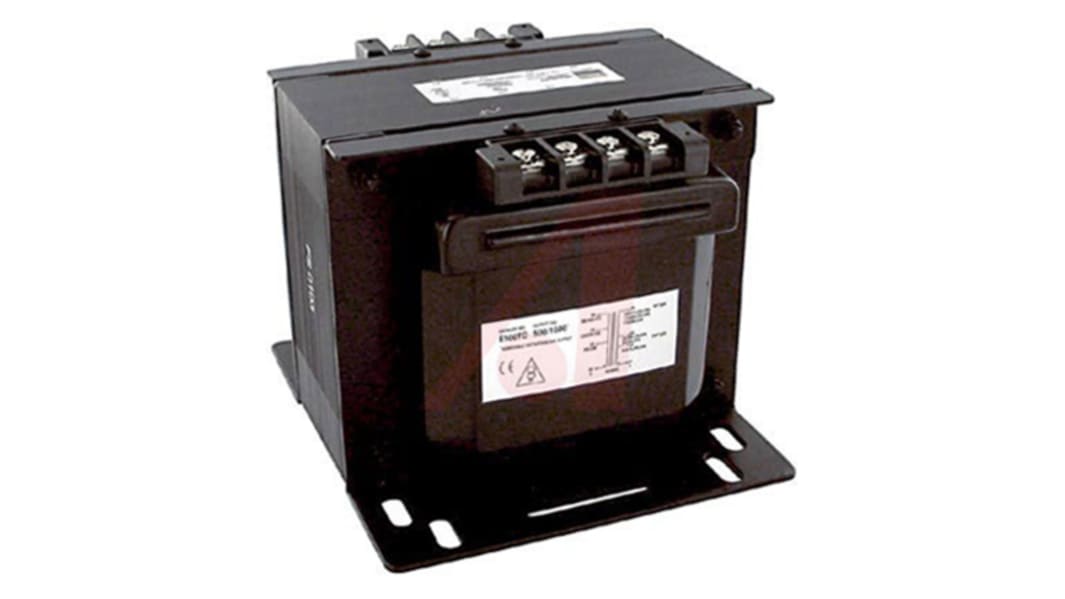

Sola 1600 (Instantaneous) VA, 500 (Continuous) VA Chassis Mounting Transformer, 23 → 120V ac
- RS Stock No.:
- 890-8630
- Mfr. Part No.:
- E500TC
- Brand:
- Sola
Subtotal (1 unit)*
£265.94
(exc. VAT)
£319.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £265.94 |
*price indicative
- RS Stock No.:
- 890-8630
- Mfr. Part No.:
- E500TC
- Brand:
- Sola
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sola | |
| Primary Voltage Rating | 200 → 415V ac | |
| Secondary Voltage Rating | 23 → 120V ac | |
| Power Rating | 1600 (Instantaneous) VA, 500 (Continuous) VA | |
| Mounting Type | Panel | |
| Width | 6.38in | |
| Depth | 6.93in | |
| Dimensions | 5.56 x 6.38 x 6.93in | |
| Weight | 30lb | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
Select all | ||
|---|---|---|
Brand Sola | ||
Primary Voltage Rating 200 → 415V ac | ||
Secondary Voltage Rating 23 → 120V ac | ||
Power Rating 1600 (Instantaneous) VA, 500 (Continuous) VA | ||
Mounting Type Panel | ||
Width 6.38in | ||
Depth 6.93in | ||
Dimensions 5.56 x 6.38 x 6.93in | ||
Weight 30lb | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- US
SolaHD International Series Control Transformers
The International series transformers have been designed to comply with the demands of electromagnetic control components which can demand inrush currents of up to 10 times the nominal rating without sacrificing secondary voltage stability beyond practical limits. They fully comply with IEC and NEMA standards and are available with IEC touch proof covers (IP20).
Epoxy encapsulated for cooler operation
Interleaved copper windings reduce I²R losses and maximize efficiency
50/60 Hz
+55 °C Rise, +105 °C insulation system for harsh, heavy duty applications
Interleaved copper windings reduce I²R losses and maximize efficiency
50/60 Hz
+55 °C Rise, +105 °C insulation system for harsh, heavy duty applications
Standards
Exceeds IEC, NEMA, ANSI, NMTBA, JIC and automotive standards
