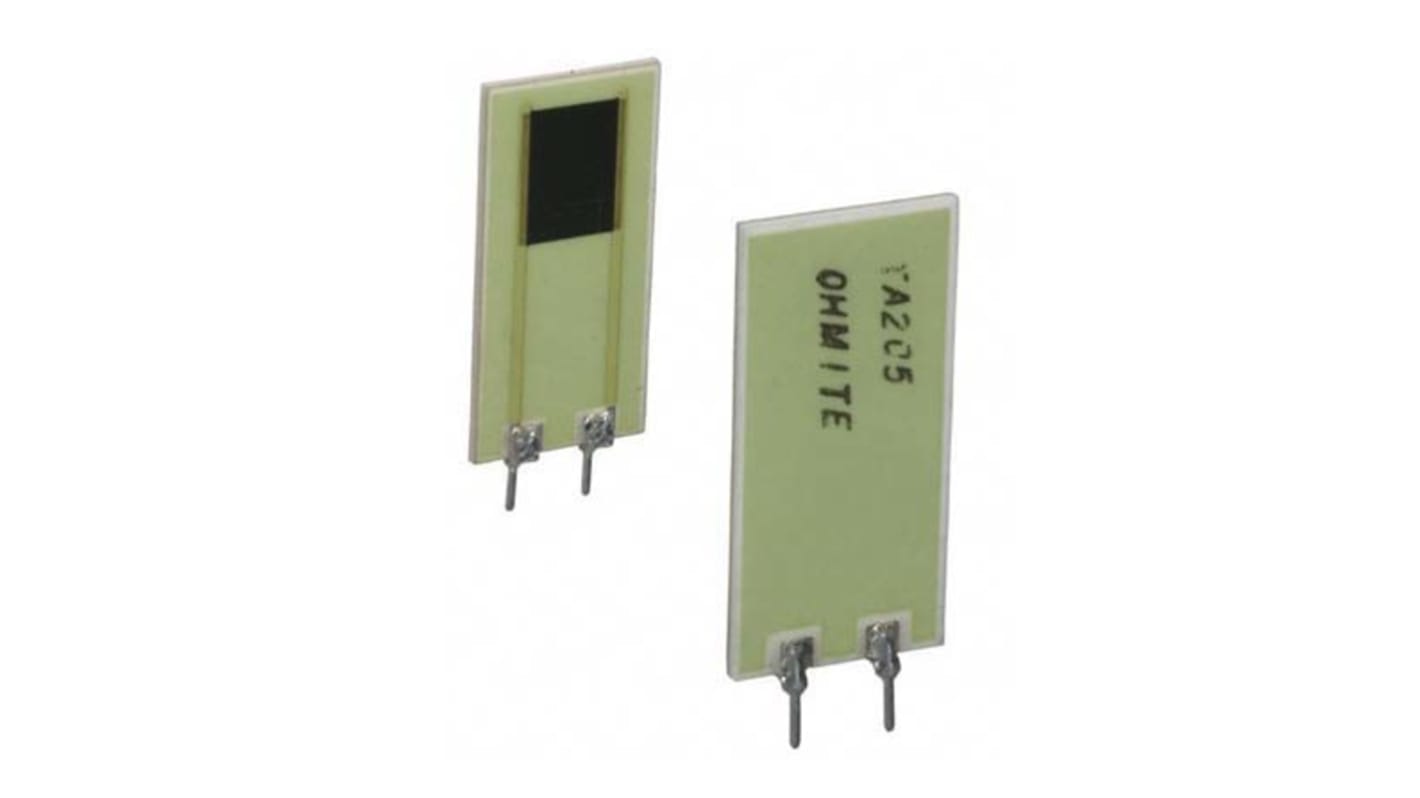

Ohmite, 100Ω 5W Thick Film Chassis Mount Resistor TA205PA100RJE ±5%
- RS Stock No.:
- 893-4737
- Mfr. Part No.:
- TA205PA100RJE
- Brand:
- Ohmite
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 893-4737
- Mfr. Part No.:
- TA205PA100RJE
- Brand:
- Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ohmite | |
| Resistance | 100Ω | |
| Power Rating | 5W | |
| Series | TA | |
| Package/Case | Planar | |
| Tolerance | ±5% | |
| Technology | Thick Film | |
| Termination Style | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +180°C | |
| Maximum Temperature Coefficient | +100ppm/°C | |
| Dimensions | 12.7 x 2.54 x 25.4mm | |
| Overall Height | 25.4mm | |
| Overall Length | 12.7mm | |
| Overall Width | 2.54mm | |
Select all | ||
|---|---|---|
Brand Ohmite | ||
Resistance 100Ω | ||
Power Rating 5W | ||
Series TA | ||
Package/Case Planar | ||
Tolerance ±5% | ||
Technology Thick Film | ||
Termination Style Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +180°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 12.7 x 2.54 x 25.4mm | ||
Overall Height 25.4mm | ||
Overall Length 12.7mm | ||
Overall Width 2.54mm | ||
- COO (Country of Origin):
- MX
Ohmite TA Series Thick Film Resistors
Ohmite TA series power chip resistors feature thick film on alumina substrate technology in a planar package that offers space saving, and requires over 50% less board space than other radial packages. Convection cooling is maximized by the planar package configuration which dissipates heat well above board level. Ohmite power chip resistors have a high temperature solder and in-process plating that keeps terminations secure under self-heating effects by preventing re-flow from full power operation.
High-Temp Terminal Construction
Wide Resistance Range
Low Inductance (50nH-100nH)
High Power Density
Easy to install. PC-mountable
Wide Resistance Range
Low Inductance (50nH-100nH)
High Power Density
Easy to install. PC-mountable
