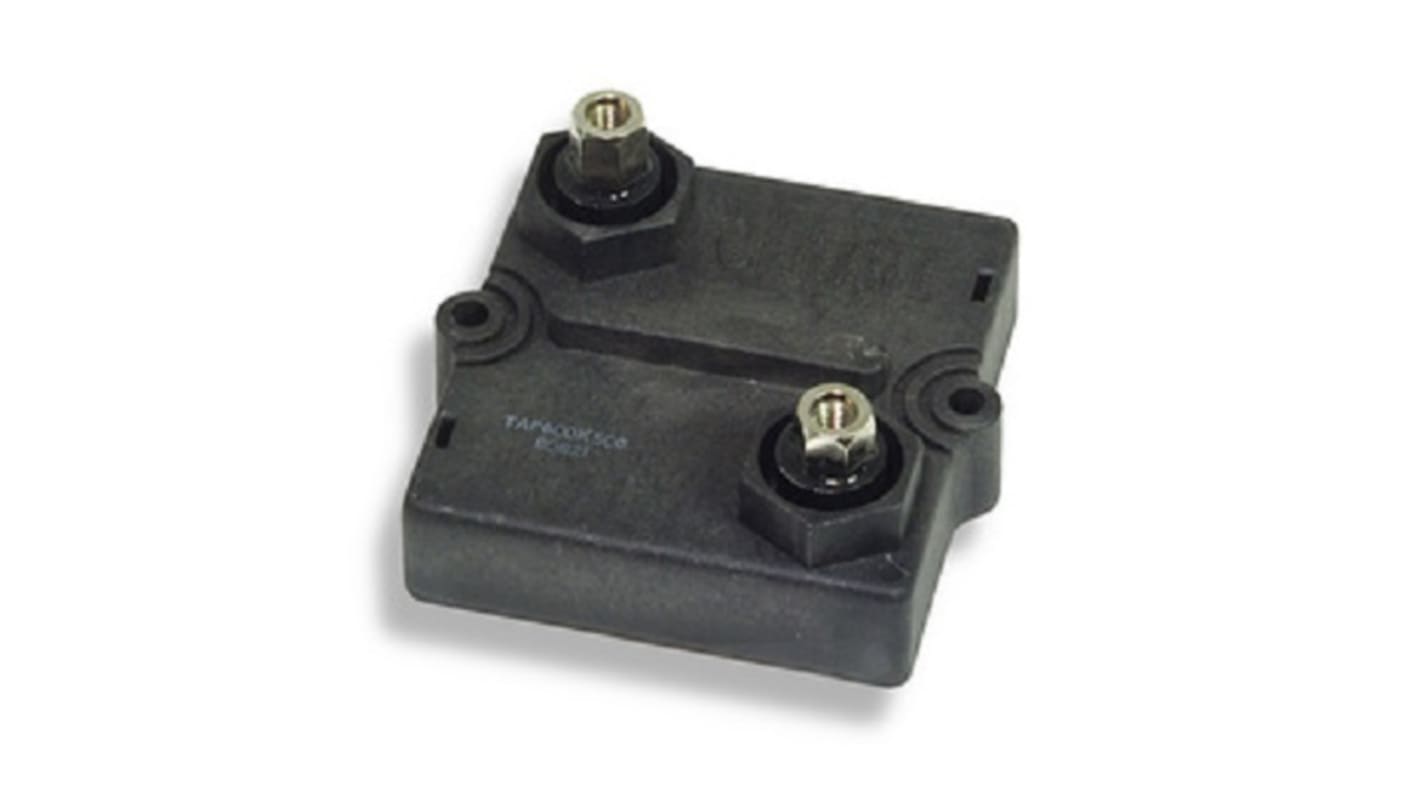

Ohmite, 390Ω 800W Thick Film Chassis Mount Resistor TAP800K390E ±10%
- RS Stock No.:
- 893-3346
- Mfr. Part No.:
- TAP800K390E
- Brand:
- Ohmite
Discontinued
- RS Stock No.:
- 893-3346
- Mfr. Part No.:
- TAP800K390E
- Brand:
- Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ohmite | |
| Resistance | 390Ω | |
| Power Rating | 800W | |
| Series | TAP | |
| Package/Case | Planar | |
| Tolerance | ±10% | |
| Technology | Thick Film | |
| Termination Style | Screw | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +150°C | |
| Minimum Temperature Coefficient | -150ppm/°C | |
| Maximum Temperature Coefficient | +150ppm/°C | |
| Dimensions | 60.8 x 65.8 x 23mm | |
| Overall Height | 23mm | |
| Overall Length | 60.8mm | |
| Overall Width | 65.8mm | |
| Select all | ||
|---|---|---|
Brand Ohmite | ||
Resistance 390Ω | ||
Power Rating 800W | ||
Series TAP | ||
Package/Case Planar | ||
Tolerance ±10% | ||
Technology Thick Film | ||
Termination Style Screw | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +150°C | ||
Minimum Temperature Coefficient -150ppm/°C | ||
Maximum Temperature Coefficient +150ppm/°C | ||
Dimensions 60.8 x 65.8 x 23mm | ||
Overall Height 23mm | ||
Overall Length 60.8mm | ||
Overall Width 65.8mm | ||
- COO (Country of Origin):
- MX
Ohmite TAP800 Series Planar Series Resistors
Ohmite TAP800 heat sinakable planar resistors deliver 800 watts of continuous reliable power to a variety of power conditioning, power transmission, and power control applications. These resistors are designed for liquid or air cooled heat sink systems.
High Energy Rating
Low Inductance
Resistor Element Electrically Isolated
High Dielectric Strength
Small Footprint
Low Inductance
Resistor Element Electrically Isolated
High Dielectric Strength
Small Footprint
