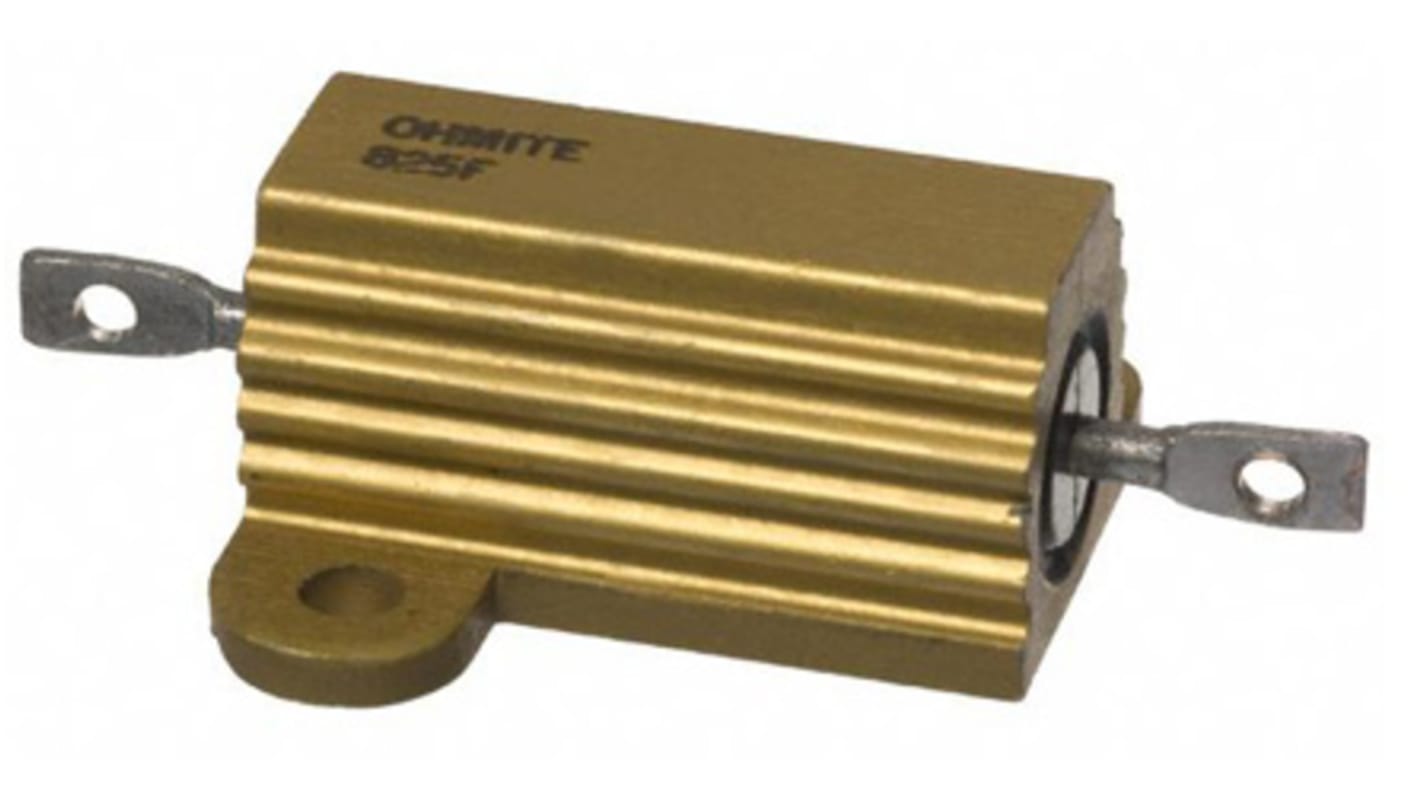

Arcol Ohmite 825FR50E, 500 mΩ 25 W Wirewound Chassis Mount Resistor ±1 %
- RS Stock No.:
- 893-3065
- Mfr. Part No.:
- 825FR50E
- Brand:
- Arcol Ohmite
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 893-3065
- Mfr. Part No.:
- 825FR50E
- Brand:
- Arcol Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol Ohmite | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 500mΩ | |
| Power Rating | 25W | |
| Series | 825 | |
| Package/Case | Aluminium | |
| Tolerance | ±1 % | |
| Temperature Coefficient | ±90 ppm/°C | |
| Automotive Standard | No | |
| Technology | Wirewound | |
| Overall Length | 51mm | |
| Minimum Operating Temperature | 25°C | |
| Maximum Operating Temperature | 275°C | |
| Overall Height | 14.8mm | |
| Standards/Approvals | RoHS | |
| Overall Width | 28mm | |
| Select all | ||
|---|---|---|
Brand Arcol Ohmite | ||
Product Type Chassis Mount Resistor | ||
Resistance 500mΩ | ||
Power Rating 25W | ||
Series 825 | ||
Package/Case Aluminium | ||
Tolerance ±1 % | ||
Temperature Coefficient ±90 ppm/°C | ||
Automotive Standard No | ||
Technology Wirewound | ||
Overall Length 51mm | ||
Minimum Operating Temperature 25°C | ||
Maximum Operating Temperature 275°C | ||
Overall Height 14.8mm | ||
Standards/Approvals RoHS | ||
Overall Width 28mm | ||
Ohmite 89 Series Aluminium Housed Axial Terminal Wirewound Resistors
Ohmite 89 Series high-performance aluminium housed axial terminal resistors. These moulded-construction aluminium housed resistors are available in higher power ratings than standard axial resistors and are designed to withstand vibration, shock and harsh environmental conditions. The 89 Series Metal-Mite® resistors are aluminium housed to maintain high stability during operation and to permit secure mounting to chassis surfaces. The metal housing also provides heat-sinking capabilities.
Features & Benefits:
High Stability
High power to size ratio
Metal housing allows chassis mounting and provides heat sink capability
Aluminium housed, Ceramic Wirewound
