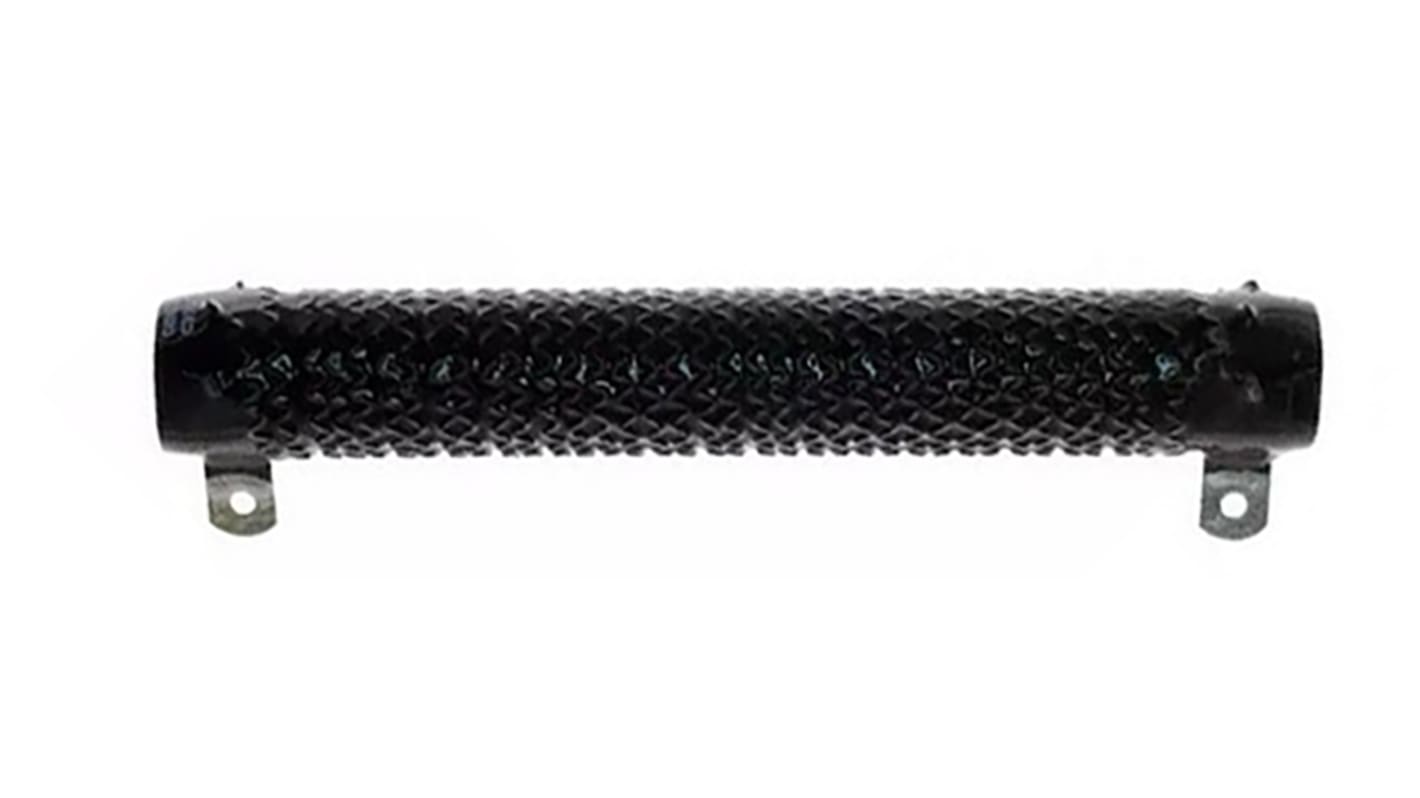

Arcol Ohmite, 2Ω 300W Wire Wound Chassis Mount Resistor C300K2R0E ±10%
- RS Stock No.:
- 893-0870
- Mfr. Part No.:
- C300K2R0E
- Brand:
- Arcol Ohmite
4 In stock - FREE next working day delivery available
Added
Price Each
£23.28
(exc. VAT)
£27.94
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £23.28 |
| 5 - 9 | £22.63 |
| 10 - 24 | £22.02 |
| 25 - 49 | £21.44 |
| 50 + | £20.88 |
- RS Stock No.:
- 893-0870
- Mfr. Part No.:
- C300K2R0E
- Brand:
- Arcol Ohmite
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Ohmite 280 Corrib® Series Fixed Resistors
The 280 series of heavy-duty power resistors from Ohmite are constructed with corrugated resistive wire. The wire is fused to the ceramic core by a protective vitreous coating, ensuring improved durability. The corrugated wire and ribbed construction enables rapid cooling. With a hollow core unit, these power resistors can be fastened to chassis surfaces with brackets and through bolts.
Features & Benefits:
Tinned lug terminals with holes
Adjustable lug supplied with adjustable 300 W models
±10% tolerance
Overload: 10 times rated wattage for 5 seconds
750 W or above models feature silicone coating
Product Applications:
These power resistors are suitable for applications requiring low resistance at high current capacity. For example, the 300 W model has resistances as low as 0.1 Ω. These power resistors are ideal for dynamic braking and motor starting applications.
Specifications
Attribute | Value |
|---|---|
| Resistance | 2Ω |
| Power Rating | 300W |
| Series | C300 |
| Package/Case | Tubular |
| Tolerance | ±10% |
| Technology | Wire Wound |
| Termination Style | Solder |
| Minimum Operating Temperature | +25°C |
| Maximum Operating Temperature | +400°C |
| Minimum Temperature Coefficient | -400ppm/°C |
| Maximum Temperature Coefficient | +400ppm/°C |
| Dimensions | 28.58 x 215.9mm |
| Overall Diameter | 28.58mm |
| Overall Length | 215.9mm |
