Vishay, 40Ω 50W Wire Wound Panel Mount Resistor RH05040R00FE02 ±1%
- RS Stock No.:
- 845-9958
- Mfr. Part No.:
- RH05040R00FE02
- Brand:
- Vishay
9 In stock - FREE next working day delivery available
21 available from Europe for delivery within 1 working day(s).
Added
Price Each
£7.51
(exc. VAT)
£9.01
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £7.51 |
| 5 - 9 | £3.00 |
| 10 - 24 | £2.63 |
| 25 - 49 | £2.32 |
| 50 + | £2.26 |
- RS Stock No.:
- 845-9958
- Mfr. Part No.:
- RH05040R00FE02
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

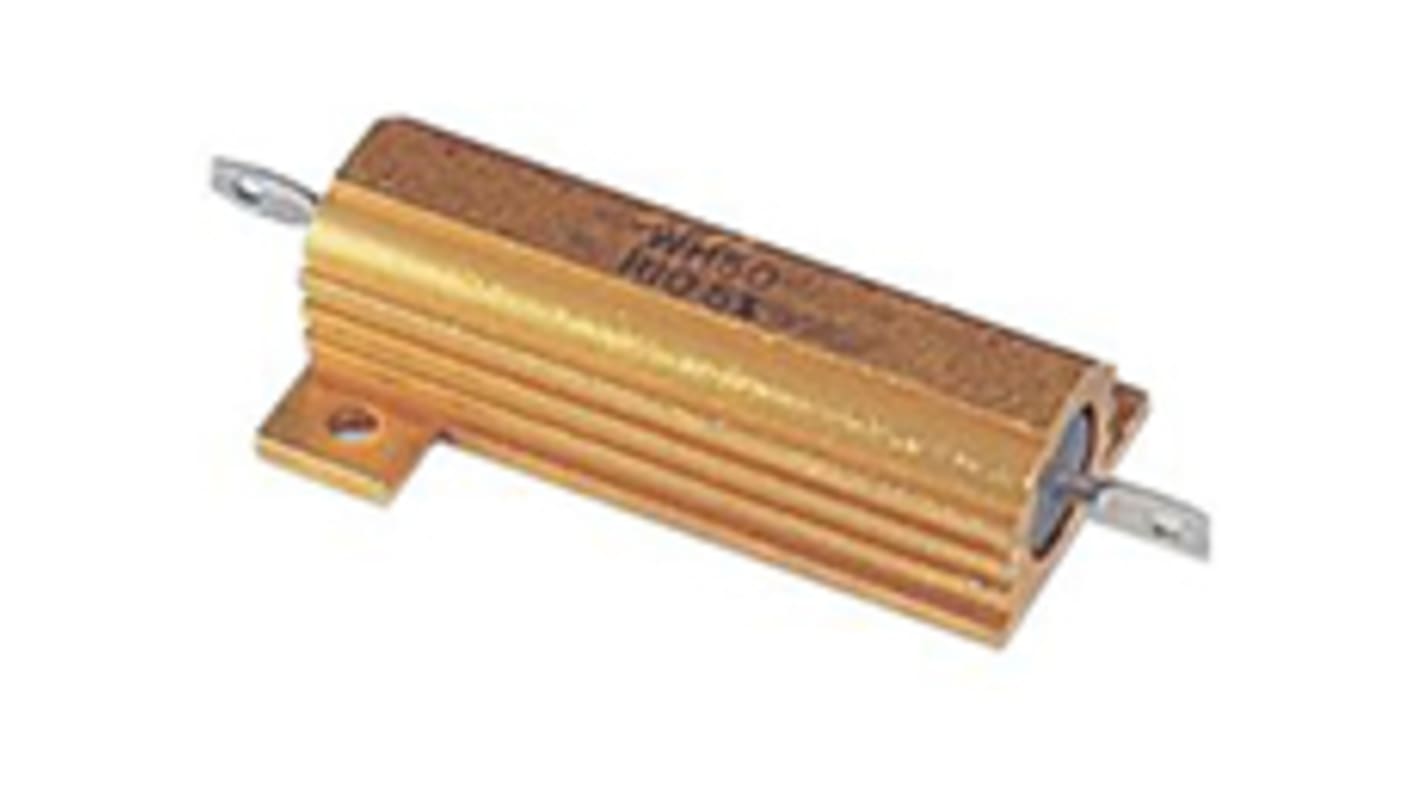

50 Watt RH050 Series ±1%
The Vishay RH050 series wirewound chassis mount resistor has a complete welded and moulded construction for total environmental protection in aluminium housing. These resistors mount directly onto a chassis to utilise heat-sink effect. This range of wirewound resistors offers high stability at conventional power ratings and flat marking surface for easy identification.
Features and Benefits
• Mounts on chassis to utilize heat-sink effect
• Moulded construction for total environmental protection
• High Stability <0.05% Year
• Resistance Tolerance 1%
• Moulded construction for total environmental protection
• High Stability <0.05% Year
• Resistance Tolerance 1%
Note
Power rating is based on resistor mounted on a 300x300x1.5mm aluminium panel; unmounted rating is 20W @ 25°C. See manufacturer's data for more information regarding power ratings.
Specifications
Attribute | Value |
|---|---|
| Resistance | 40Ω |
| Power Rating | 50W |
| Series | RH |
| Tolerance | ±1% |
| Technology | Wire Wound |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +250°C |
| Minimum Temperature Coefficient | -20ppm/°C |
| Maximum Temperature Coefficient | +20ppm/°C |
