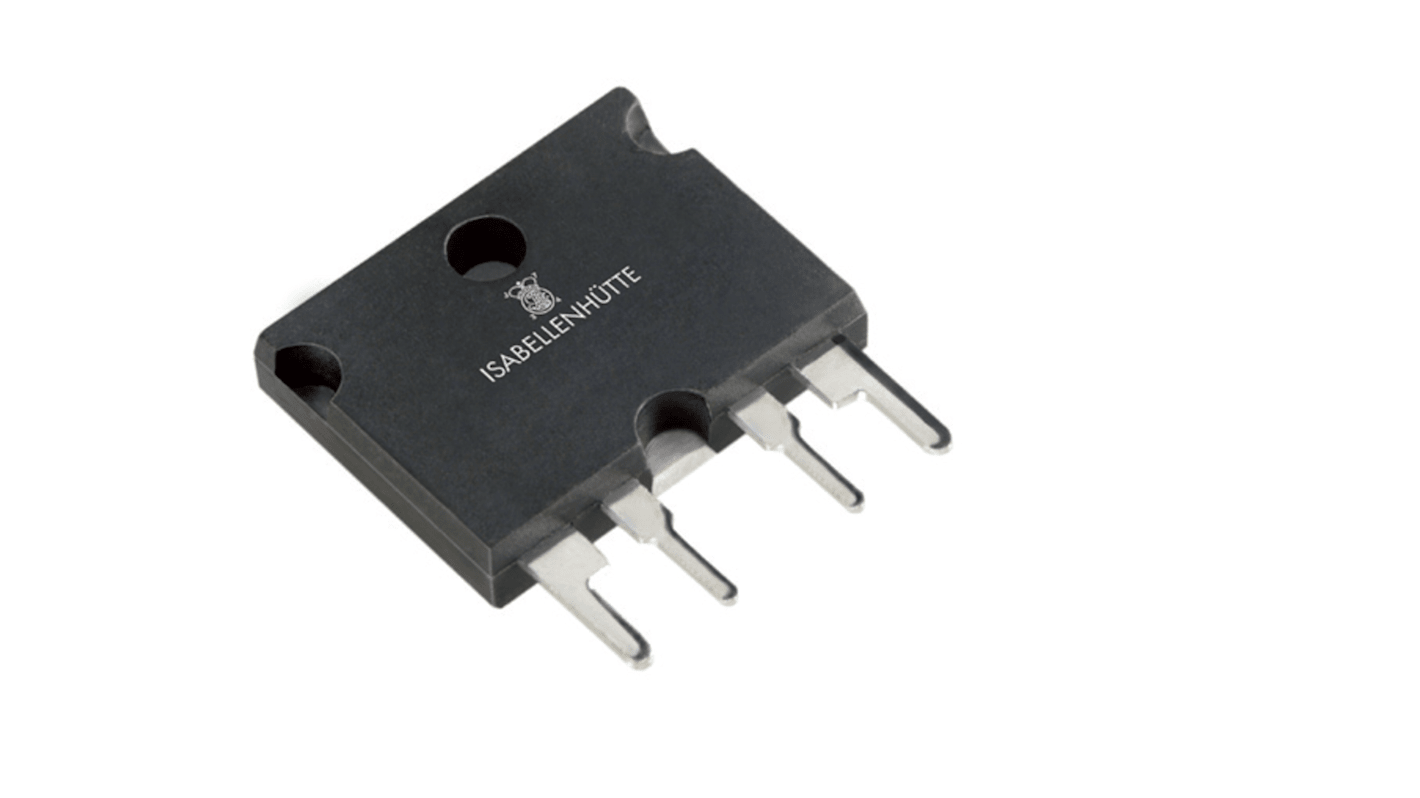

Isabellenhutte, 200 Ω 10 W Aluminium Precision Resistor ±0.5 %
- RS Stock No.:
- 210-7498
- Mfr. Part No.:
- PBV-R002-F1-0.5
- Brand:
- Isabellenhutte
Subtotal (1 tube of 25 units)*
£436.35
(exc. VAT)
£523.625
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tube* |
|---|---|---|
| 25 + | £17.454 | £436.35 |
*price indicative
- RS Stock No.:
- 210-7498
- Mfr. Part No.:
- PBV-R002-F1-0.5
- Brand:
- Isabellenhutte
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Isabellenhutte | |
| Resistance | 200Ω | |
| Product Type | Precision Resistor | |
| Power Rating | 10W | |
| Series | PBV | |
| Packaging | Tube | |
| Tolerance | ±0.5 % | |
| Temperature Coefficient | 20 to 60 ppm/K | |
| Technology | Aluminium | |
| Automotive Standard | No | |
| Termination Style | Pin | |
| Minimum Operating Temperature | -55°C | |
| Overall Length | 22.5mm | |
| Maximum Operating Temperature | 125°C | |
| Pin Count | 4 | |
| Overall Width | 4.45mm | |
| Overall Height | 20.7mm | |
| Standards/Approvals | RoHS 2011/65/EU | |
| Select all | ||
|---|---|---|
Brand Isabellenhutte | ||
Resistance 200Ω | ||
Product Type Precision Resistor | ||
Power Rating 10W | ||
Series PBV | ||
Packaging Tube | ||
Tolerance ±0.5 % | ||
Temperature Coefficient 20 to 60 ppm/K | ||
Technology Aluminium | ||
Automotive Standard No | ||
Termination Style Pin | ||
Minimum Operating Temperature -55°C | ||
Overall Length 22.5mm | ||
Maximum Operating Temperature 125°C | ||
Pin Count 4 | ||
Overall Width 4.45mm | ||
Overall Height 20.7mm | ||
Standards/Approvals RoHS 2011/65/EU | ||
The Isabellenhutte an 0.002Ω resistor from the PBV Series. Housed in a 4-pin case suitable for PCB mounting this resistor has been especially designed for use at low resistances, giving a component that delivers low temperature coefficient values and independence of the resistance value from consequences arising from the soldering of the component.
Excellent long-term stability
High pulse power rating 2J for 10ms
Torque max. 1Nm
Suitable for wave soldering
