Arcol, 500 mΩ 50 W Aluminium Chassis Mount Resistor ±5 %
- RS Stock No.:
- 186-0147
- Mfr. Part No.:
- HS50F R5 J
- Brand:
- Arcol
Bulk discount available
Subtotal (1 unit)*
£10.83
(exc. VAT)
£13.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 879 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £10.83 |
| 10 - 24 | £9.20 |
| 25 - 49 | £8.11 |
| 50 - 74 | £7.03 |
| 75 + | £6.51 |
*price indicative
- RS Stock No.:
- 186-0147
- Mfr. Part No.:
- HS50F R5 J
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Resistance | 500mΩ | |
| Product Type | Chassis Mount Resistor | |
| Power Rating | 50W | |
| Series | HS50F | |
| Package/Case | Aluminium | |
| Temperature Coefficient | 100 ppm/°C | |
| Tolerance | ±5 % | |
| Automotive Standard | No | |
| Technology | Aluminium | |
| Termination Style | Wire | |
| Overall Length | 49.1mm | |
| Maximum Operating Temperature | 200°C | |
| Overall Width | 14.2mm | |
| Standards/Approvals | RoHS, MIL 18546, IEC 115 | |
| Overall Height | 14.8mm | |
| Select all | ||
|---|---|---|
Brand Arcol | ||
Resistance 500mΩ | ||
Product Type Chassis Mount Resistor | ||
Power Rating 50W | ||
Series HS50F | ||
Package/Case Aluminium | ||
Temperature Coefficient 100 ppm/°C | ||
Tolerance ±5 % | ||
Automotive Standard No | ||
Technology Aluminium | ||
Termination Style Wire | ||
Overall Length 49.1mm | ||
Maximum Operating Temperature 200°C | ||
Overall Width 14.2mm | ||
Standards/Approvals RoHS, MIL 18546, IEC 115 | ||
Overall Height 14.8mm | ||

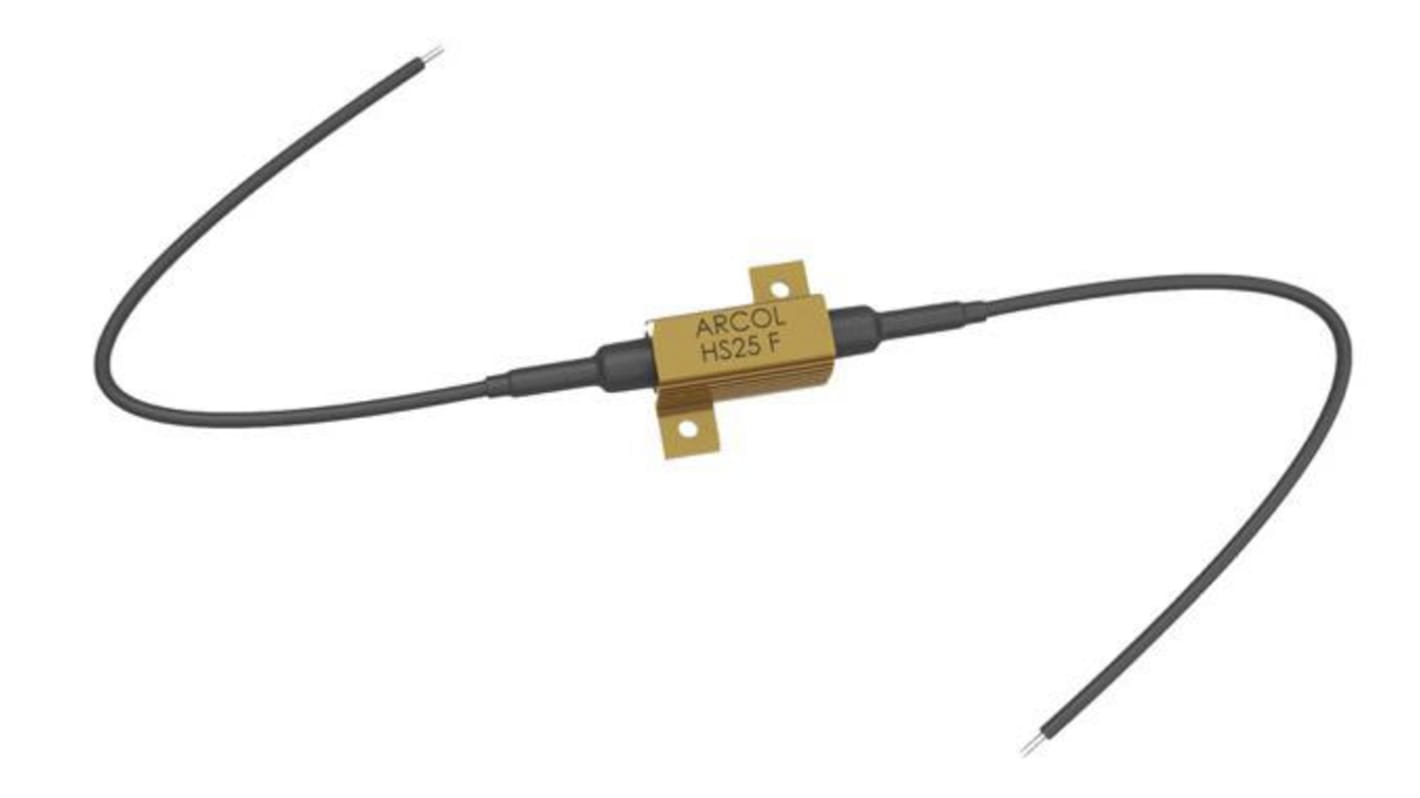

Leaded version of ARCOL’s aluminium housed resistor, comes with factory fitted cable terminations for ease of assembly into your application.
High Power to volume
Wound to maximise High Pulse Capability
200 mm flying lead terminations
Radox 1800V Traction Cable
Values from R005 to 70K
